Complete TBM Conveyor System

Complete TBM Conveyor System – Available Now in Europe

Mine Liquidators is offering an exceptionally well-maintained Tunnel Boring Machine (TBM) Conveyor System designed for long-distance underground tunneling, mining operations, and large-scale civil infrastructure projects. This turnkey system is immediately available and engineered for continuous heavy-duty performance.

⭐ Key Performance Specifications

• Conveying Capacity: Up to 485 tons per hour

• Belt Widths:

  • 800 mm – Tunnel conveyor

  • 1000 mm – Surface conveyor

• Belt Speed: 2.75 – 3.25 m/s

• Tunnel Length: Originally designed for approx. 13.5 km

• Drive Power:

  • 1540 kW installed on tunnel conveyor

  • 132 kW installed on surface conveyor

• Steel Cord Belt:

  • Type: EN14973-A flame-resistant grade

  • Total length: approx. 26.8 km

• Manufactured With: Siemens Flender drive technology

🔧 Included Components

This complete TBM conveyor package includes all major mechanical and electrical systems required for setup and operation:

• Main drive stations

• Booster drive stations

• Tail drive units

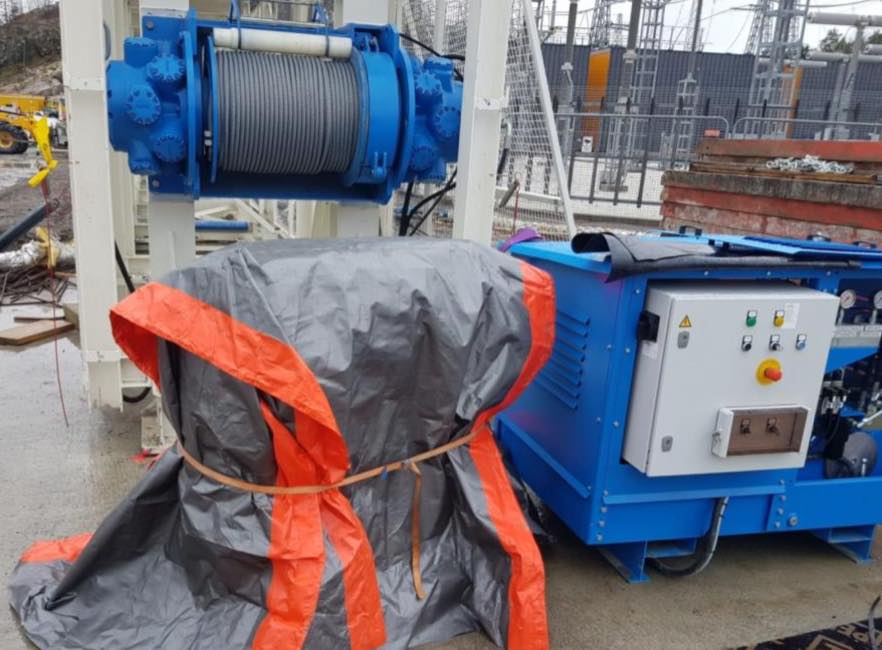

• Belt storage unit with hydraulic winch

• Belt transfer station

• Electrical control container

• High-quality steel cord belt system

• Complete structural and mechanical framework

This system is engineered for long-distance tunneling with maximum uptime, reliability, and energy efficiency.

🌍 Ideal Applications

This turnkey conveyor system is perfectly suited for:

• TBM tunnel excavation

• Hard-rock and soft-ground tunneling

• Underground mining operations

• Major civil infrastructure projects

• Large-scale conveyor replacement or expansion

📍 Location

Europe — ready for inspection and transport.

📞 Contact for Full Technical Documentation

For complete specifications, detailed photos, engineering files, and pricing:
📧 shanewade@mineliquidators.com

 +1 (618) 751-0838
🌐 www.mineliquidators.com

⭐ Why Choose Mine Liquidators?

With decades of global experience, Mine Liquidators specializes in sourcing high-quality used mining and tunneling equipment, delivering exceptional value and worldwide logistics support. This TBM Conveyor System is one of the highest-capacity and longest-distance packages available on the market today.
