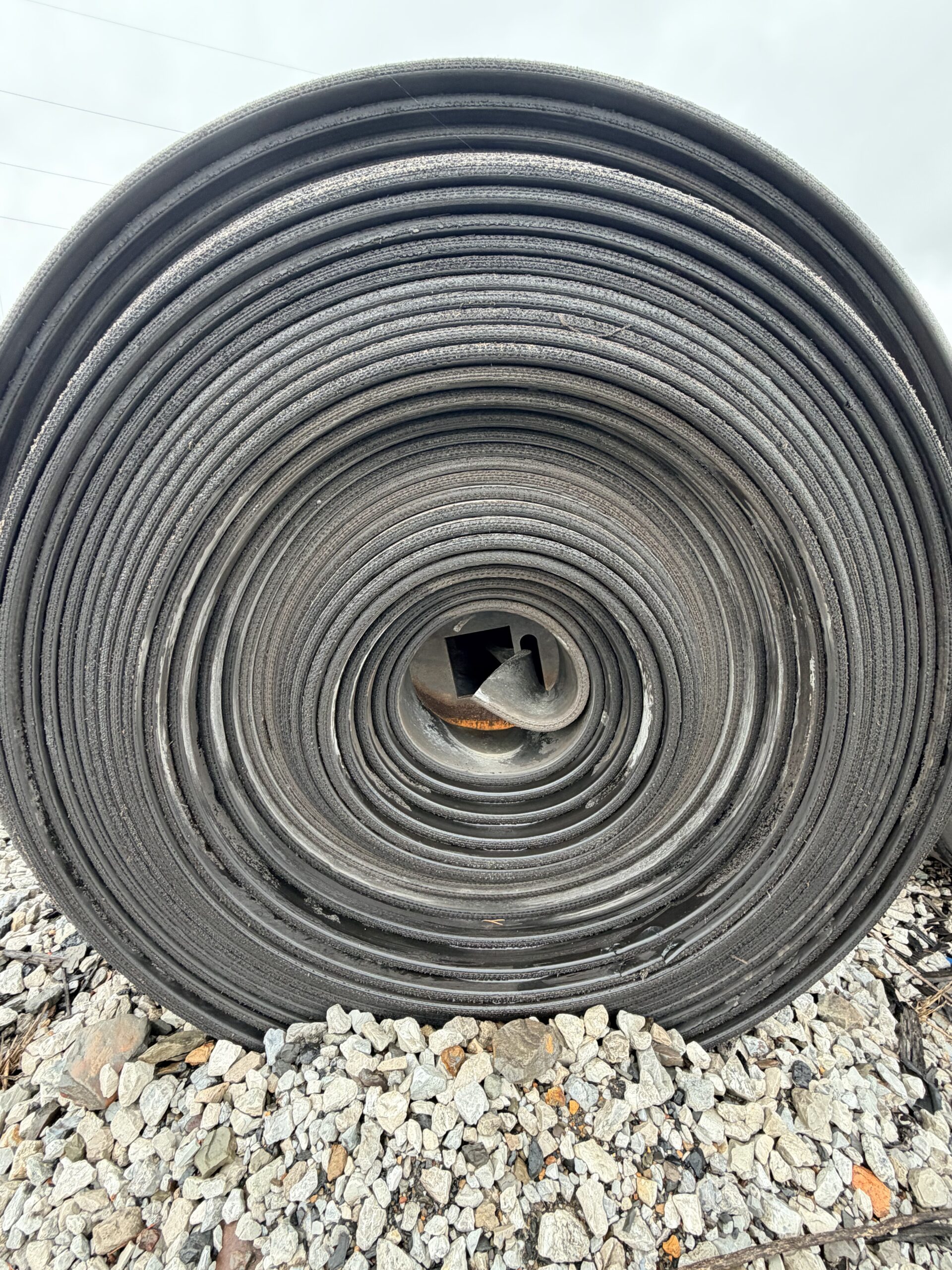

Continental Conveyor Belt – 48” & 60” MSHA Part 14 Underground Belt

Mine Liquidators currently has a large inventory of Continental conveyor belting available from liquidation, engineered for underground coal mining and heavy-duty material conveying applications.

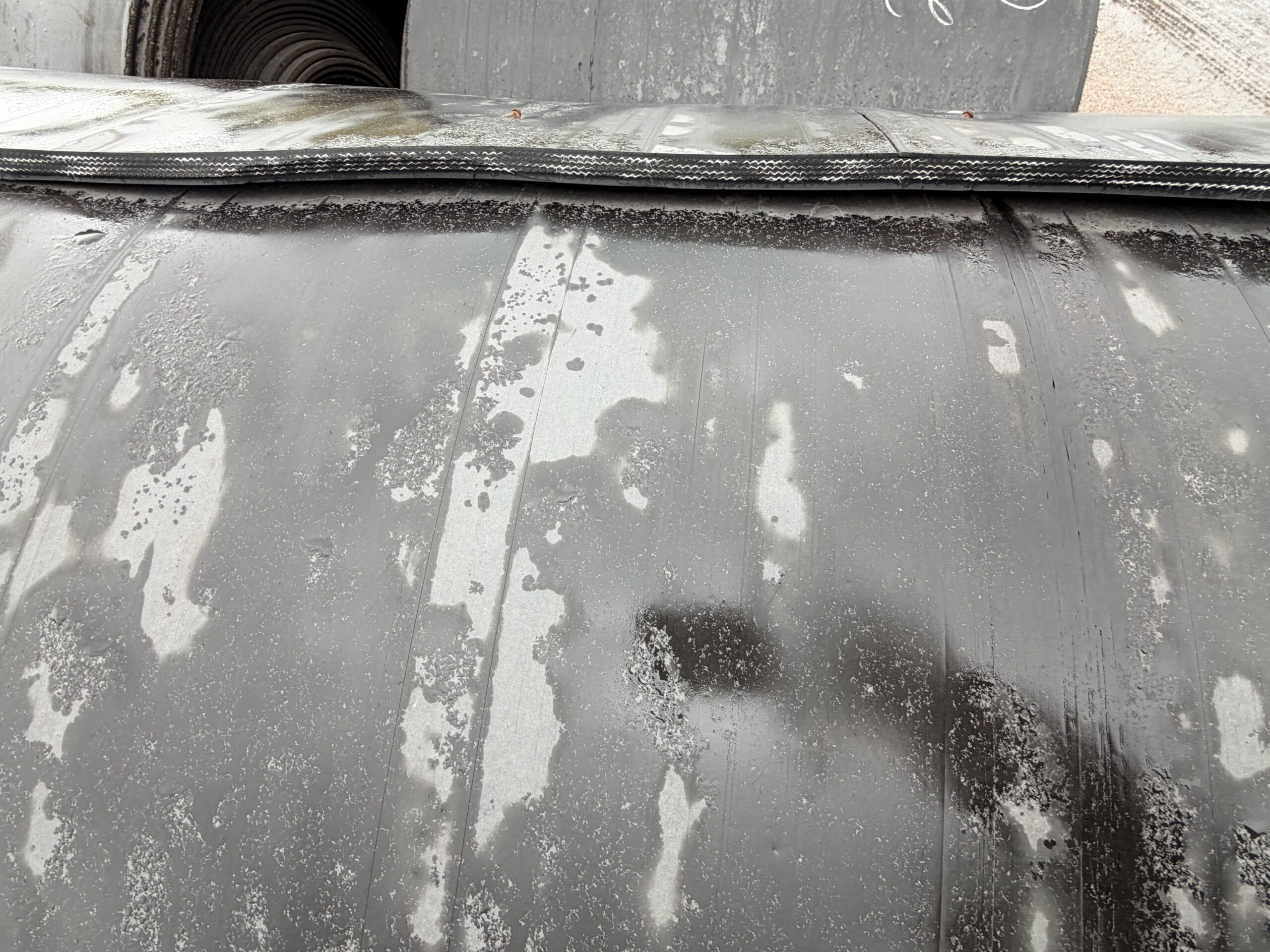

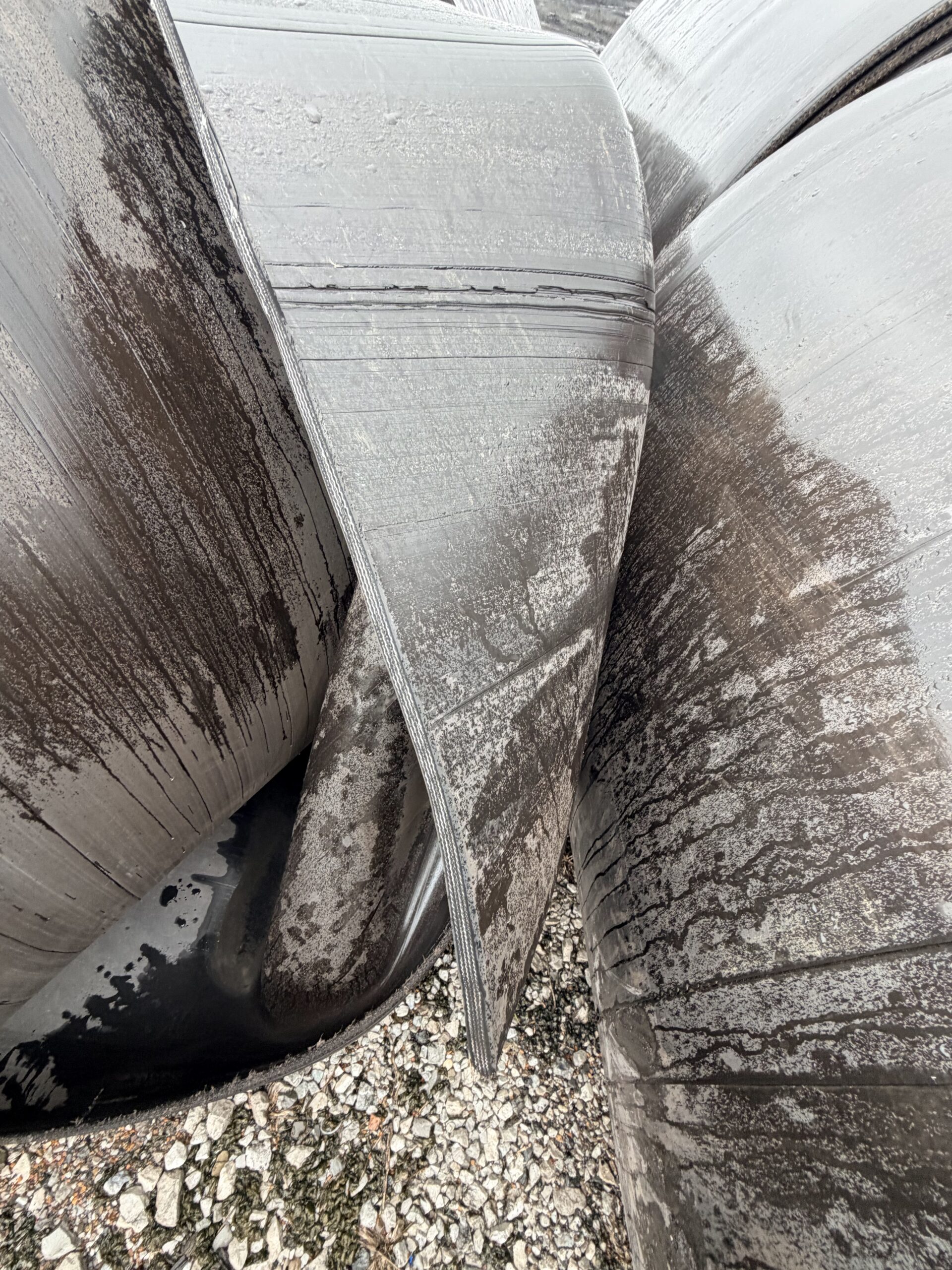

This belt is Continental PLYLON PLUS – SHIELD ARMA TOUGH, designed specifically for high-abrasion underground environments and manufactured to meet MSHA CFR Part 14 (B.E.L.T.) flame resistance standards.

The ARMA TOUGH compound provides approximately 65% greater abrasion resistance than standard SHIELD compounds, making this belting ideal for slope belts, longwall conveyors, and other demanding underground conveying systems.

Mine Liquidators specializes in large-lot conveyor belting from mine and plant liquidations, allowing buyers to secure significant volumes at aggressive pricing compared to traditional suppliers.

Belt Specifications

Manufacturer: Continental
Belt Type: PLYLON PLUS – SHIELD ARMA TOUGH
Belt Rating: 1000 PIW

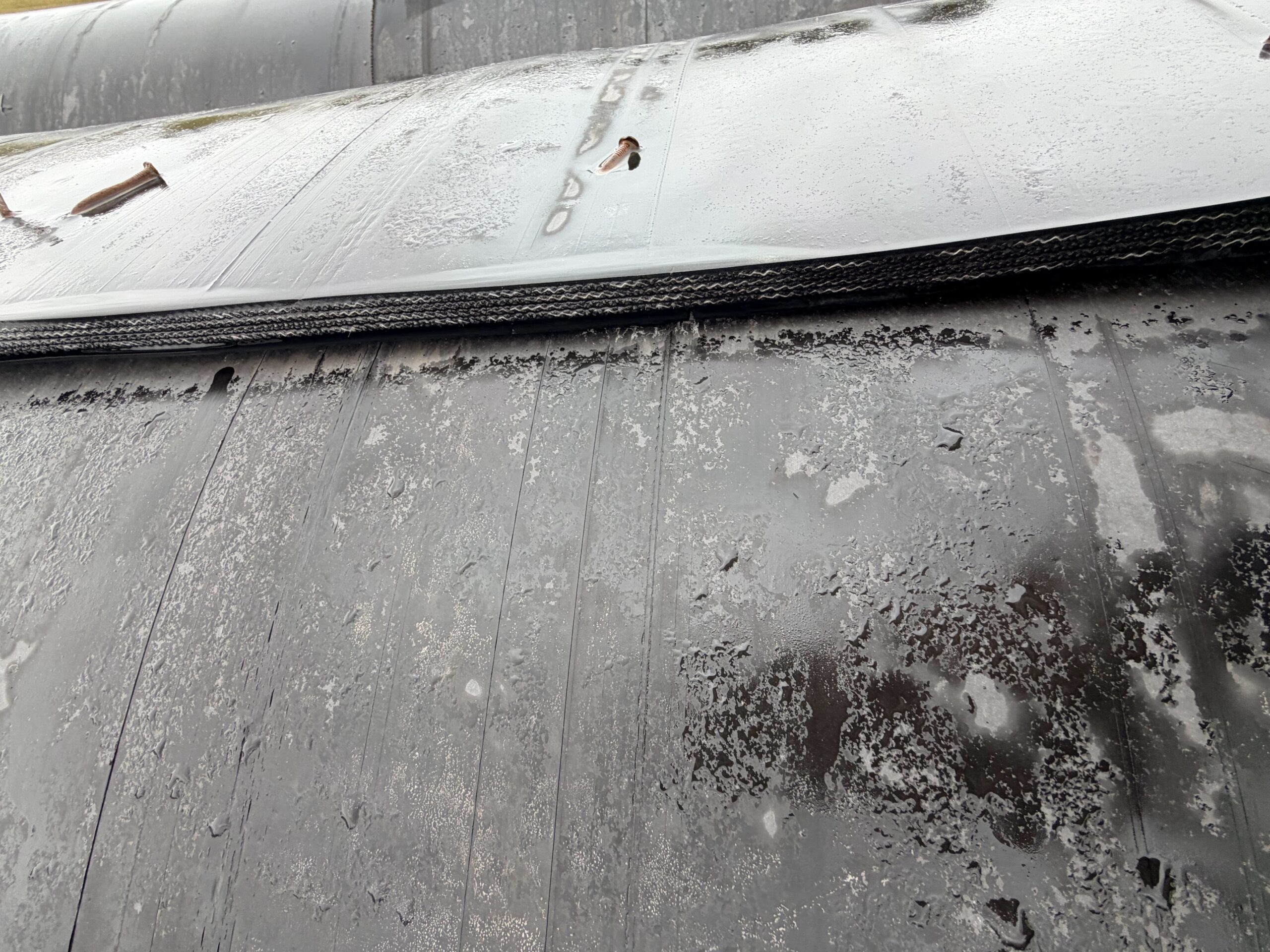

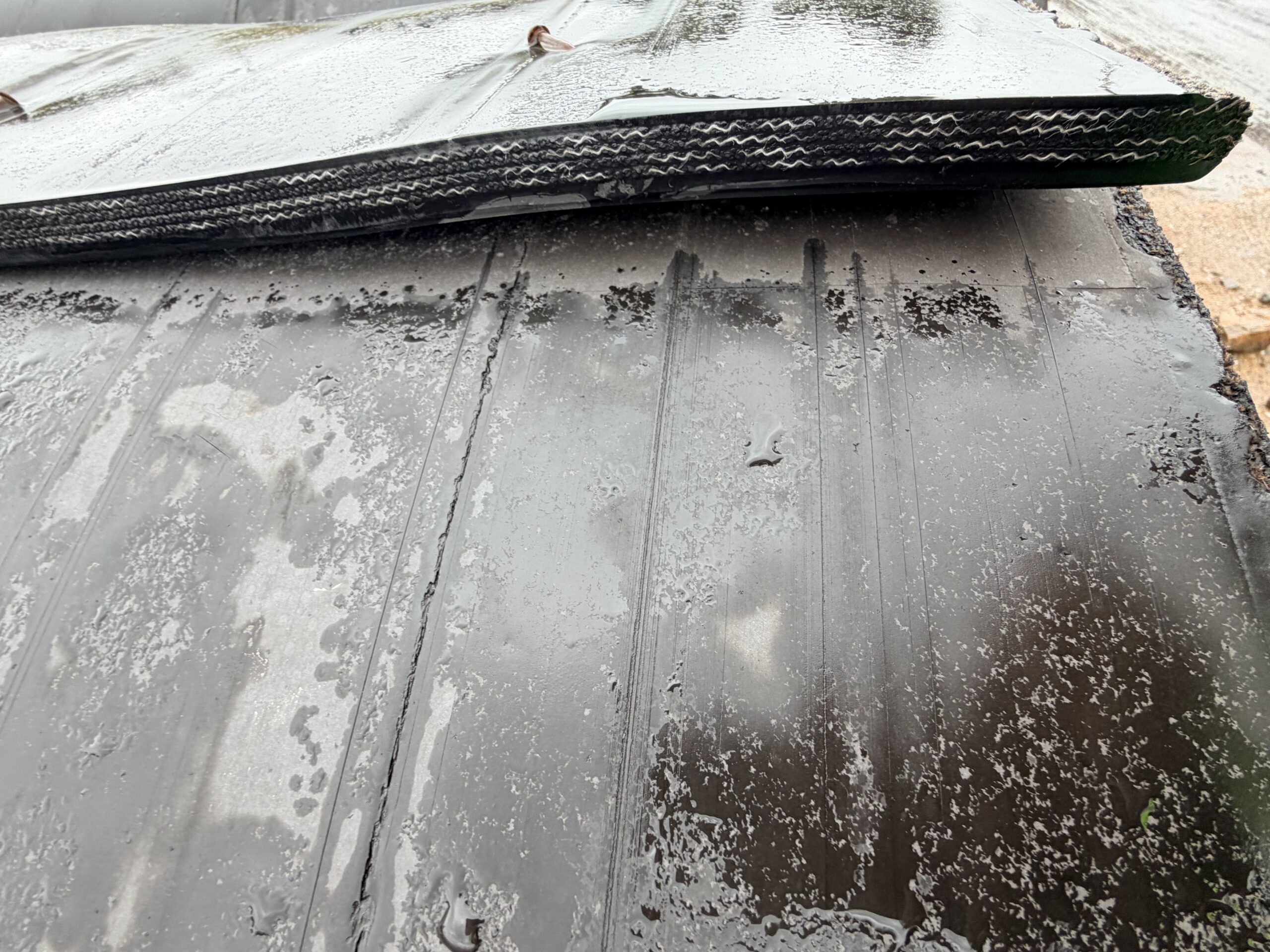

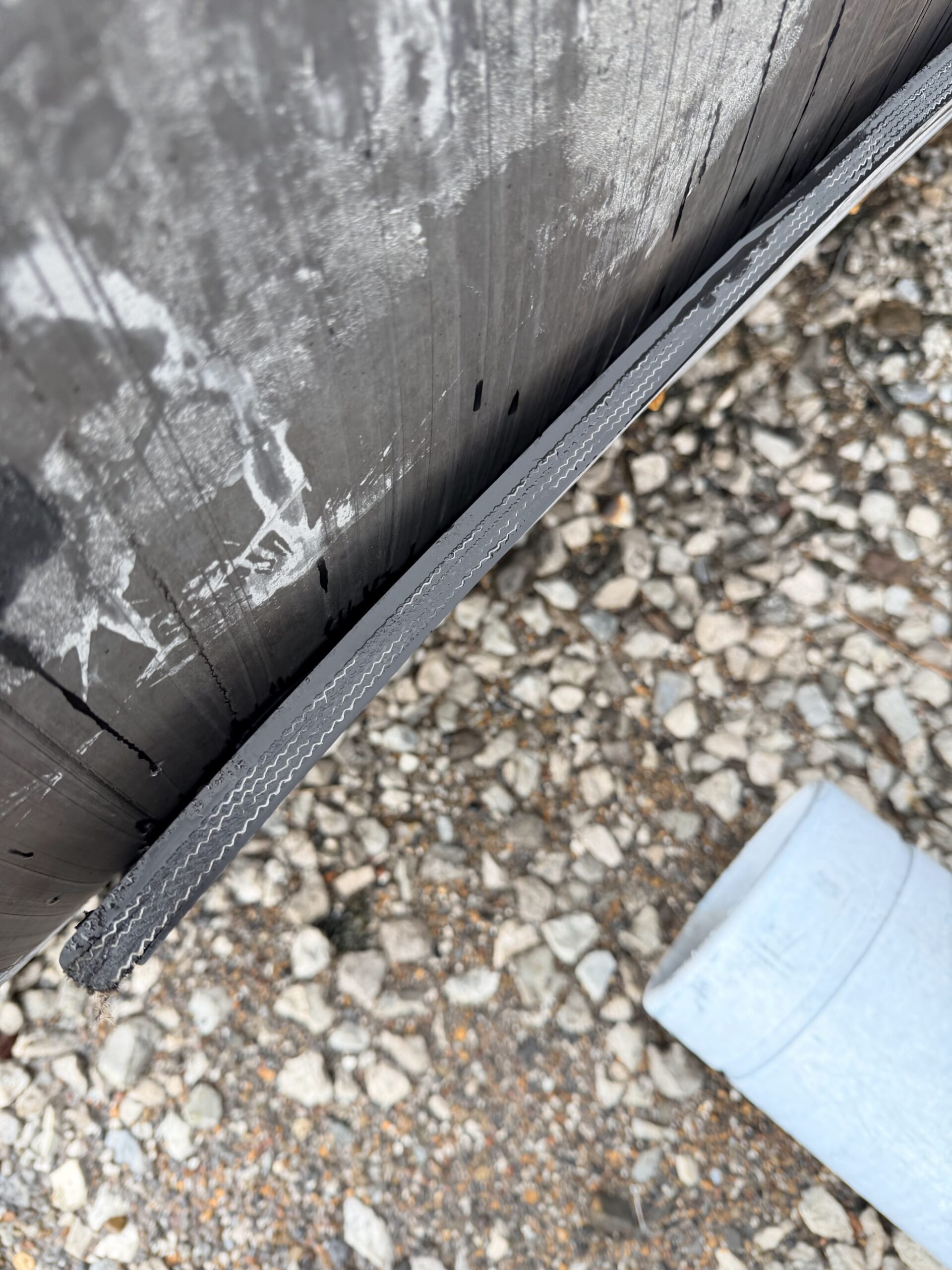

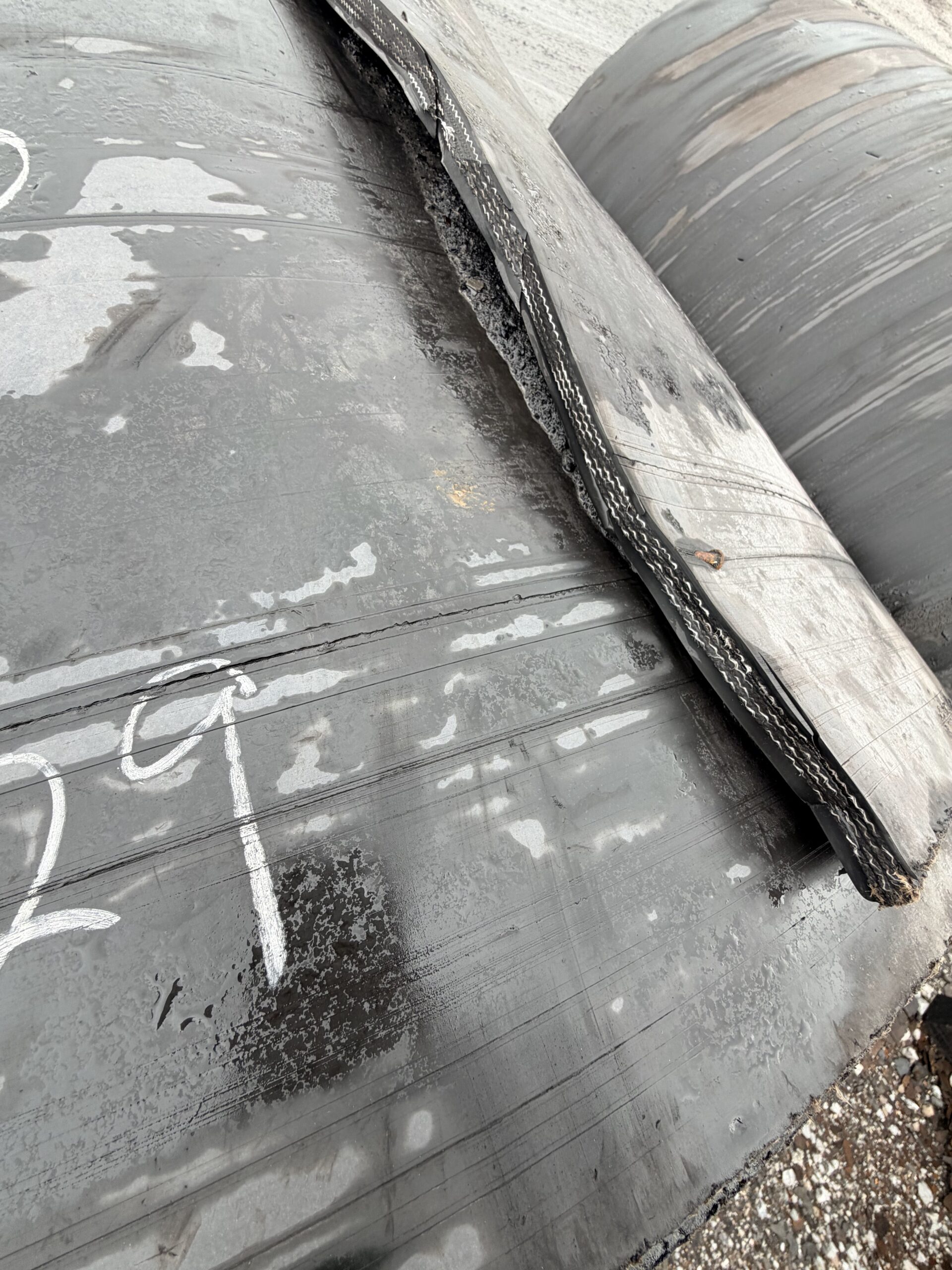

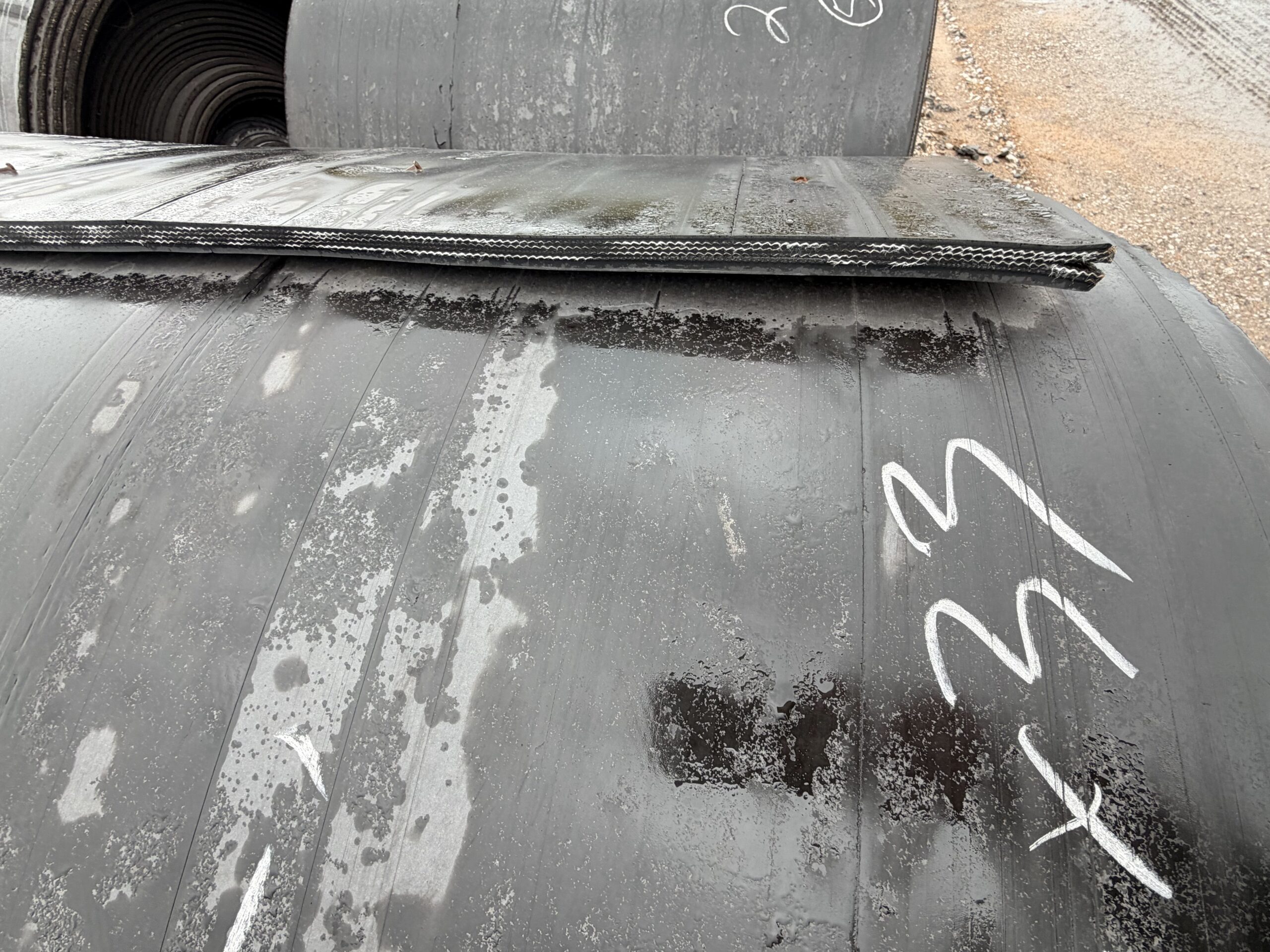

Construction: 4 Ply
Covers: 1/4” x 1/8”
Compound: FR Nitrile
MSHA Approval: CFR Part 14 (B.E.L.T.)
Weave Pattern: 3/1 Double-Face Twill

Physical Properties

• Tensile Strength: 2300 PSI

• Elongation: 470%

• DIN Abrasion: 130 cu.mm

• Hardness: 62 Shore A

Temperature Range

• Low Temperature: -30°F

• High Temperature: 150°F

Belt Performance

• Ultimate Tensile Strength: 9050 PIW

• Rip Strength: 3890 lbs

• Longitudinal Tear: 1620 lbs

• Transverse Tear: 2090 lbs

Available Inventory

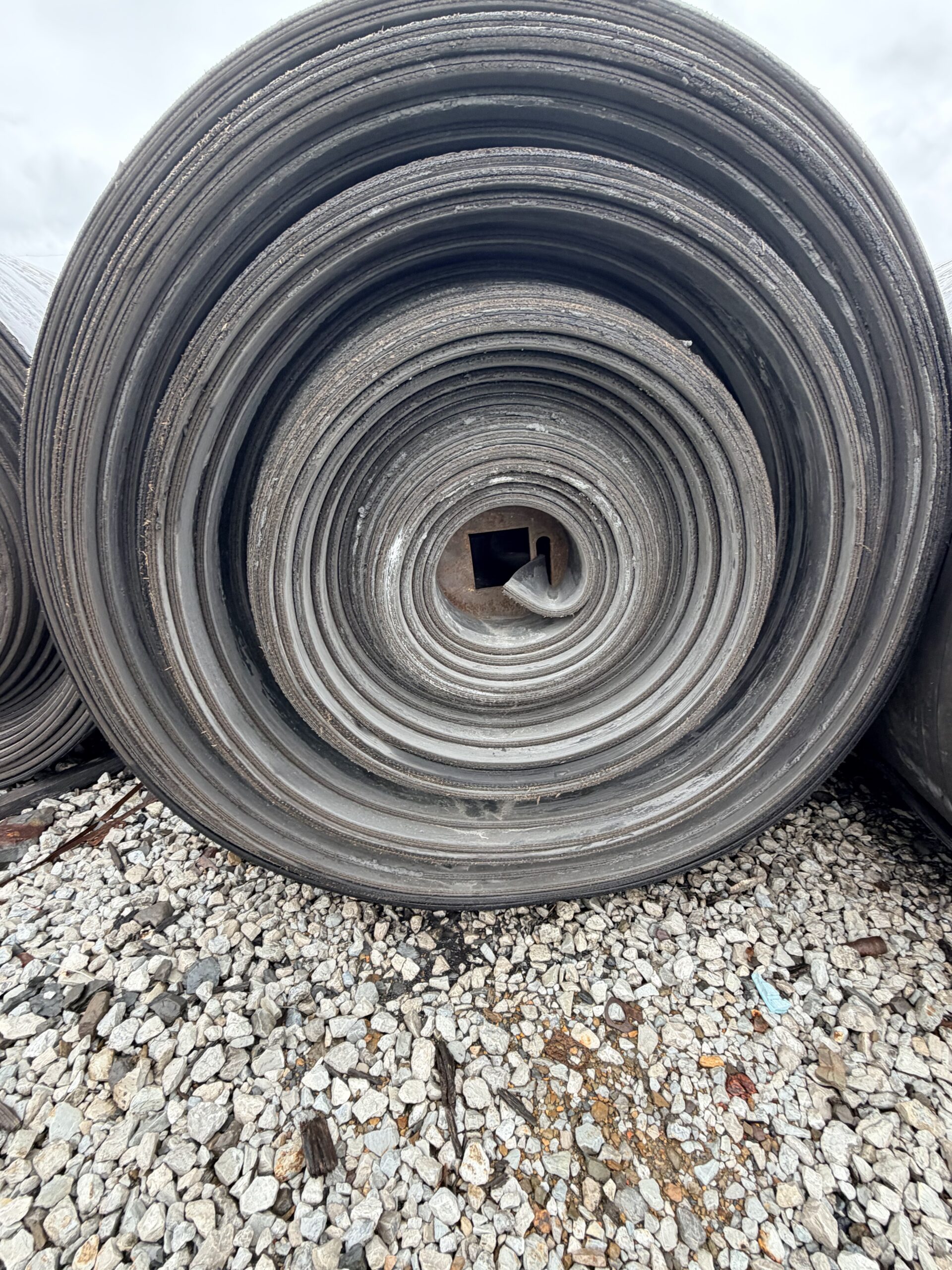

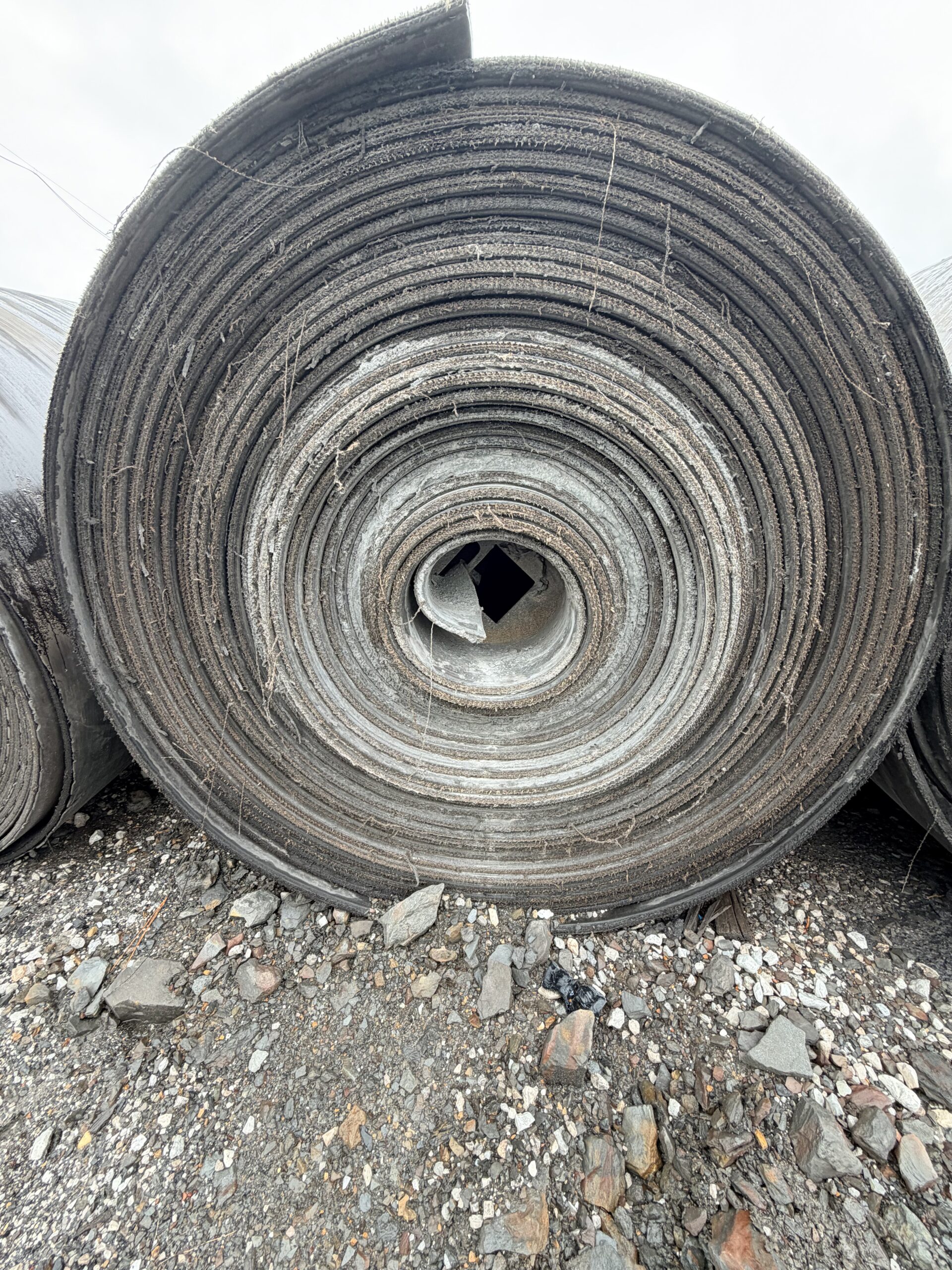

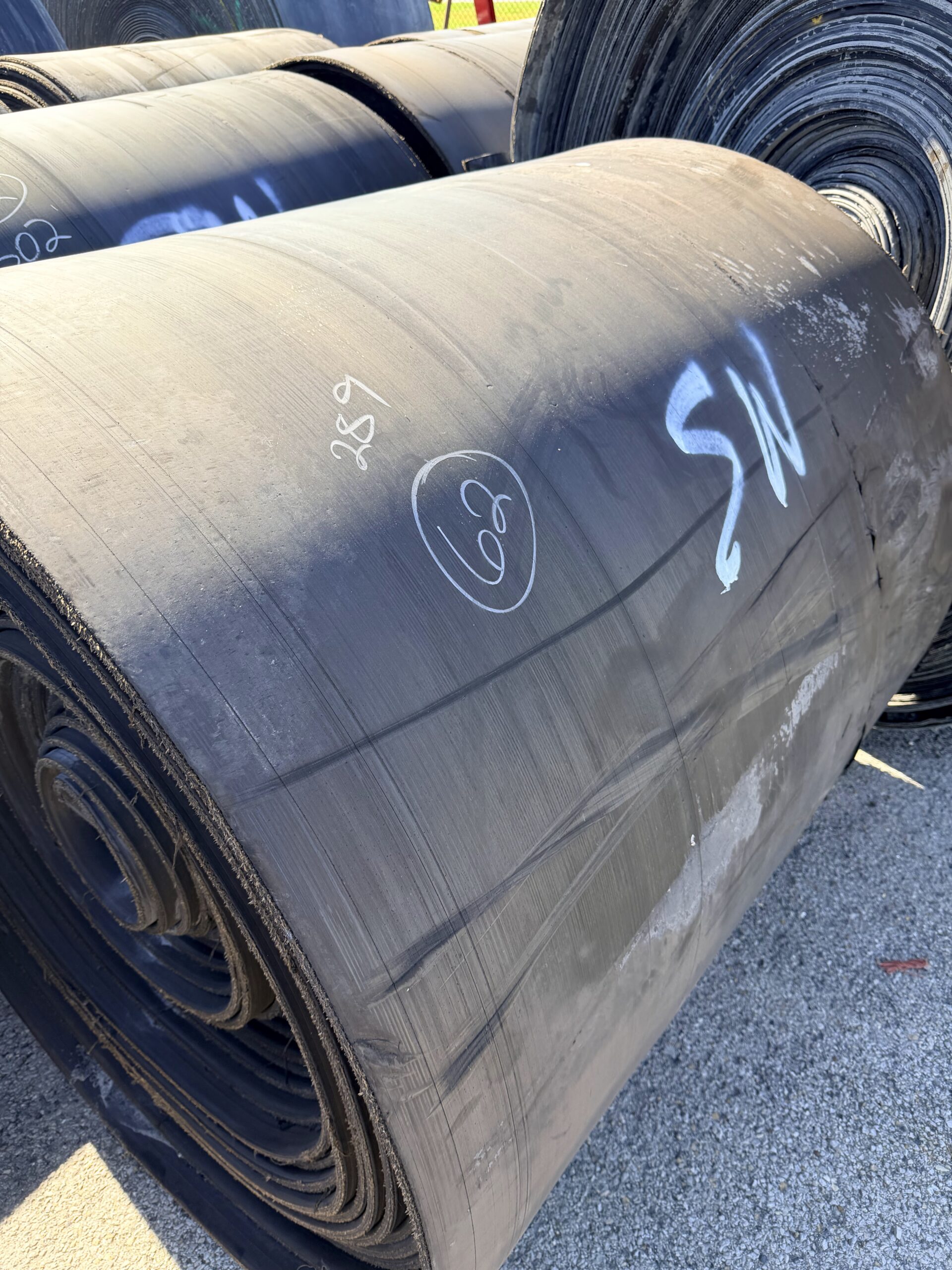

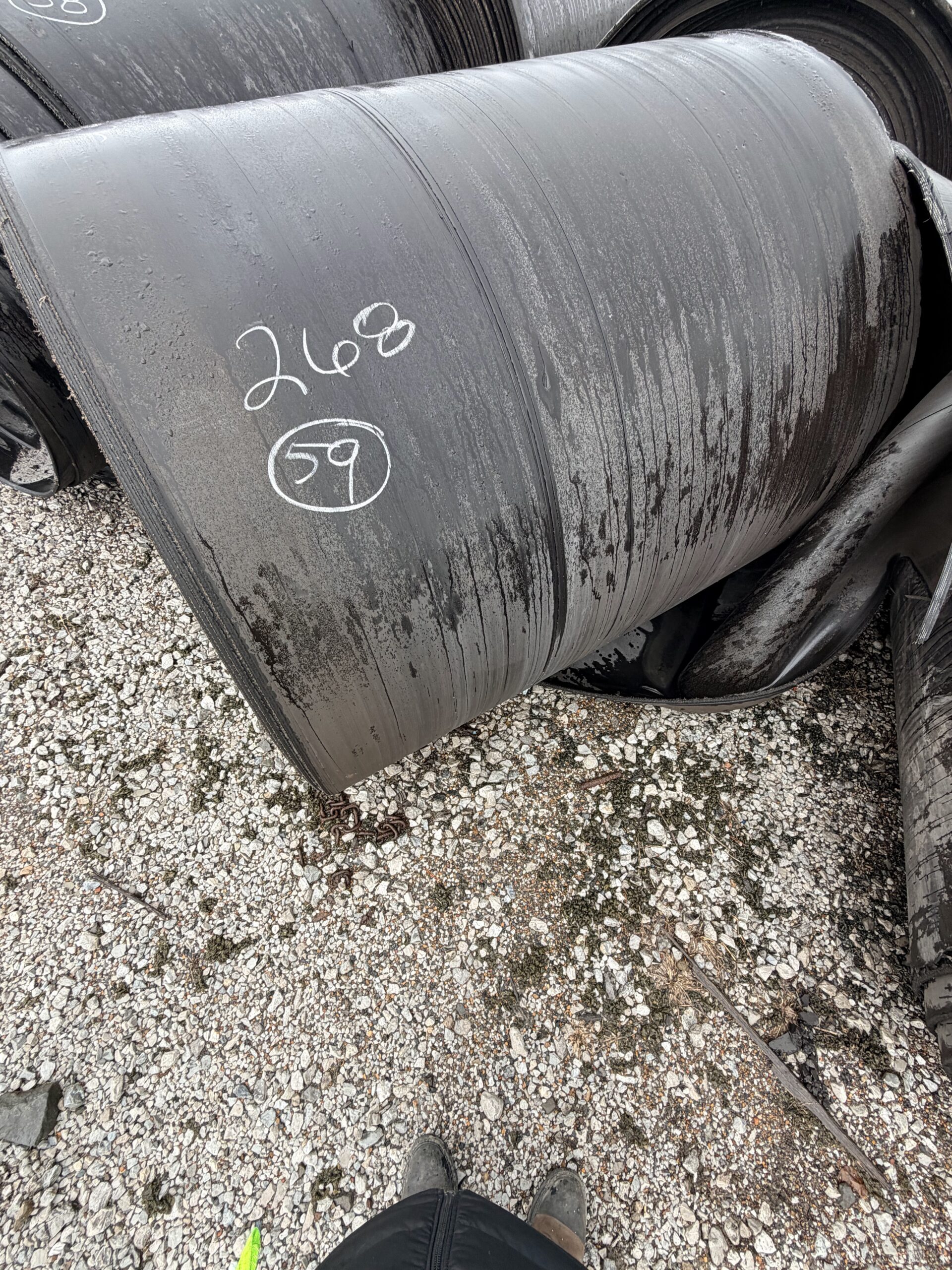

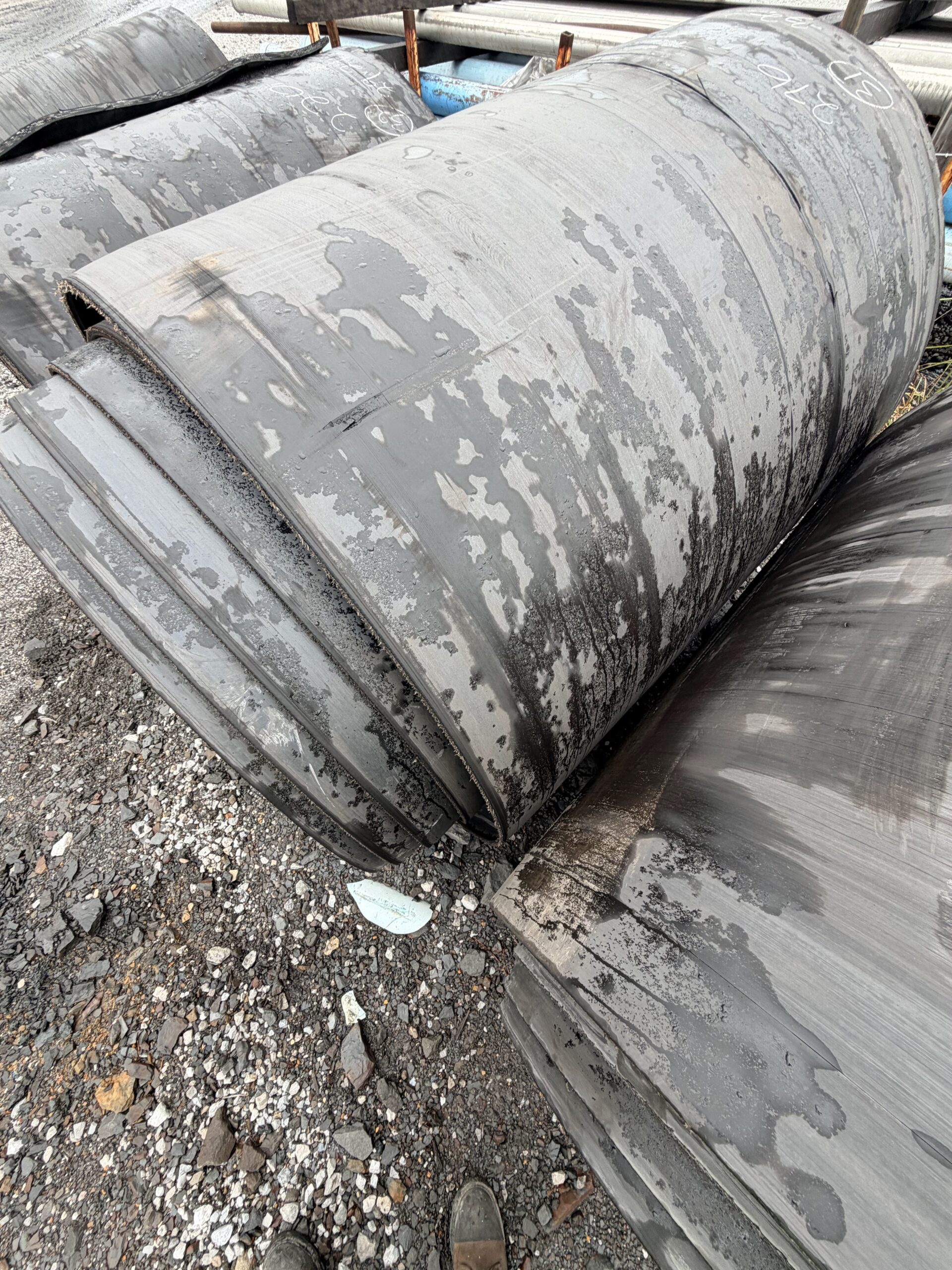

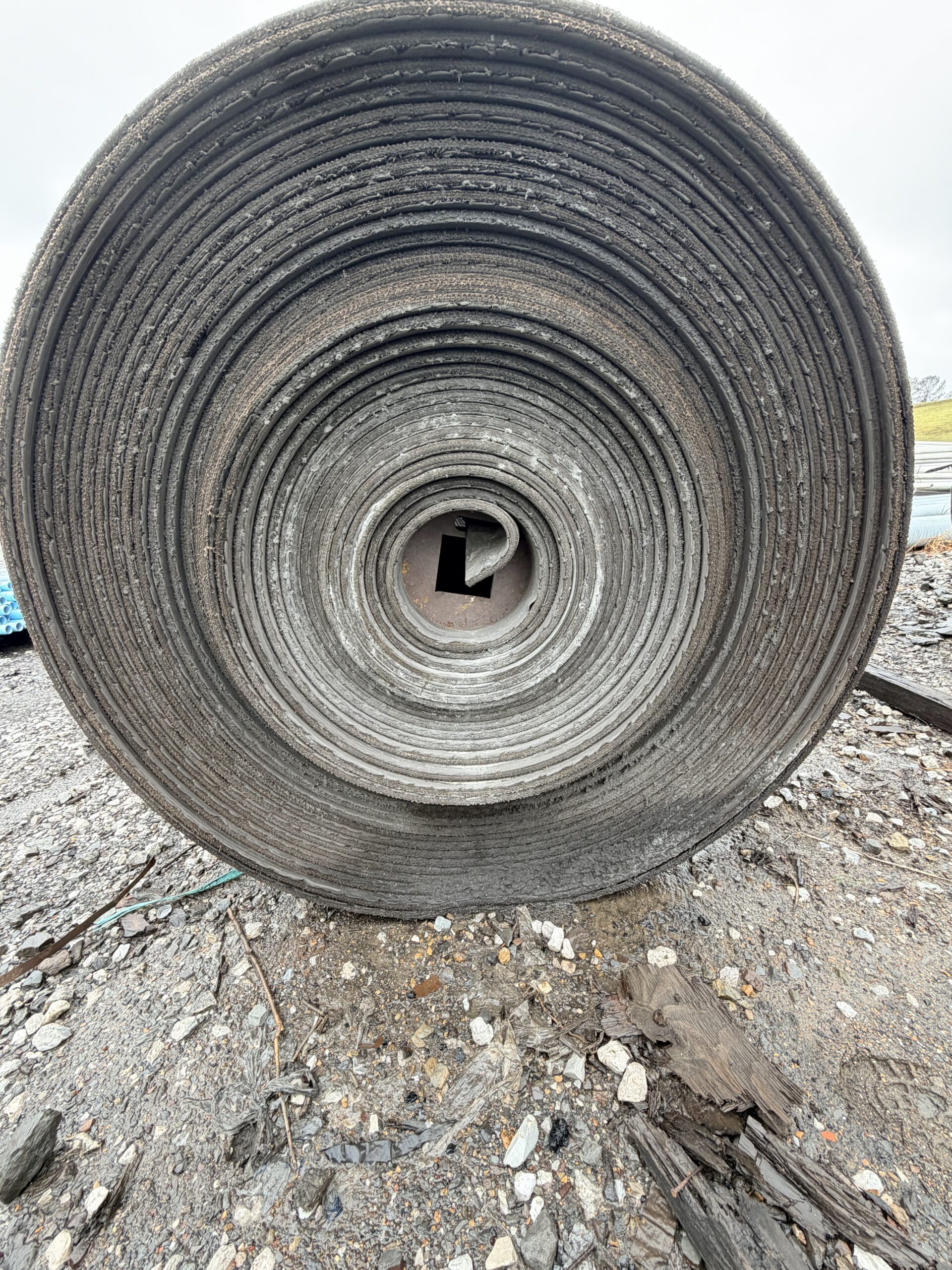

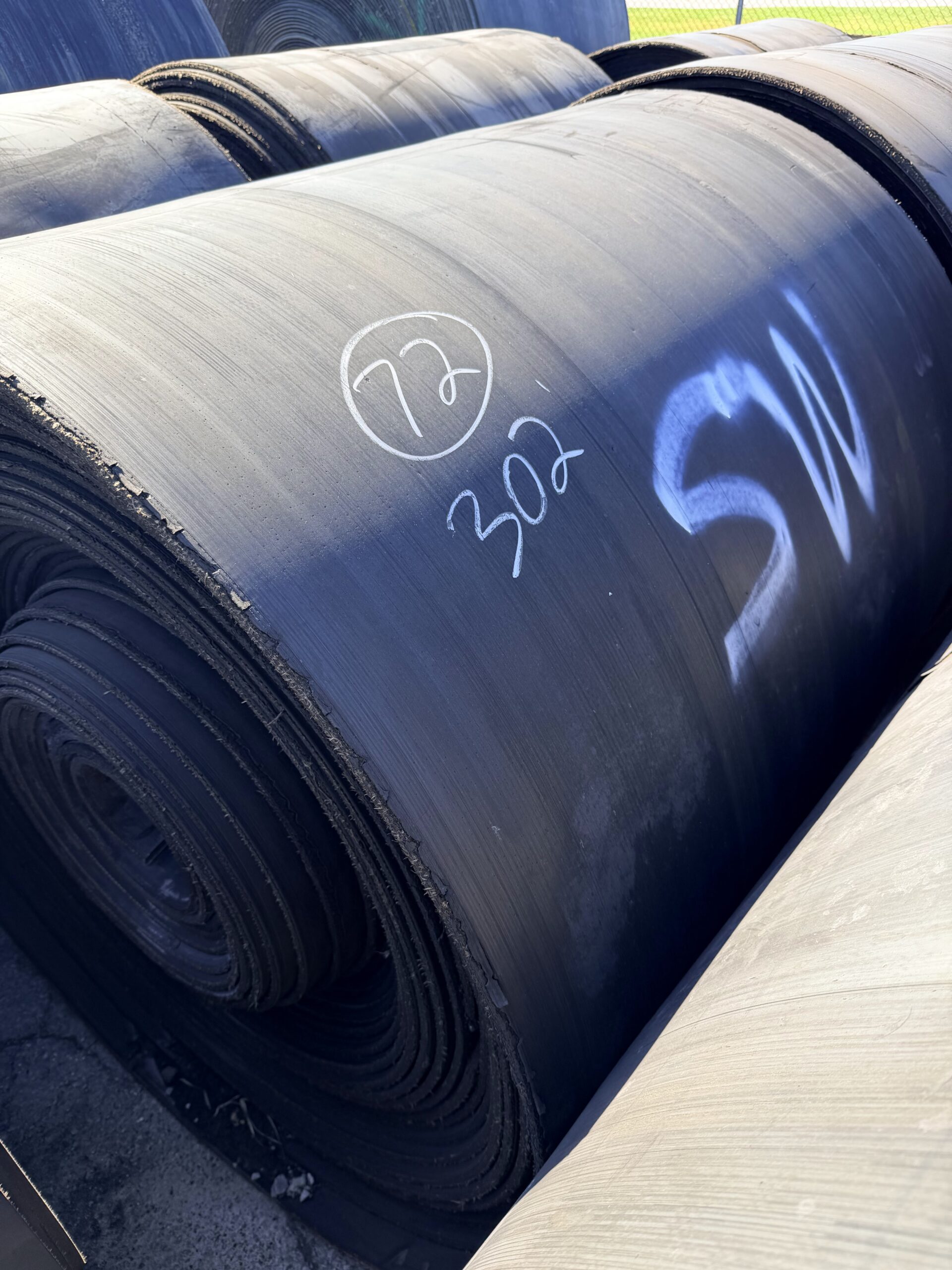

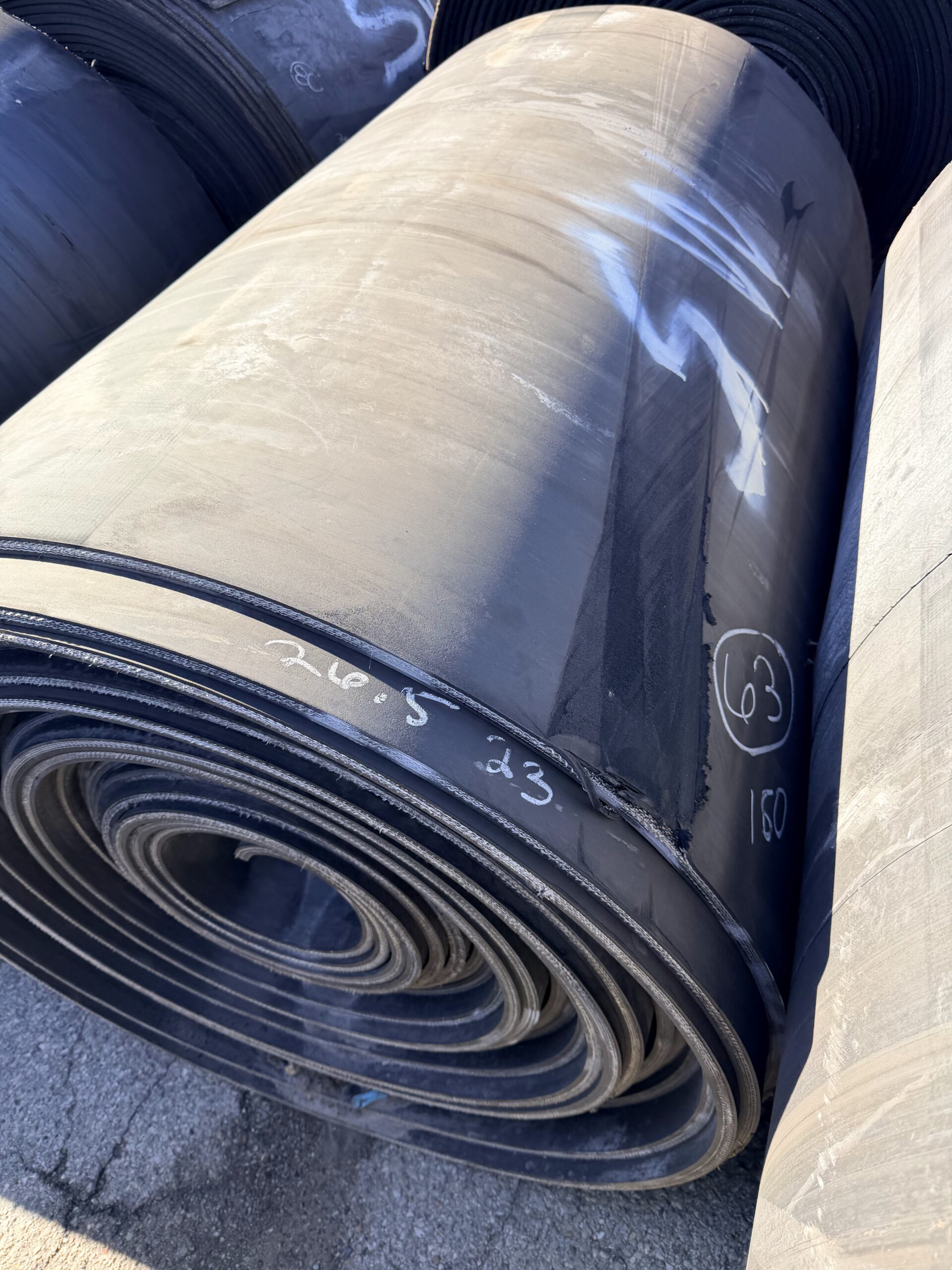

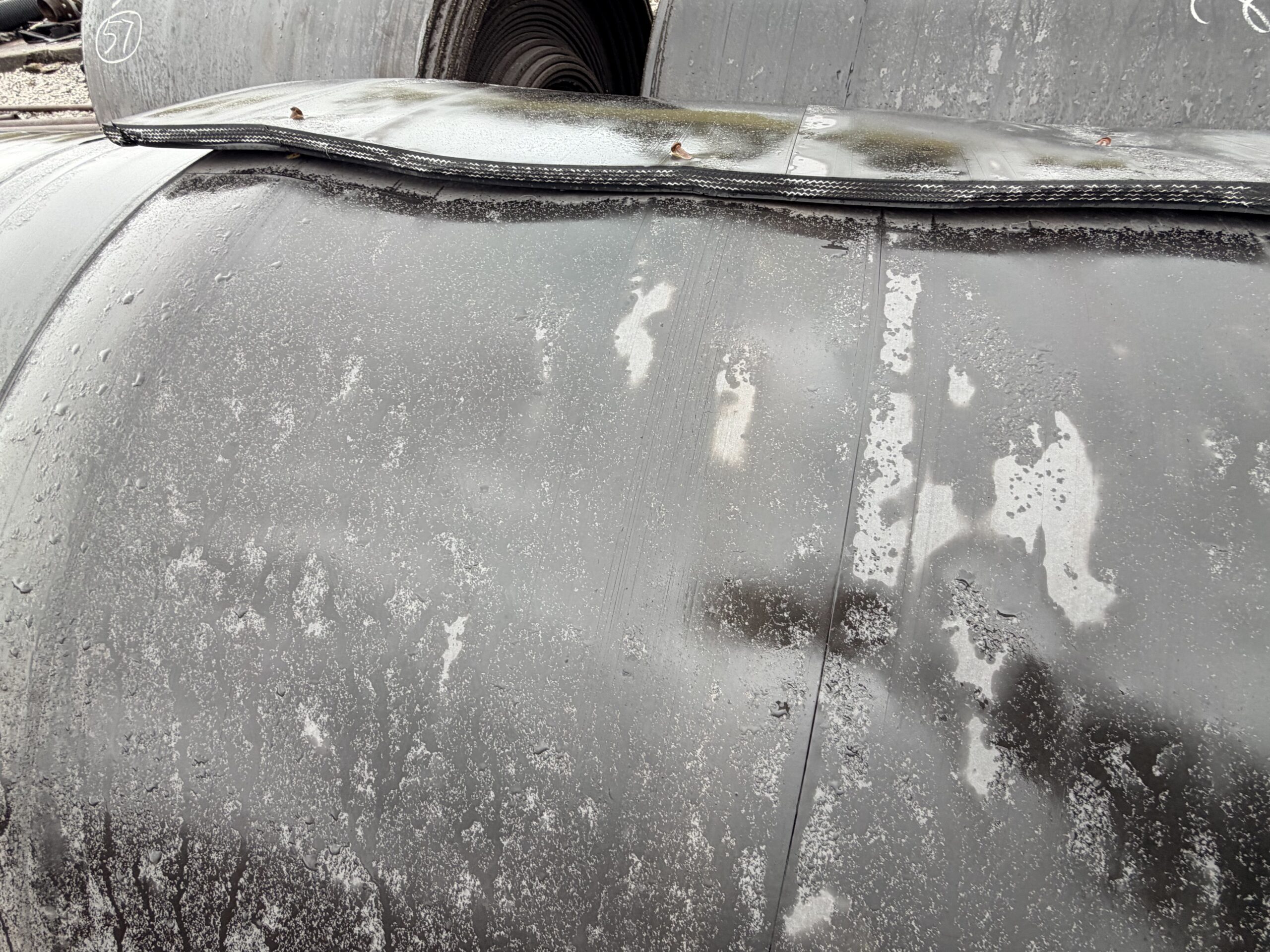

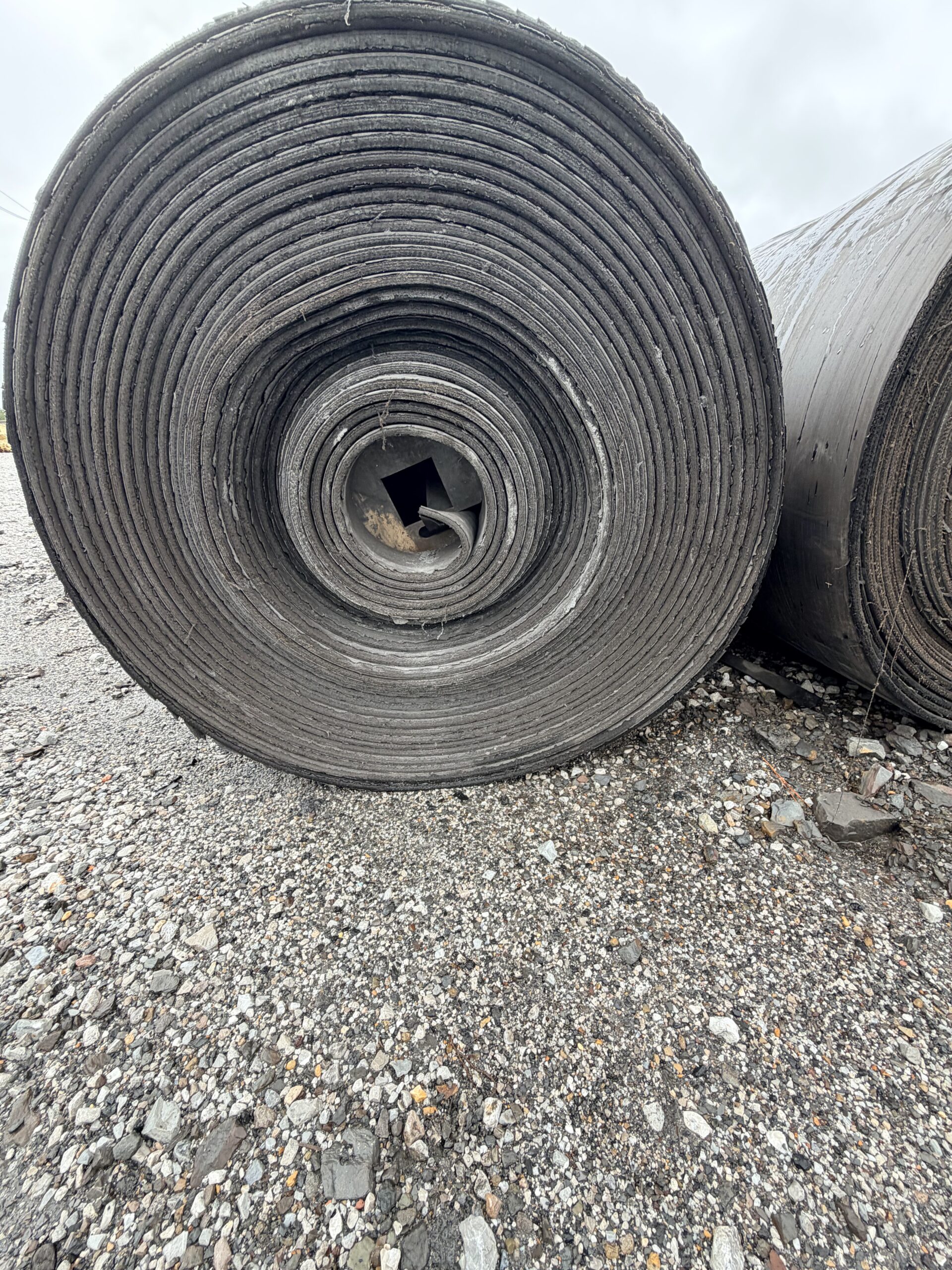

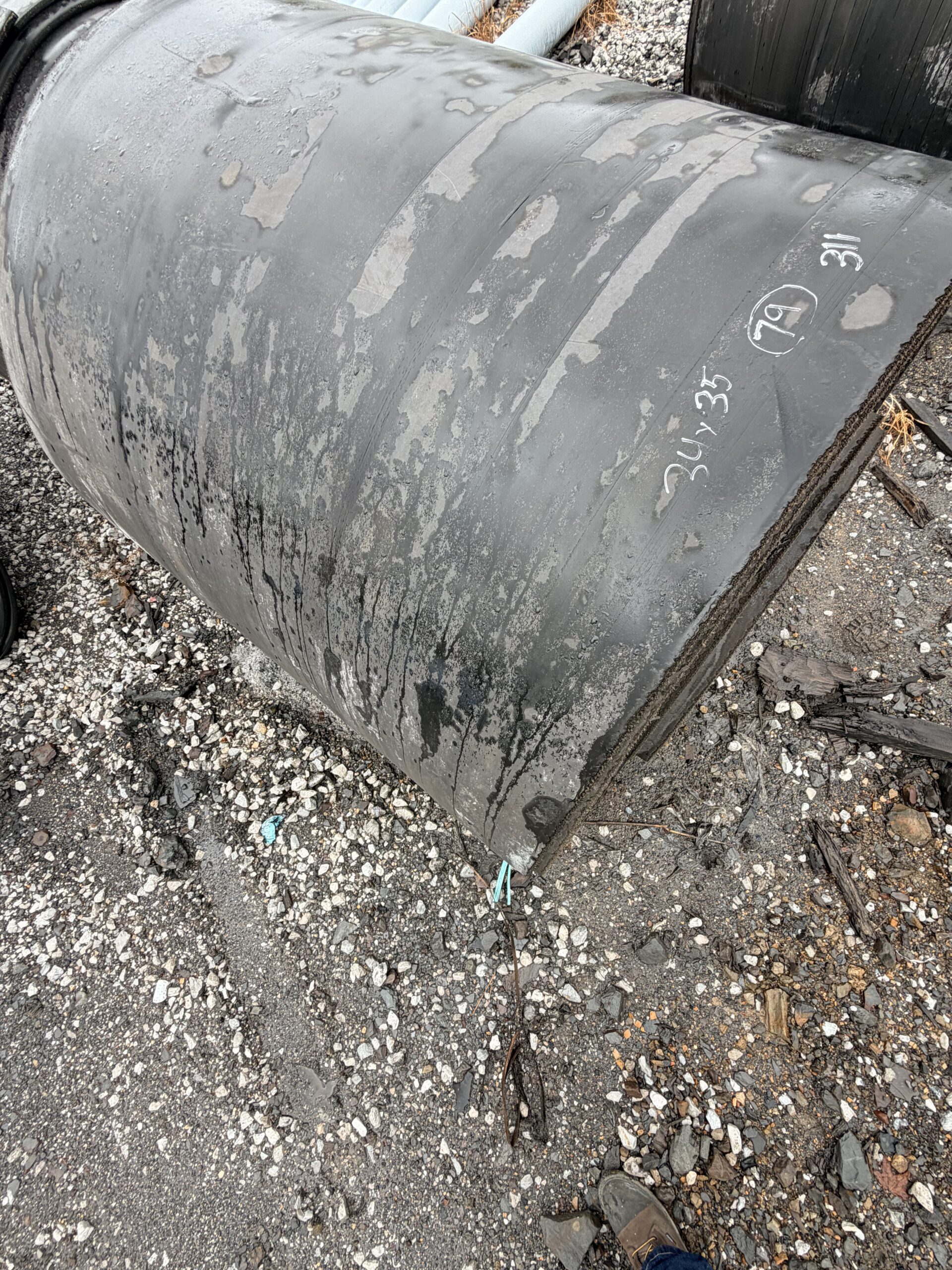

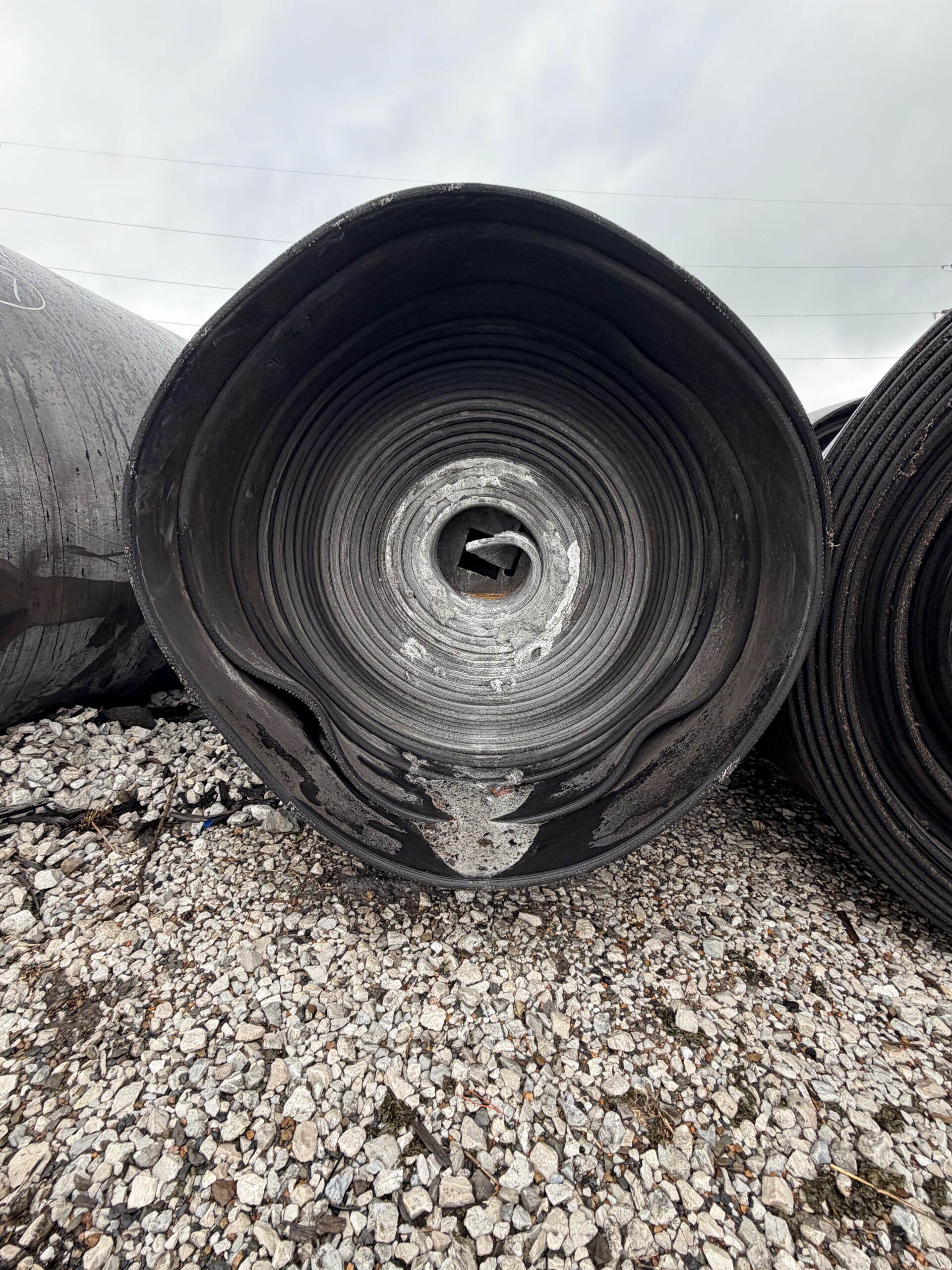

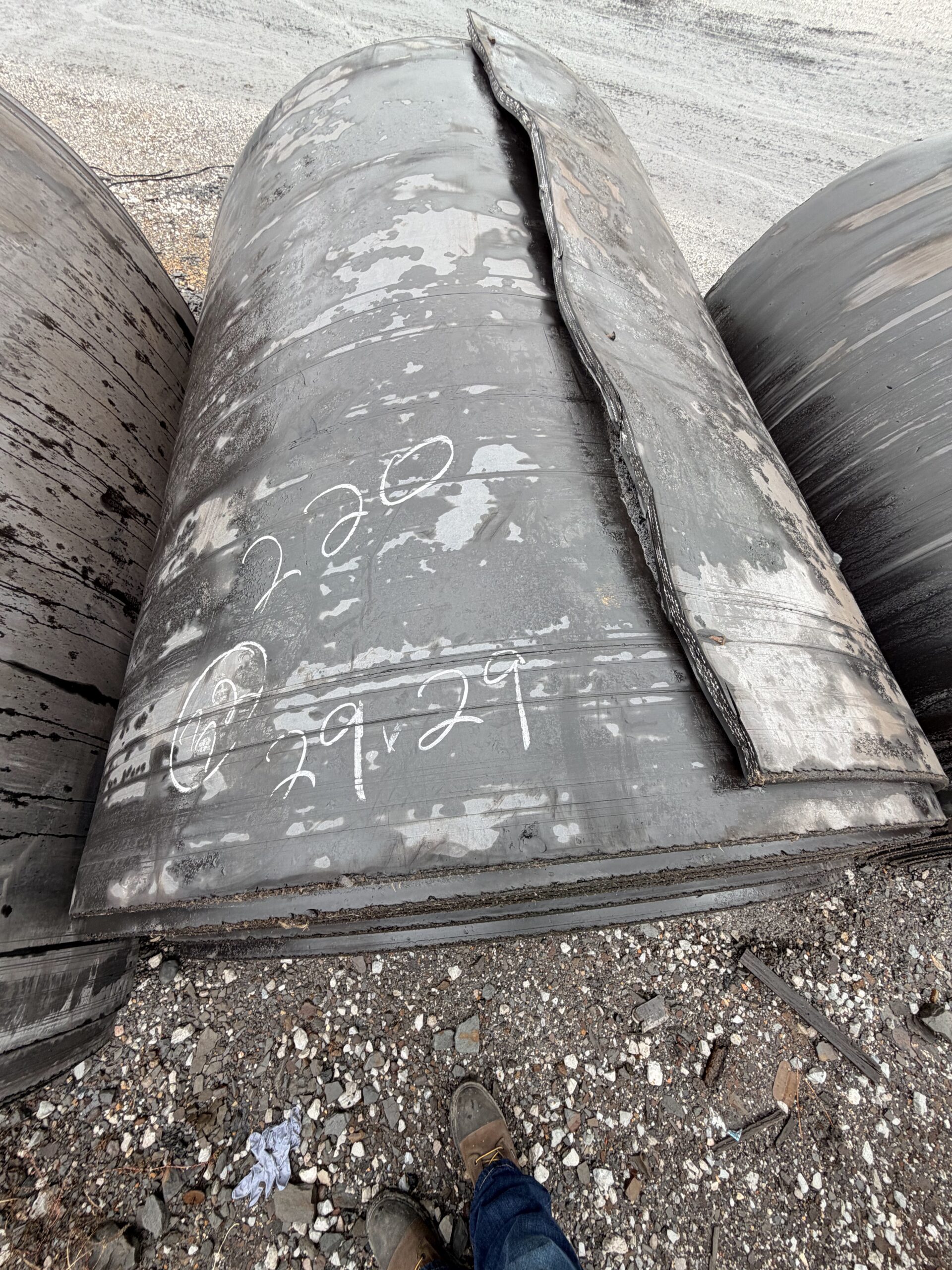

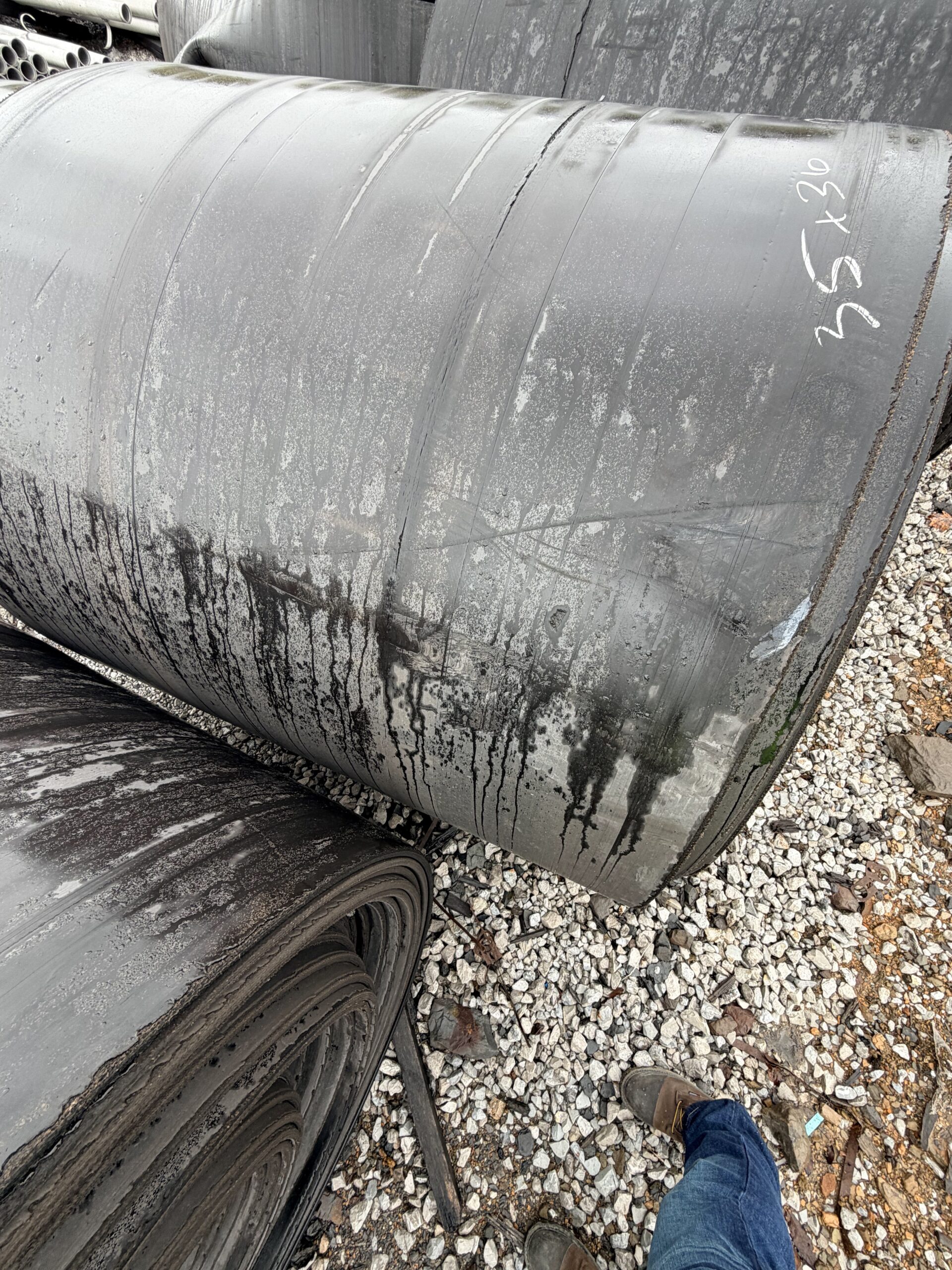

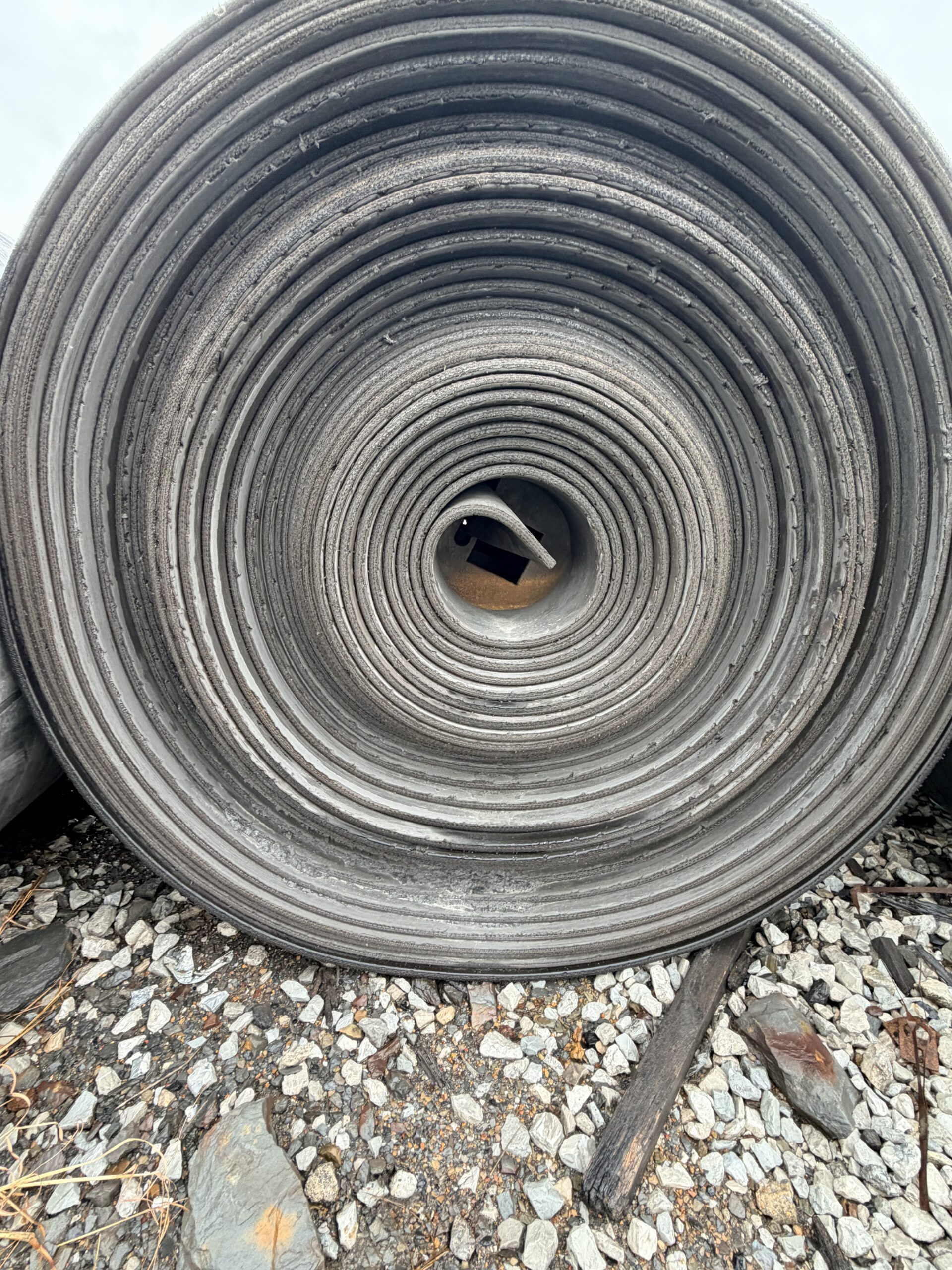

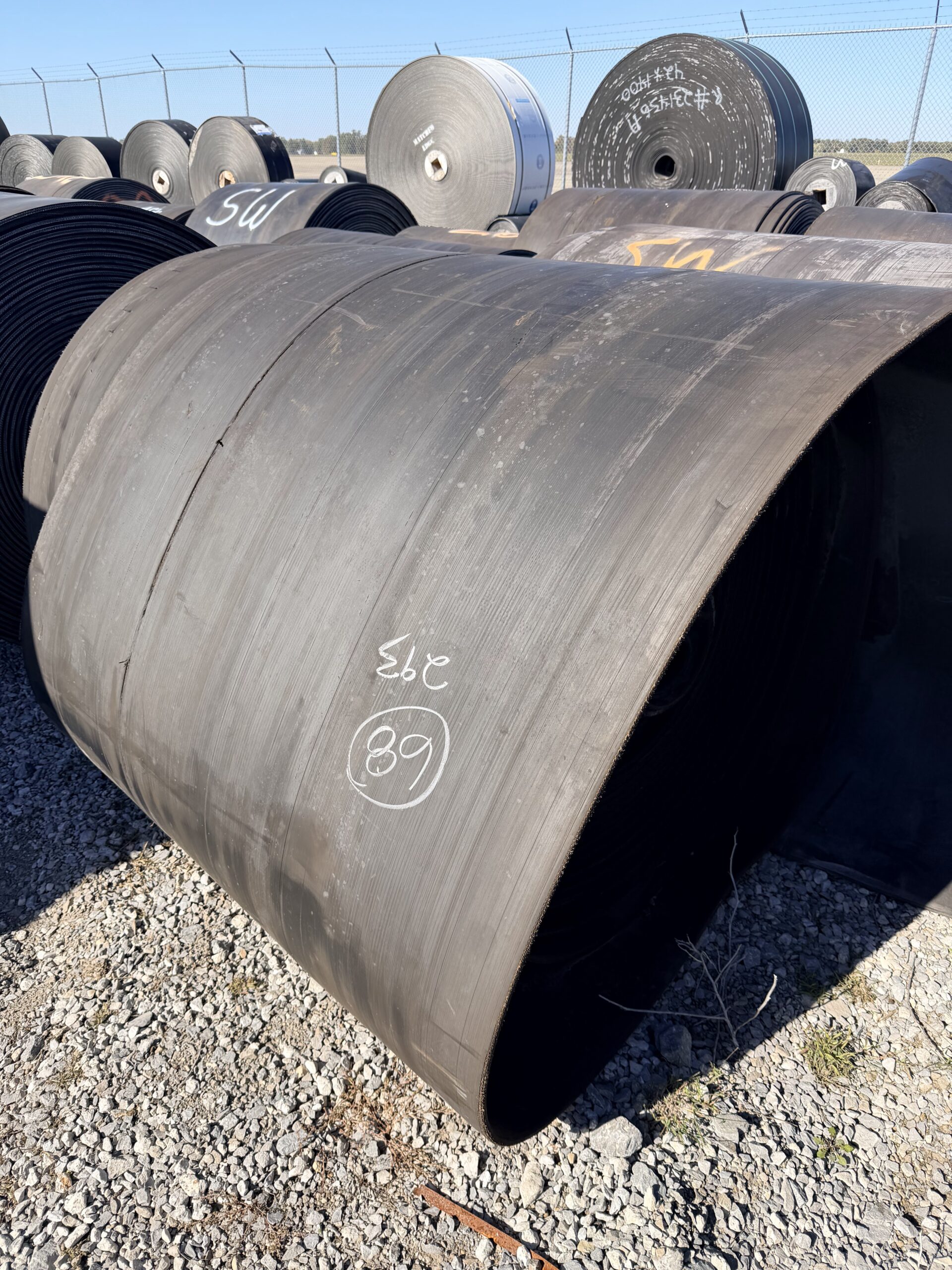

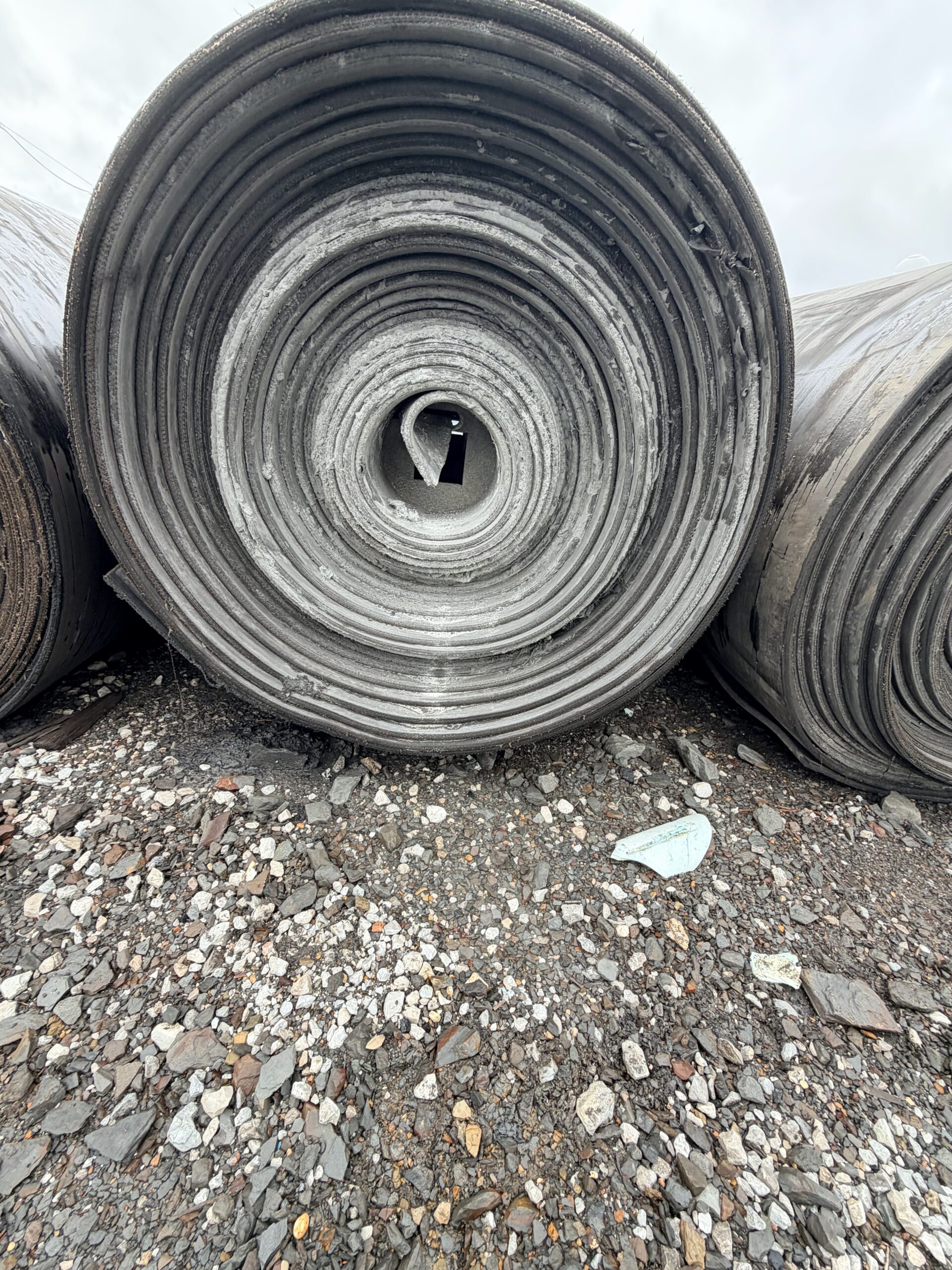

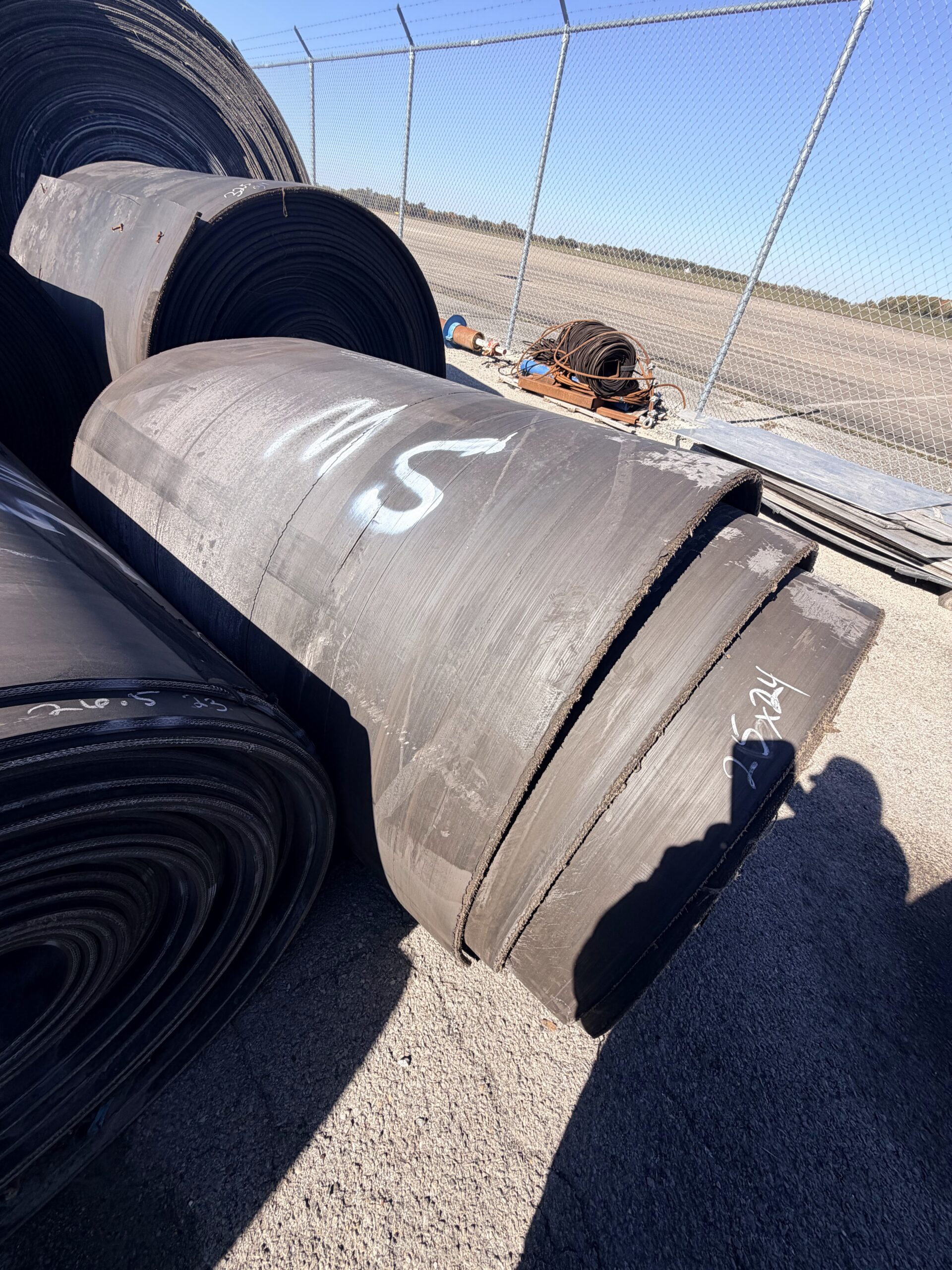

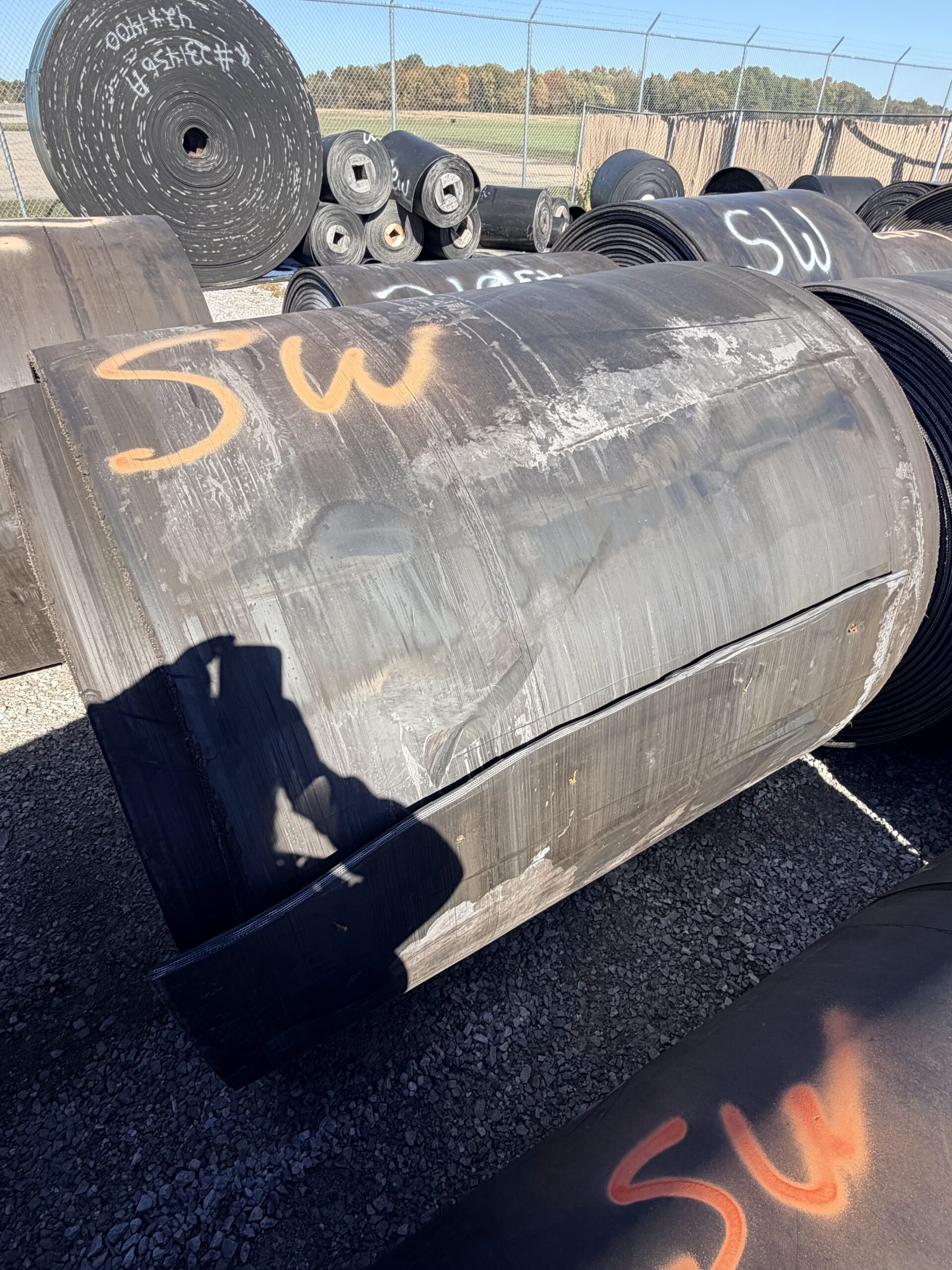

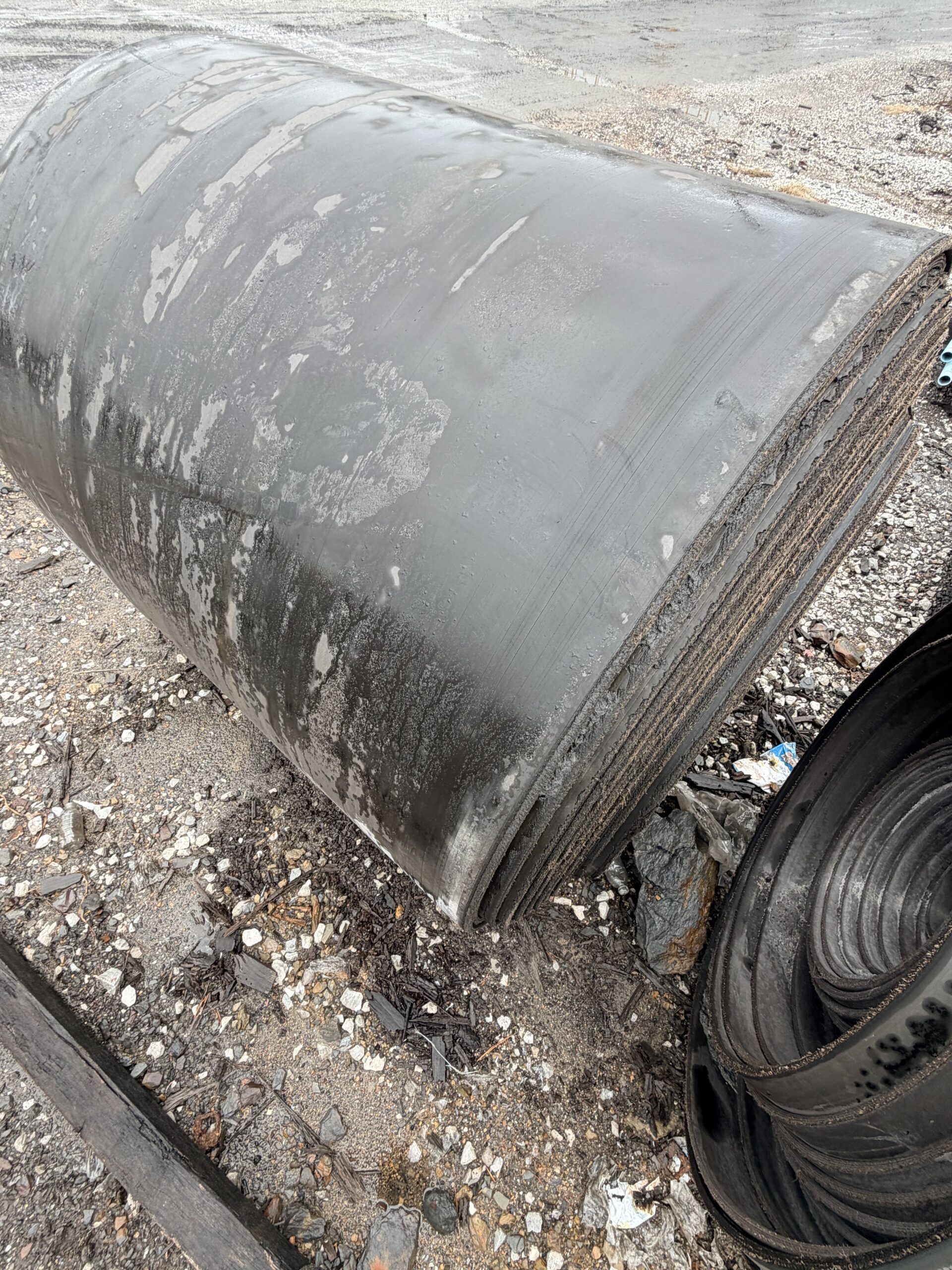

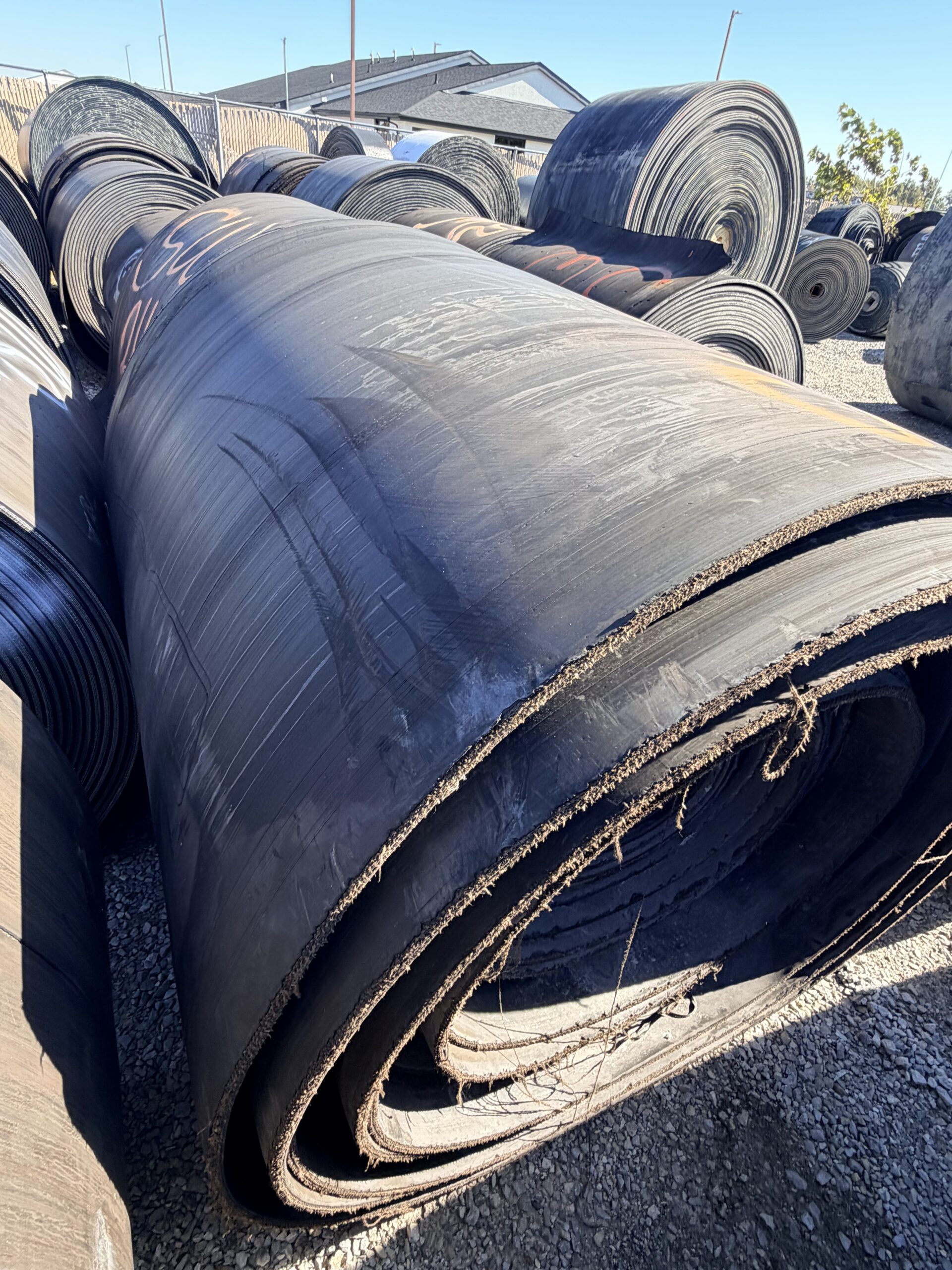

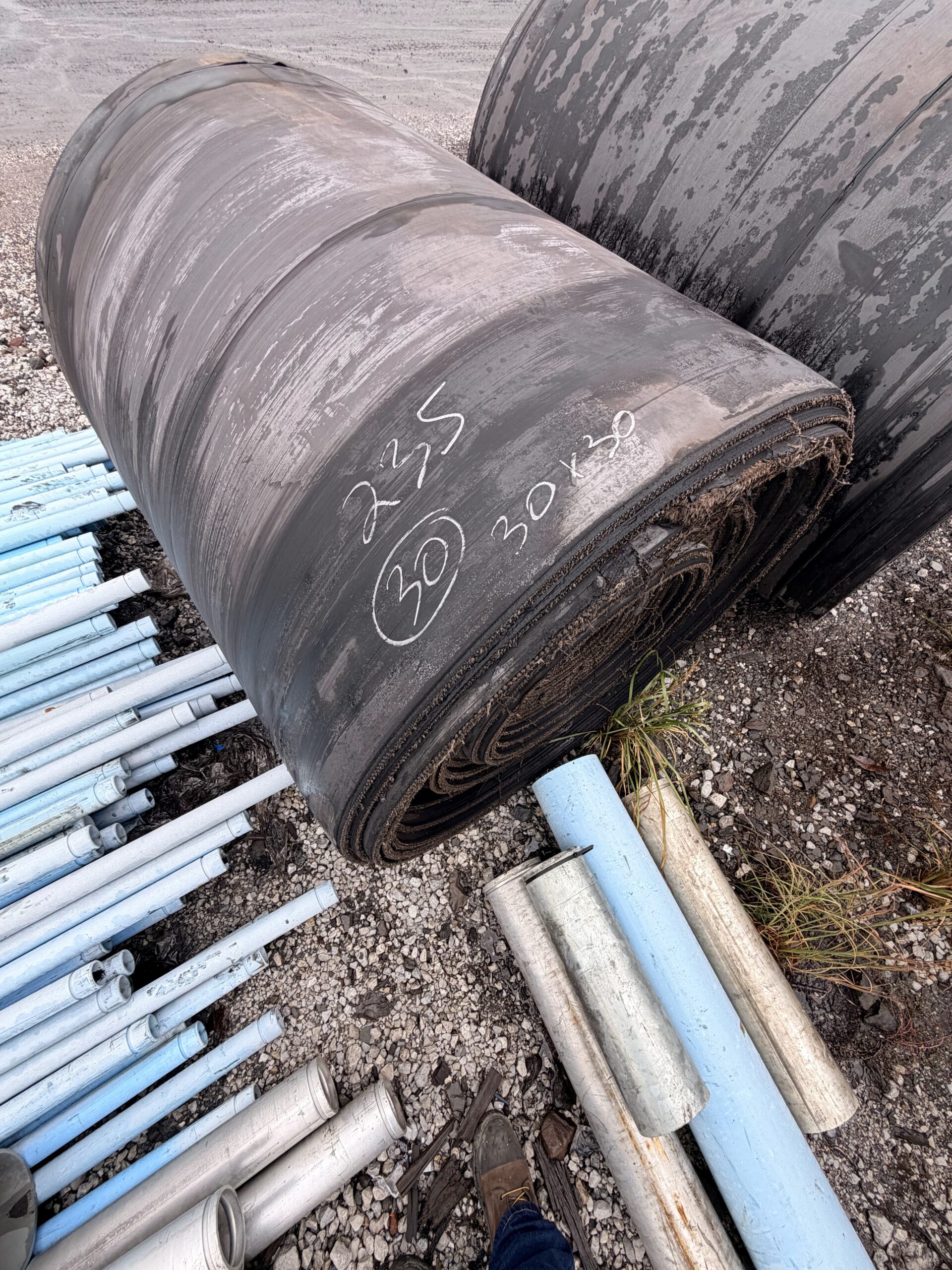

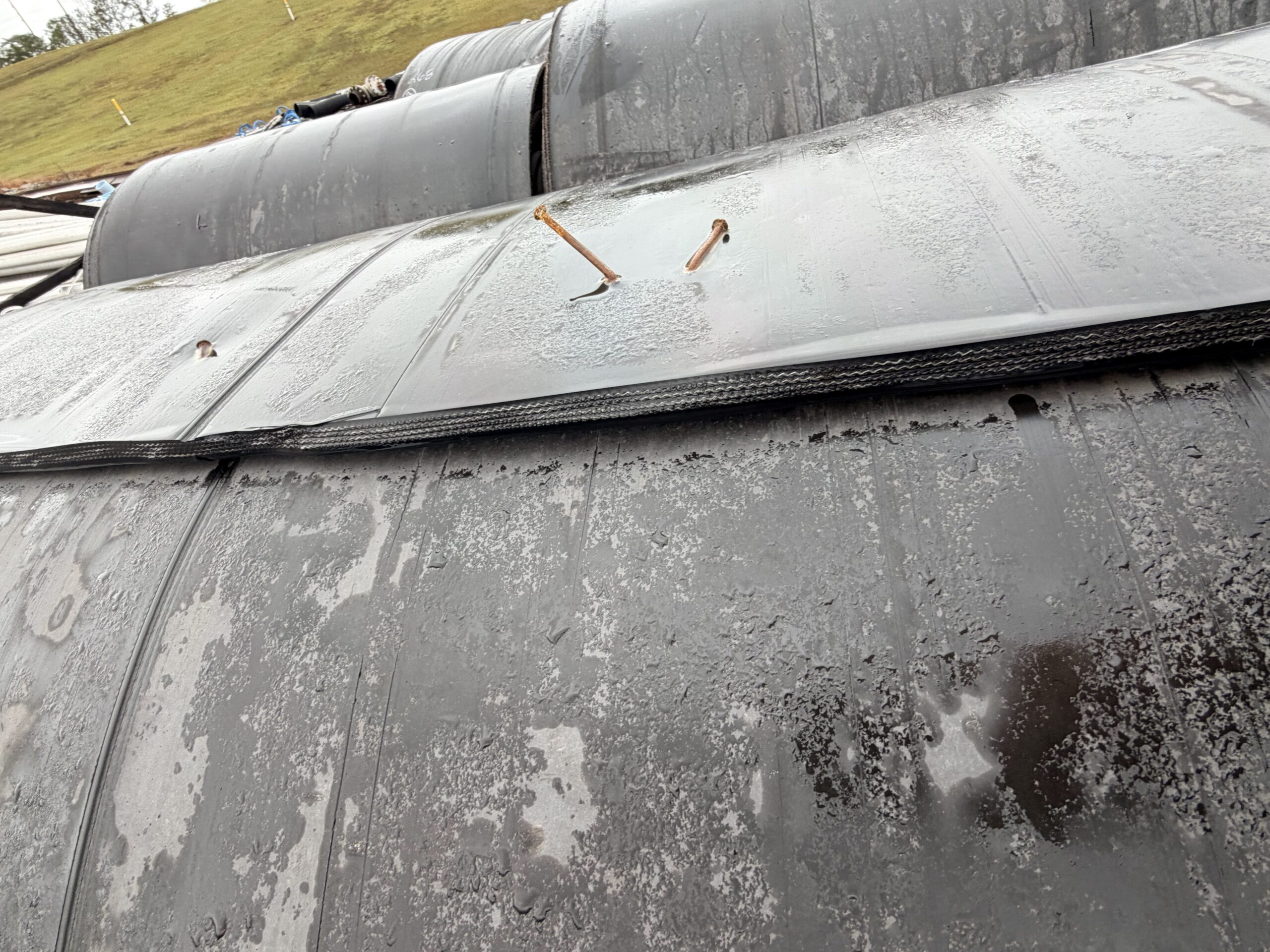

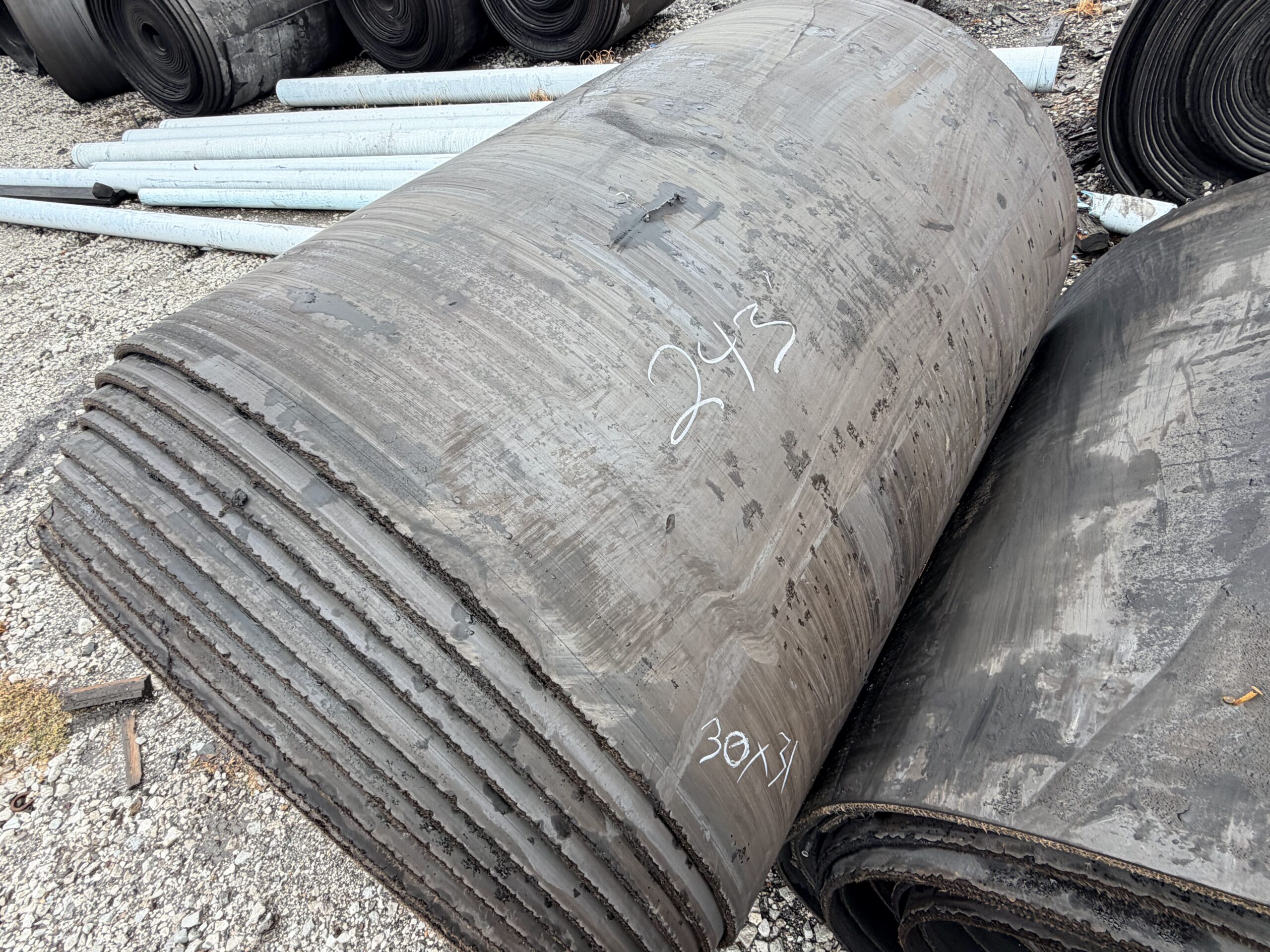

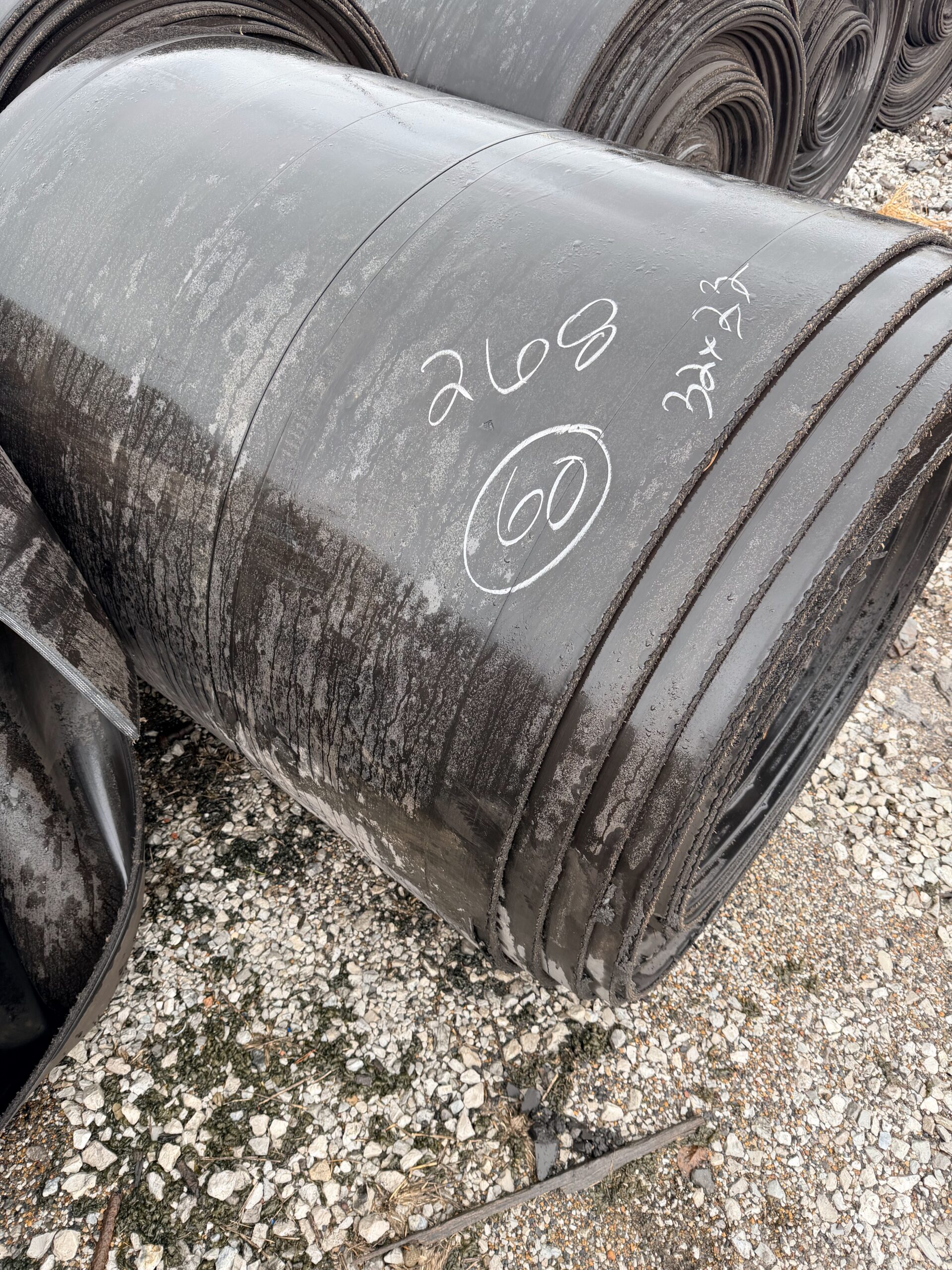

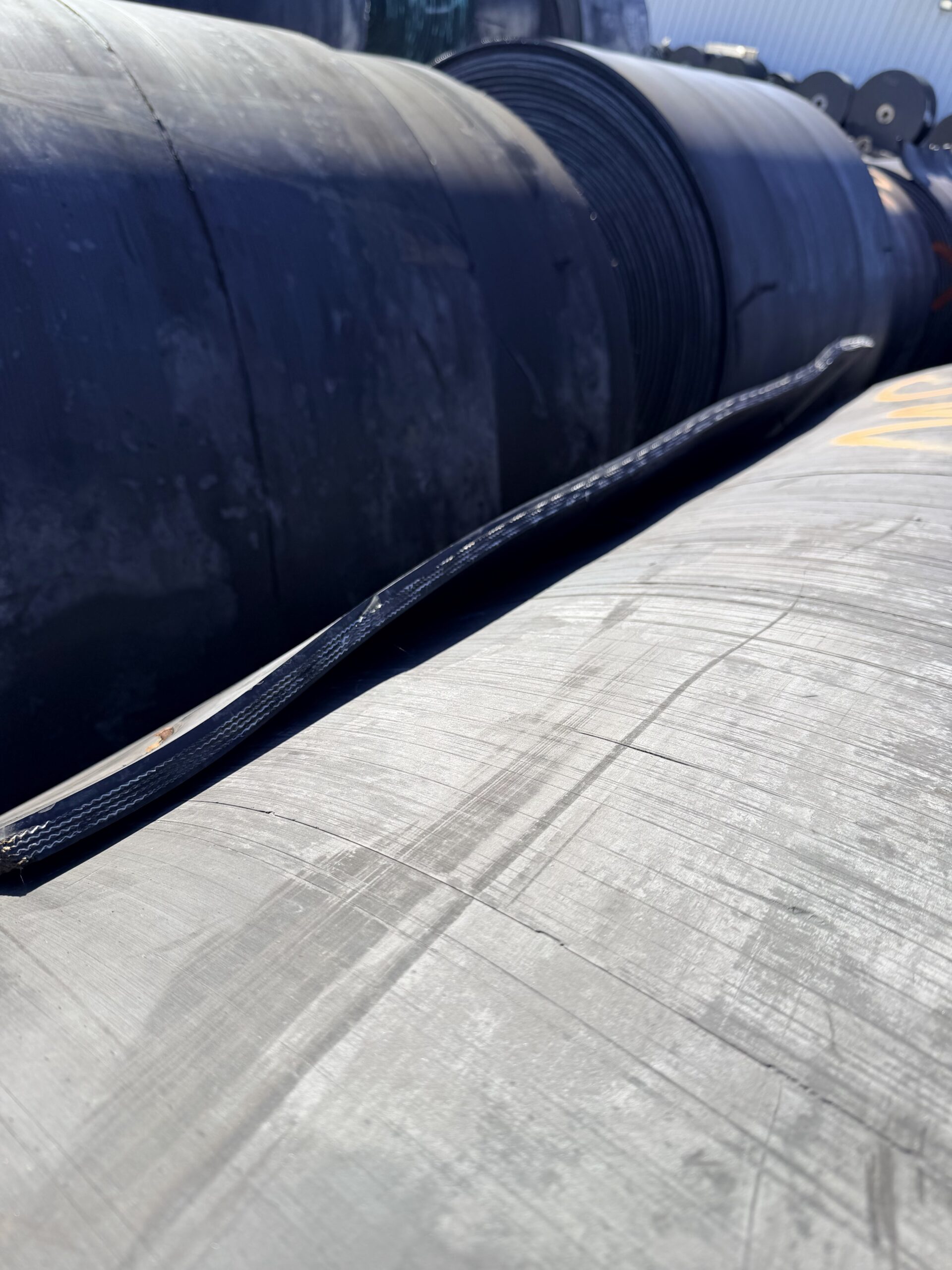

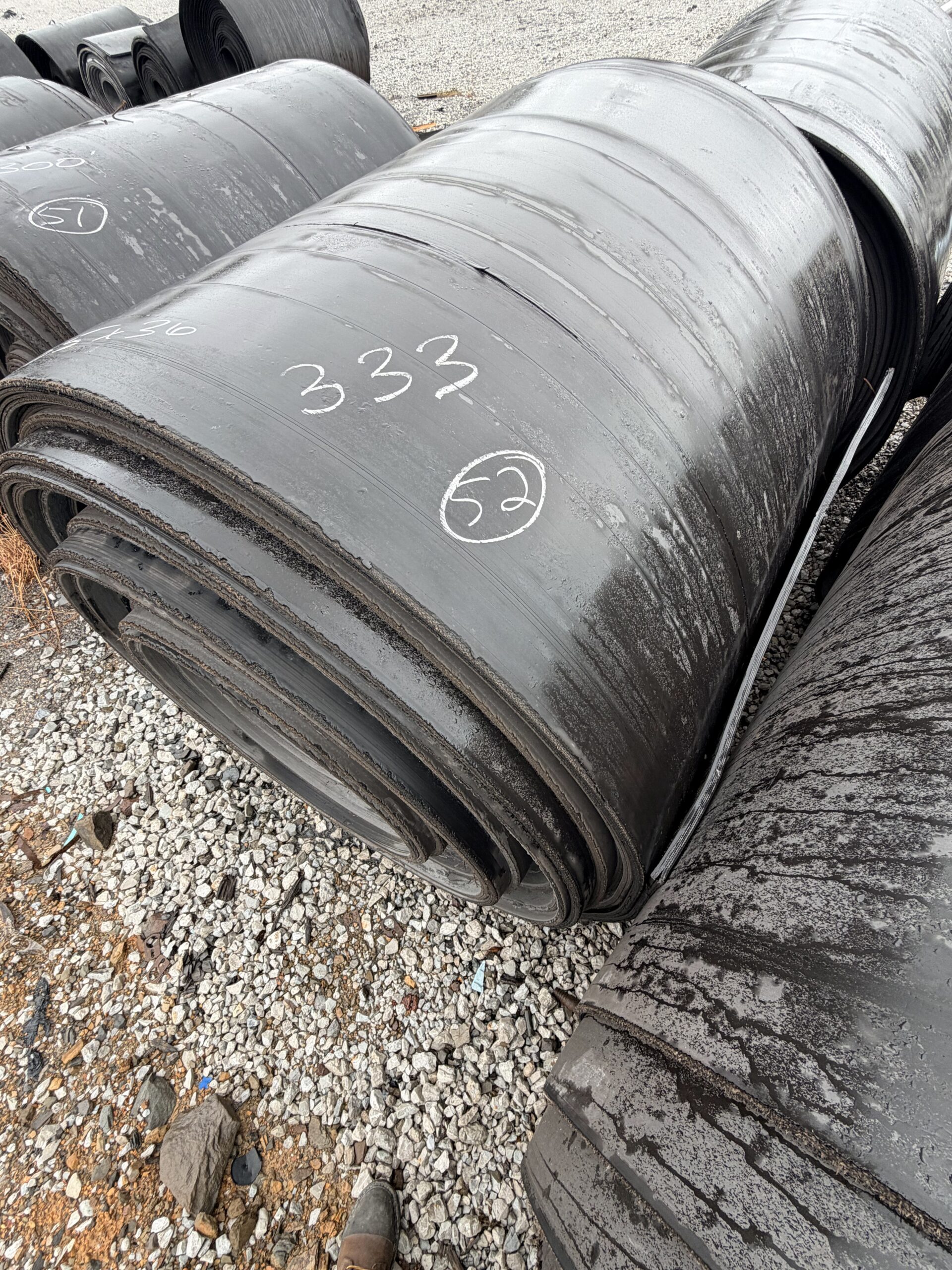

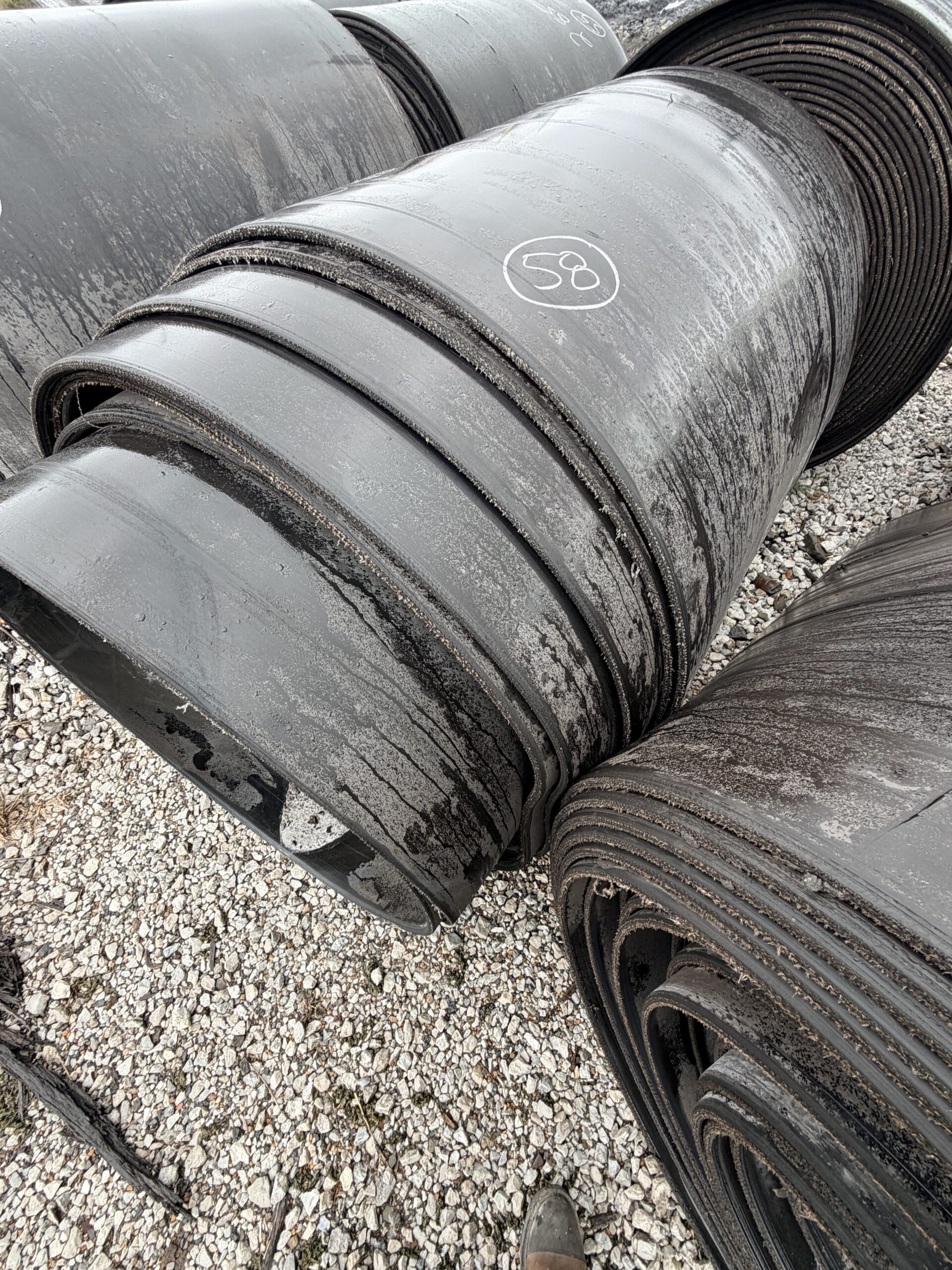

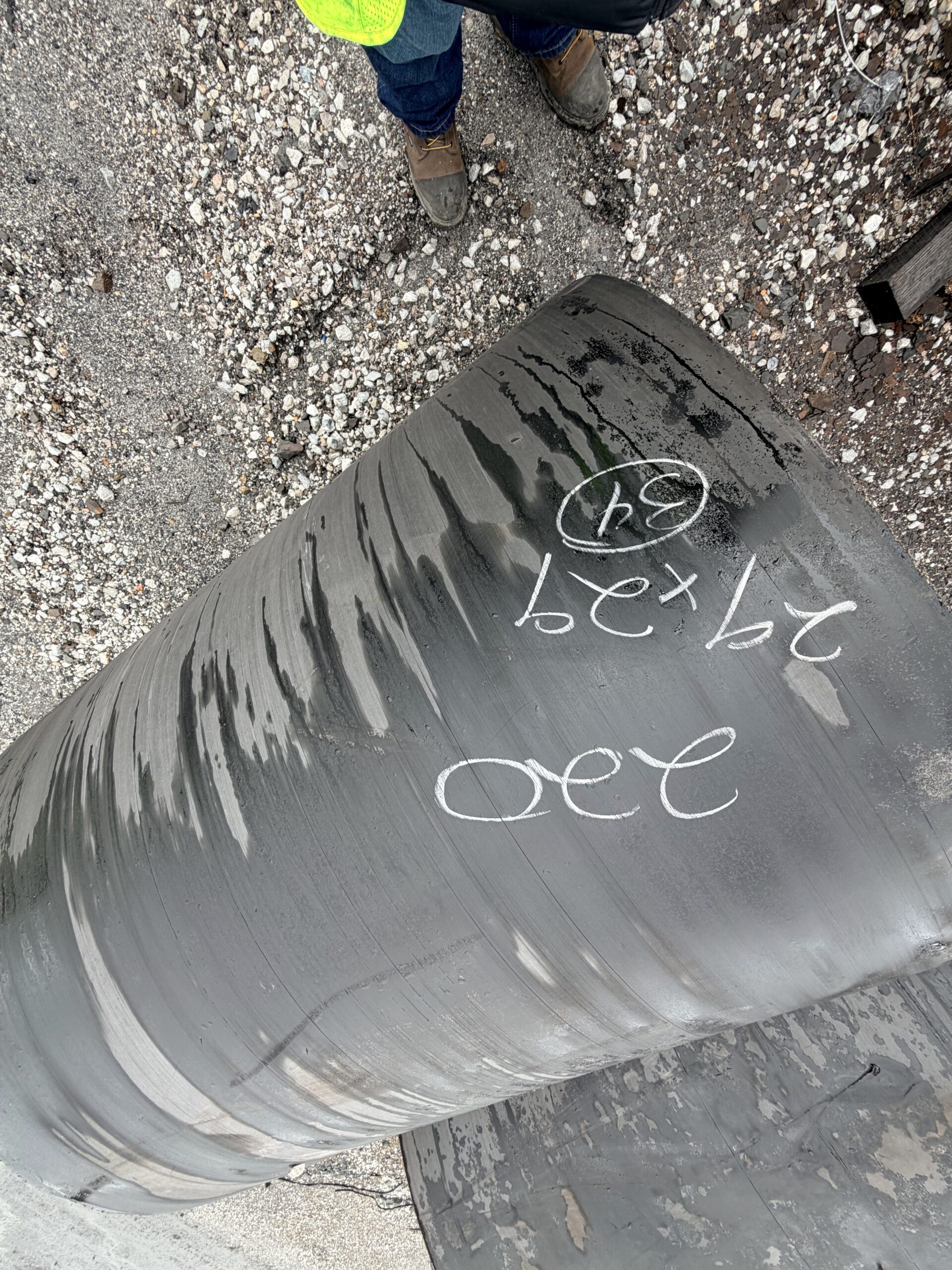

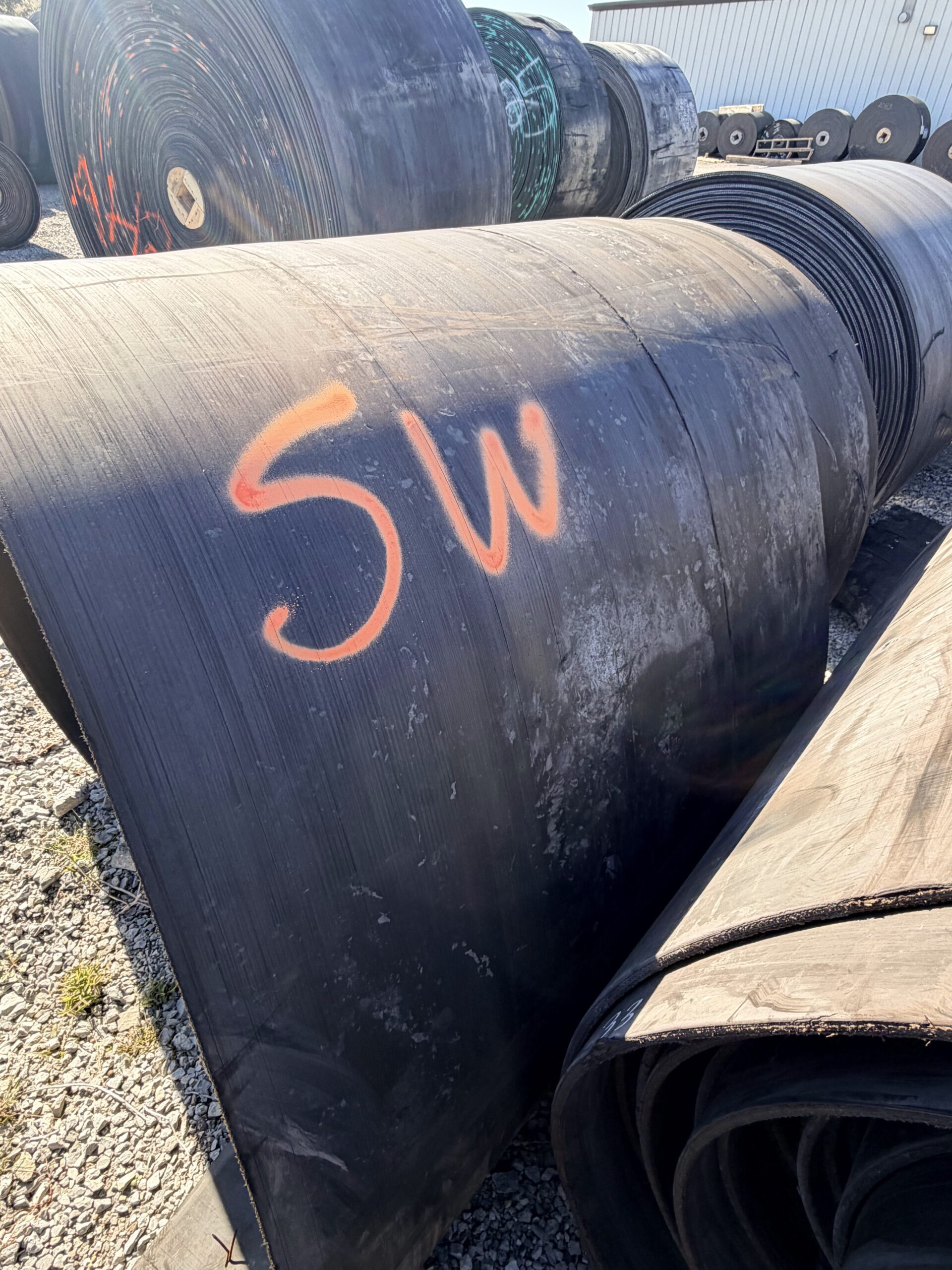

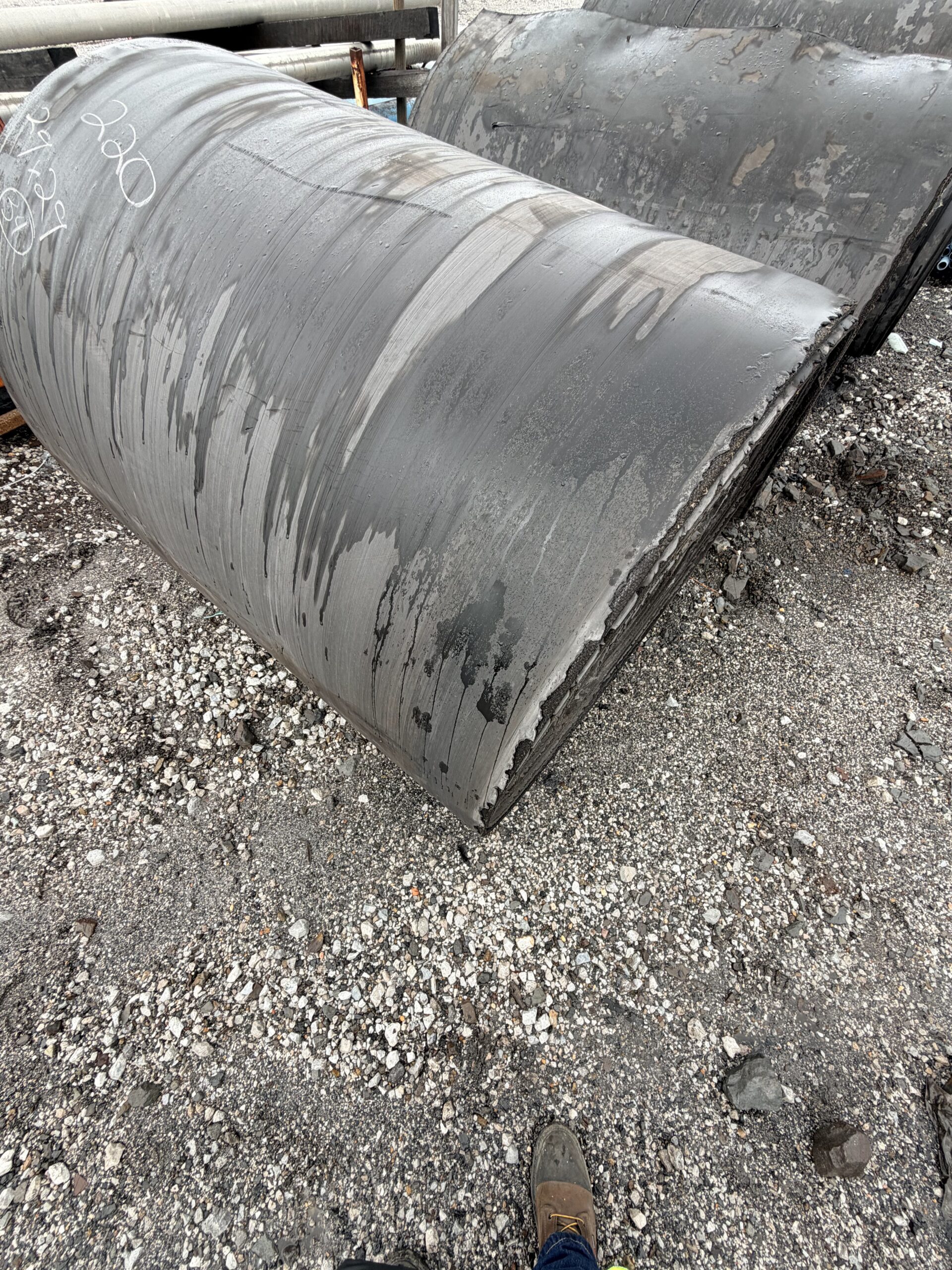

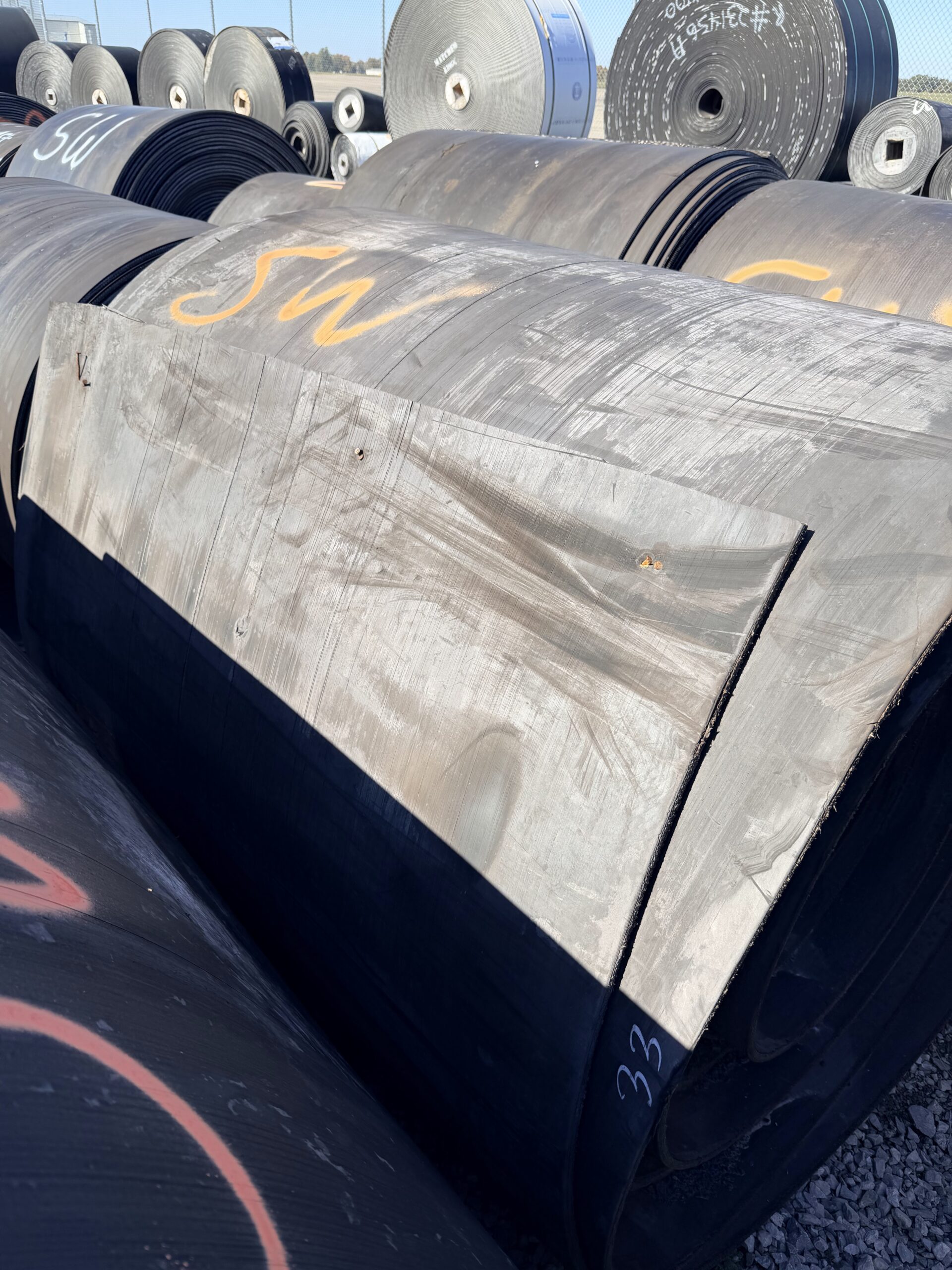

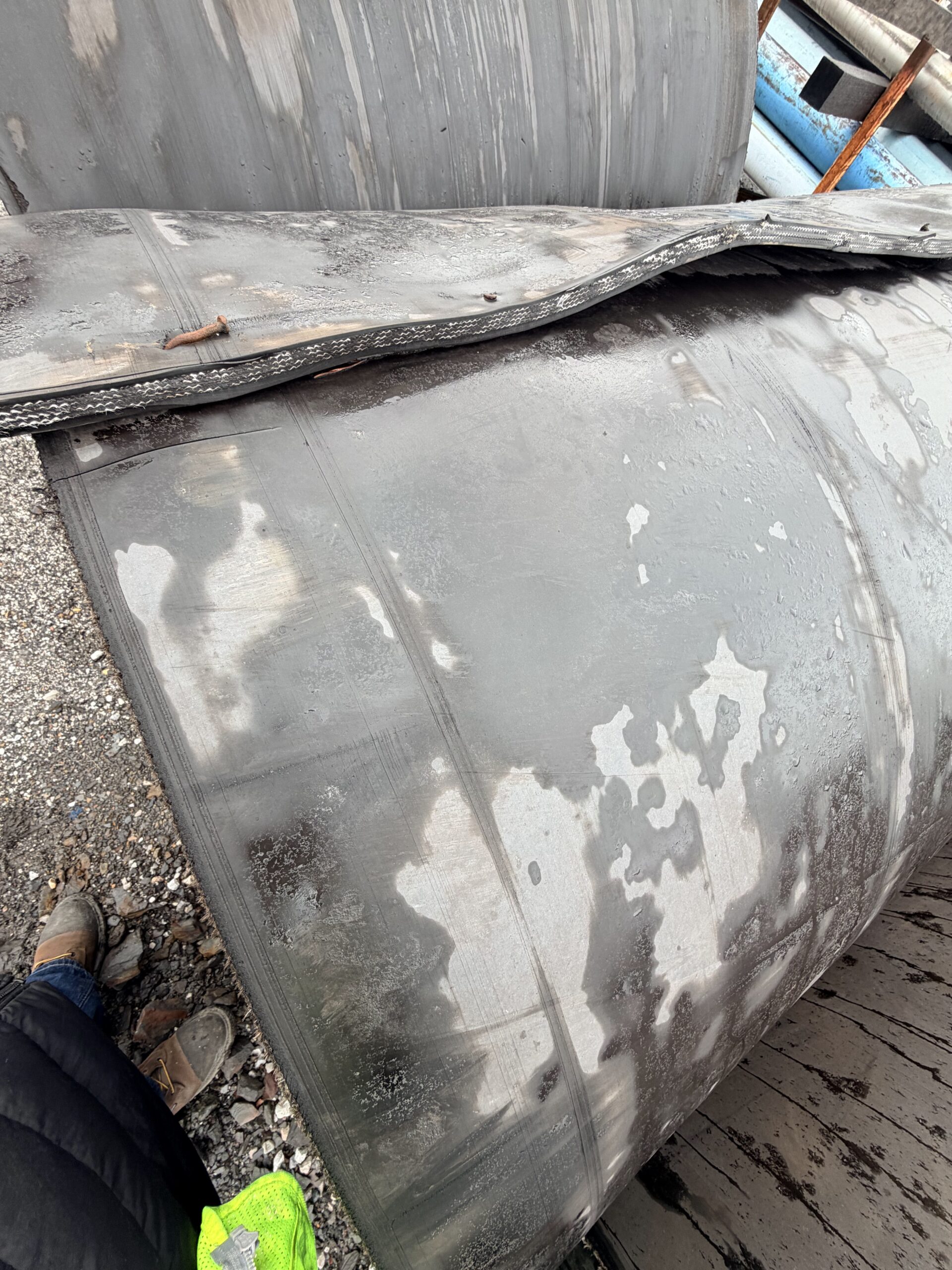

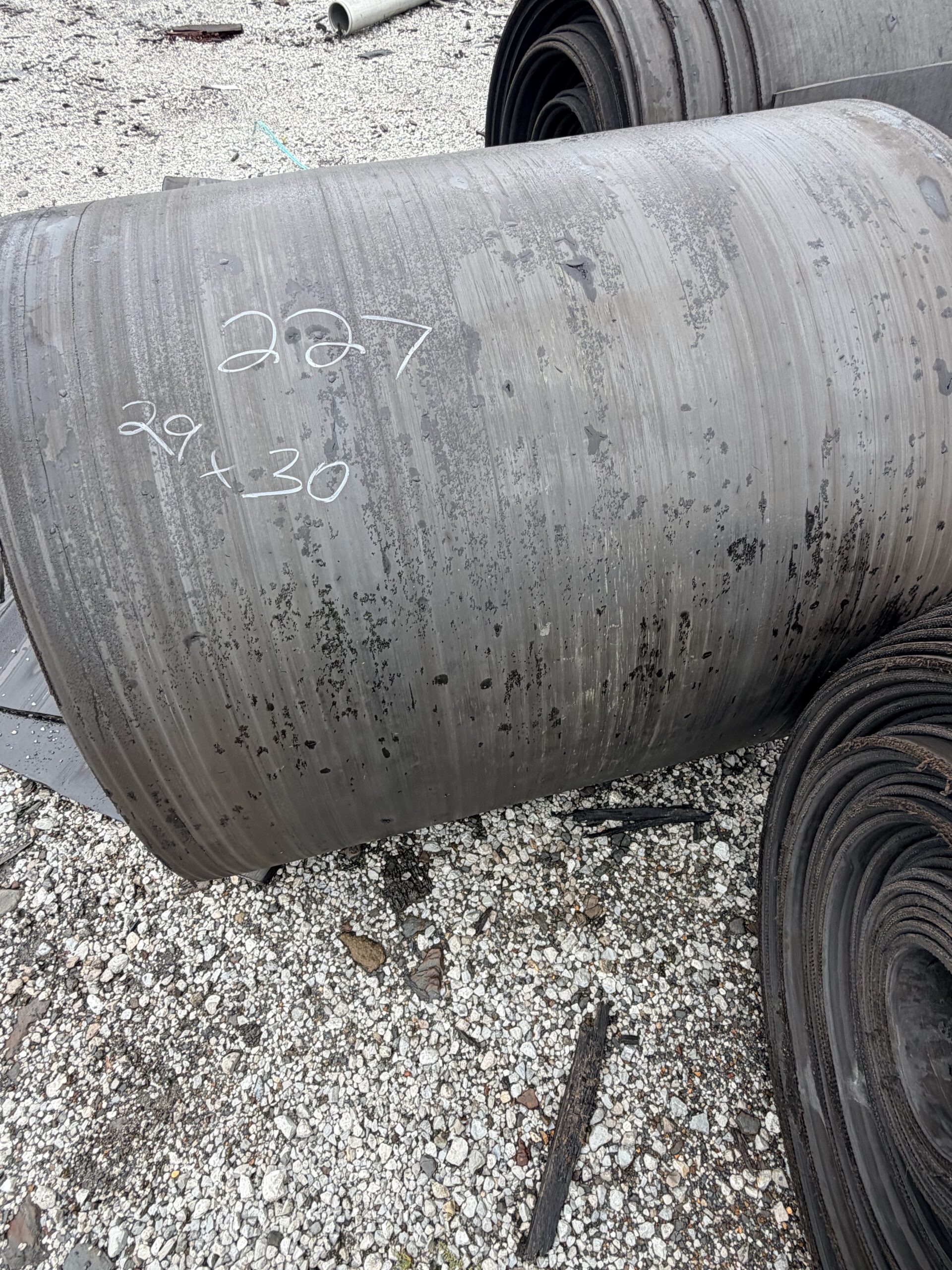

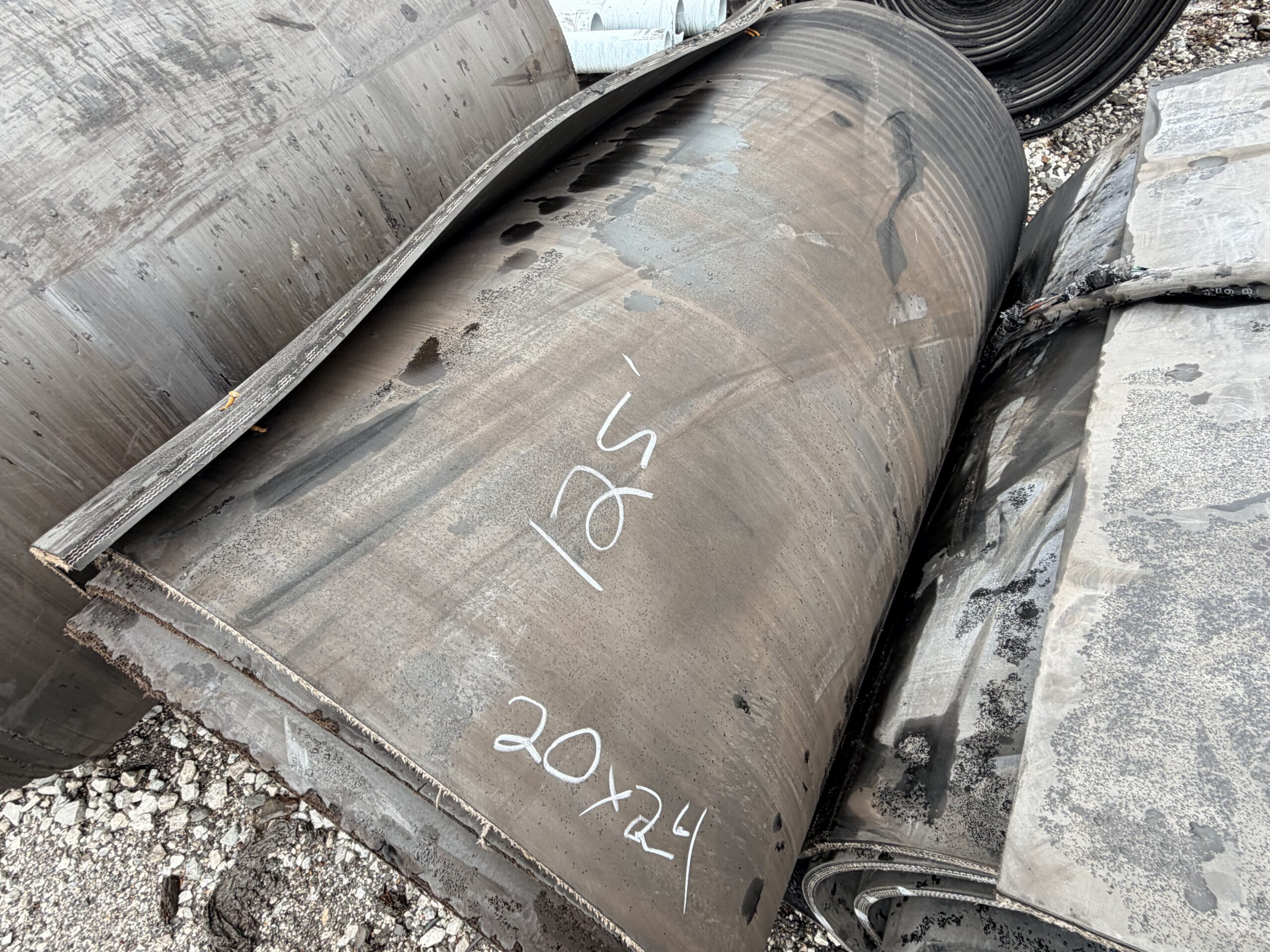

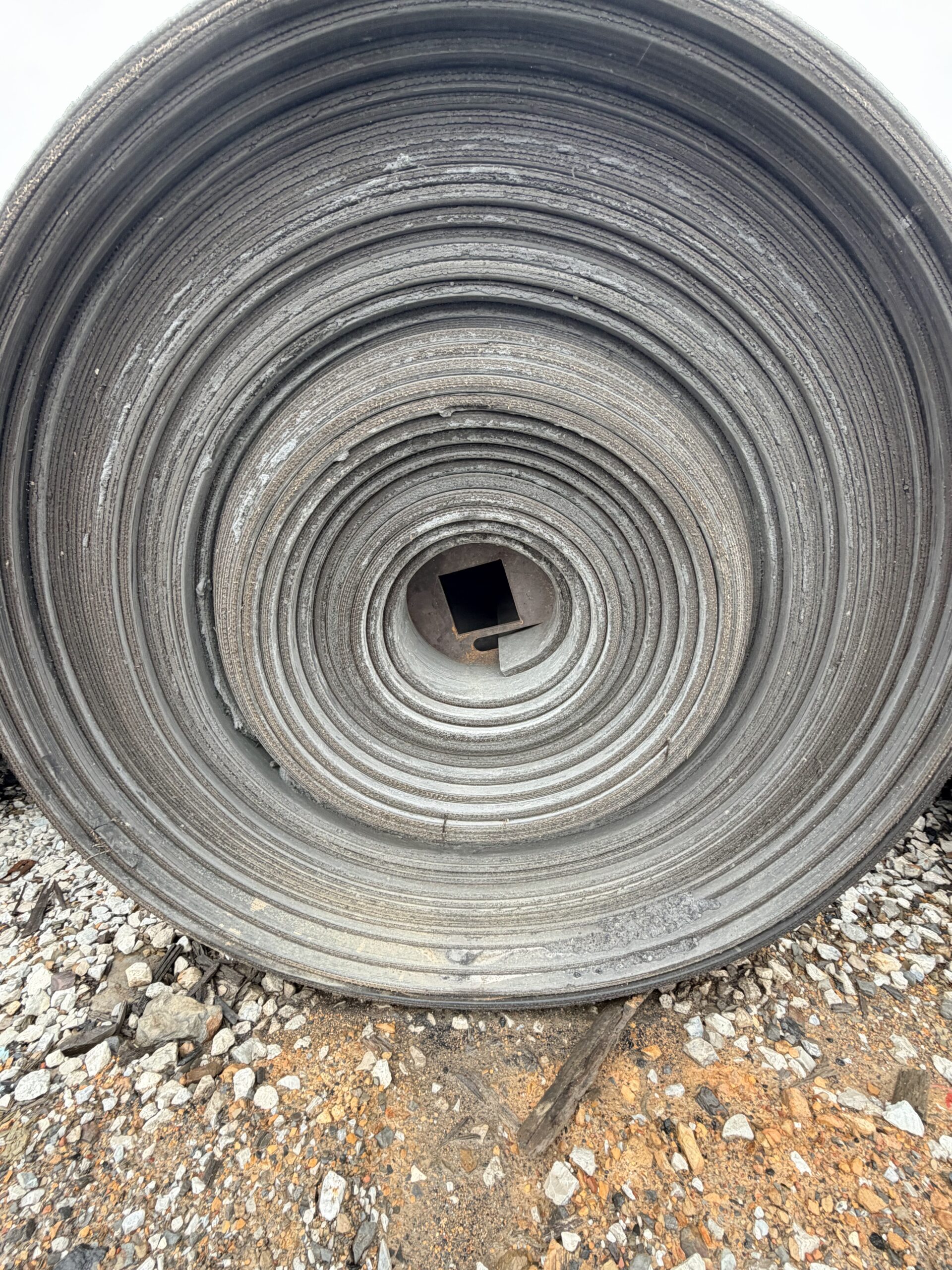

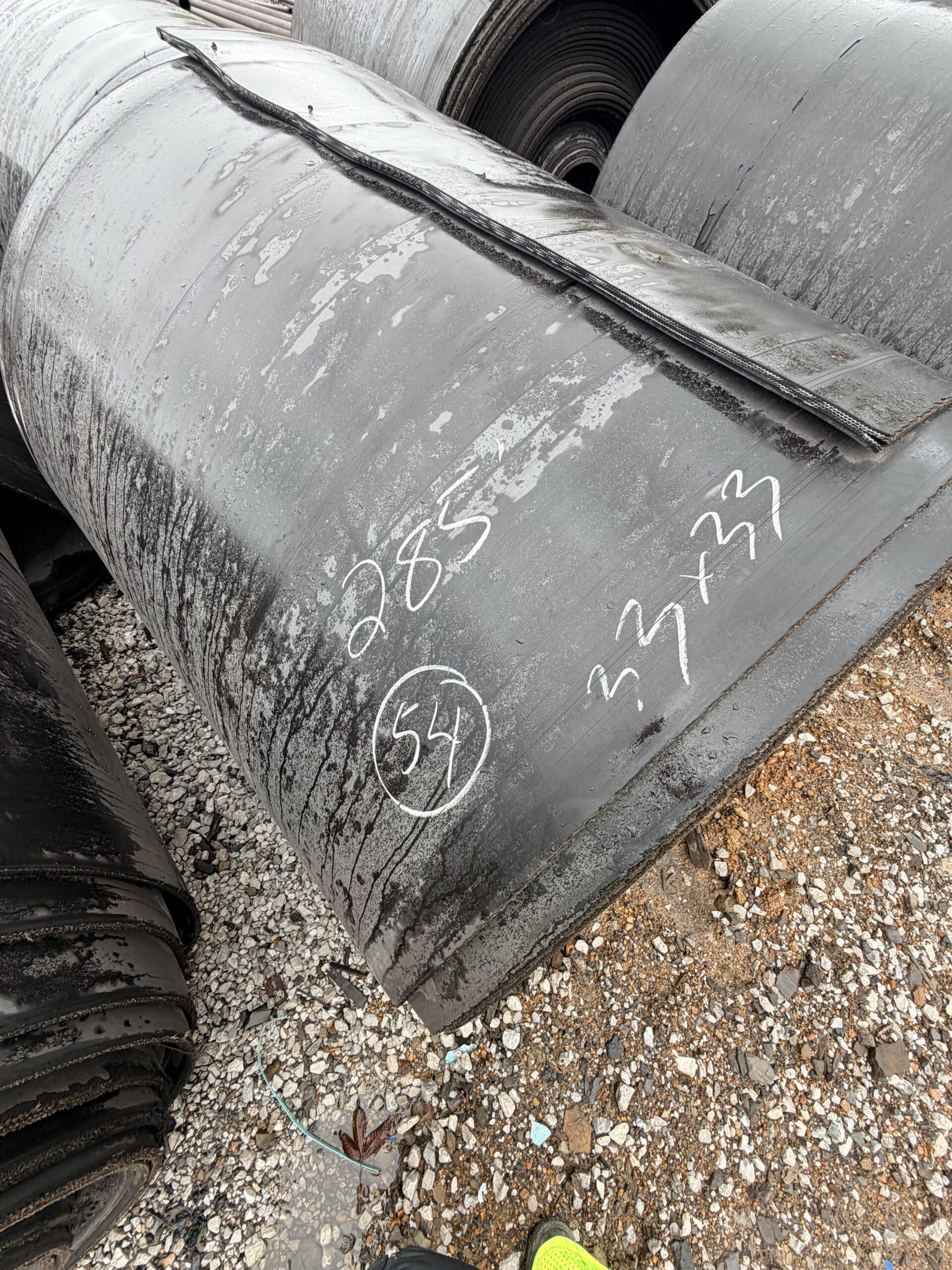

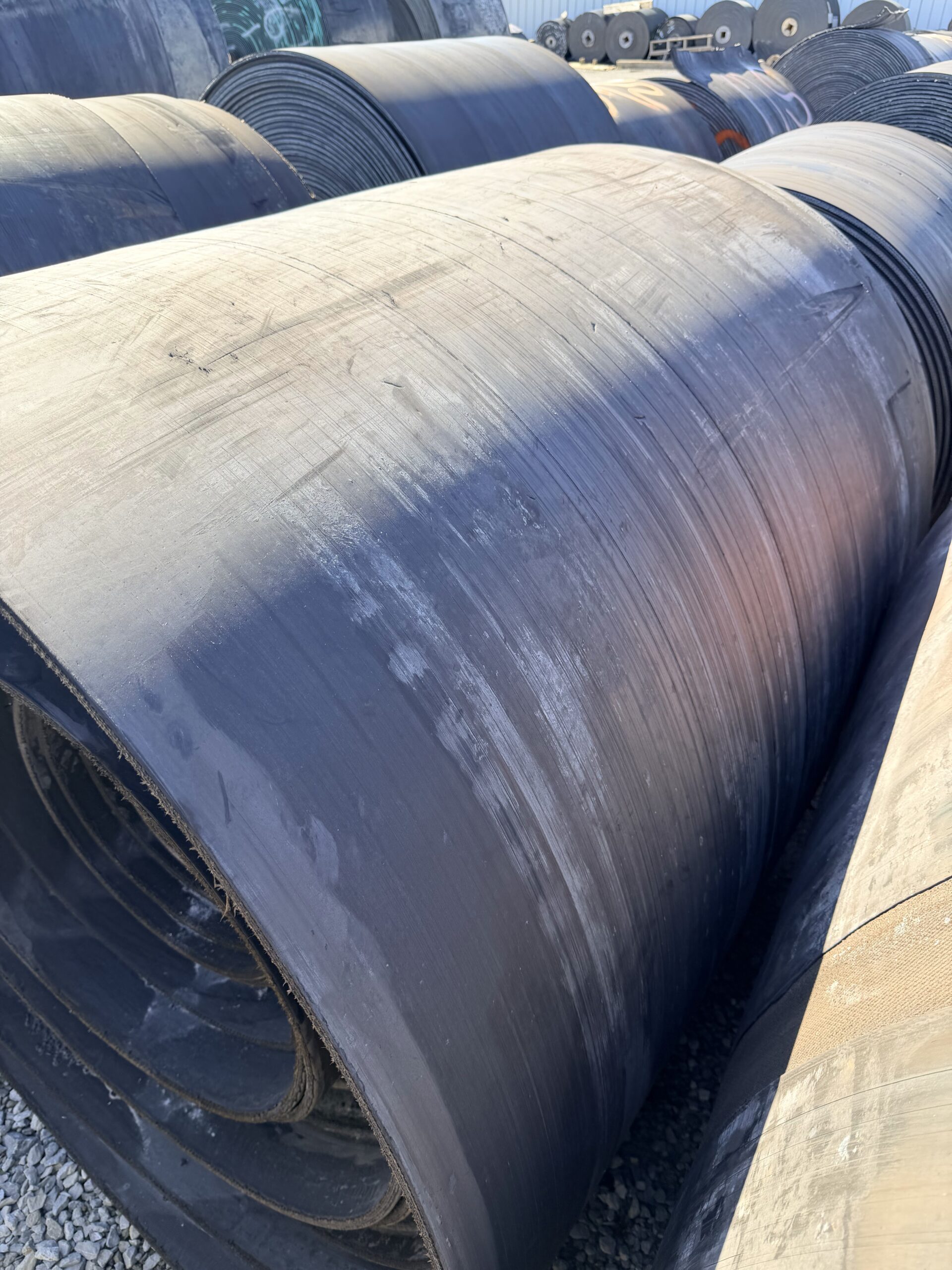

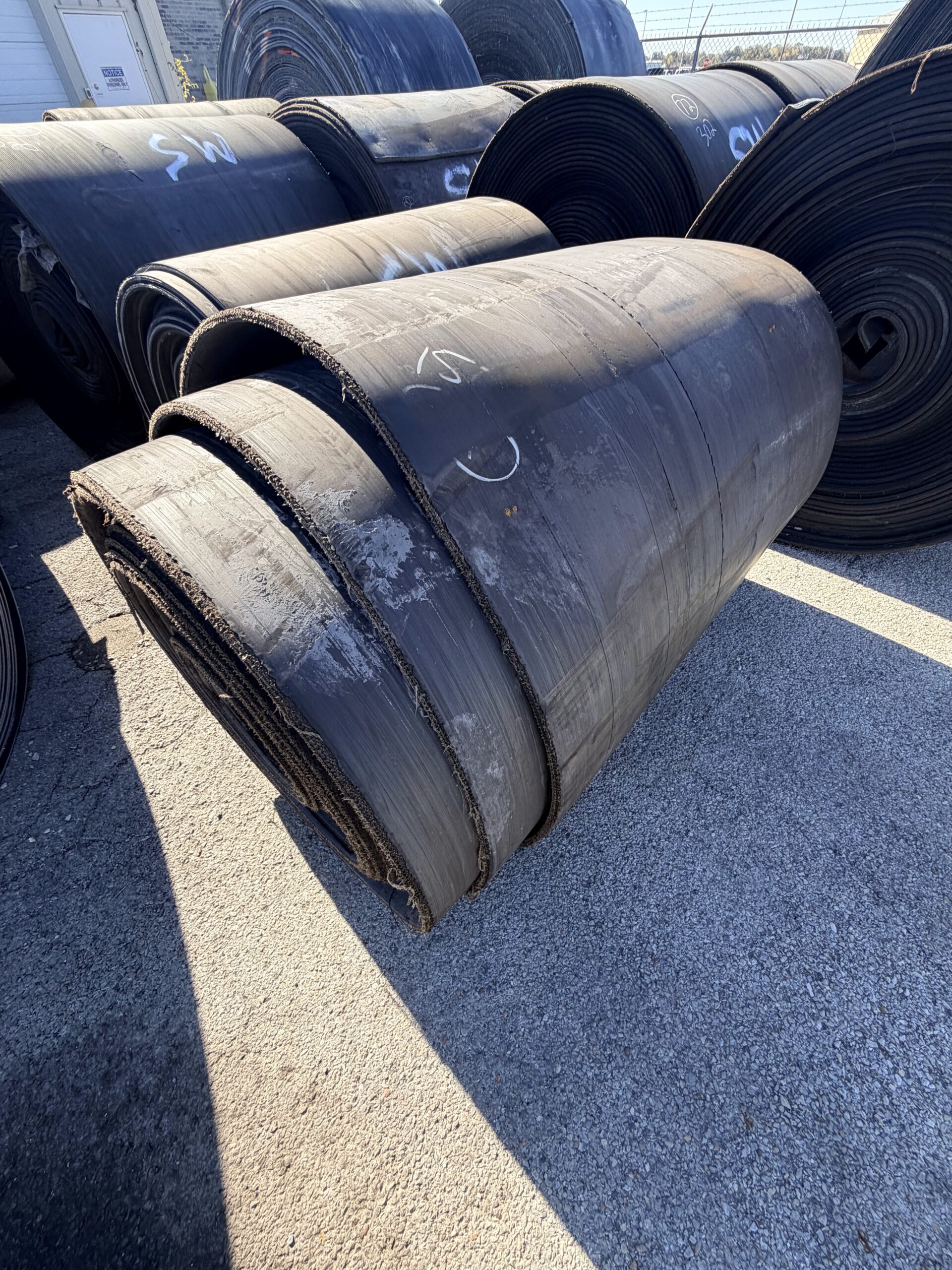

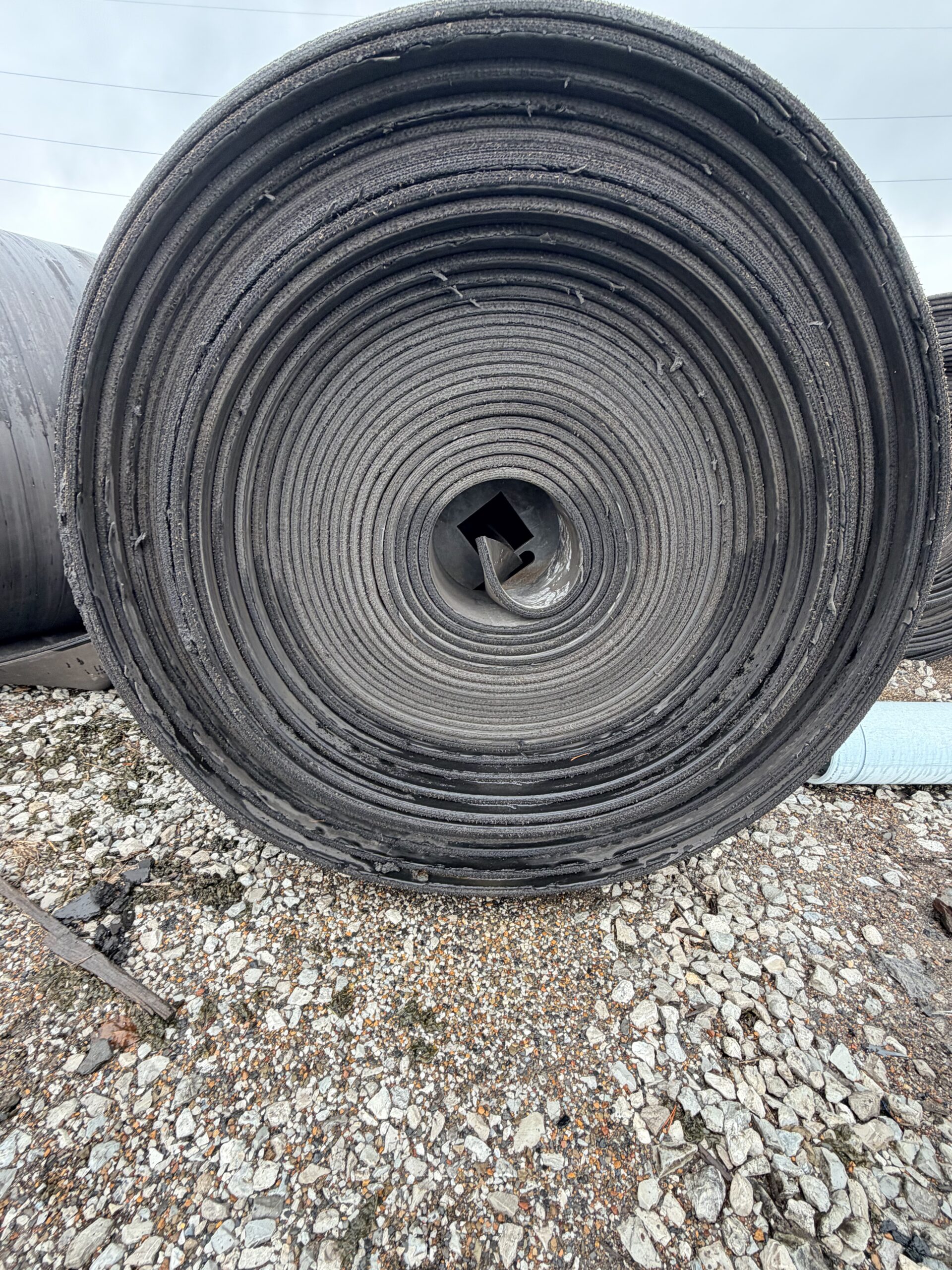

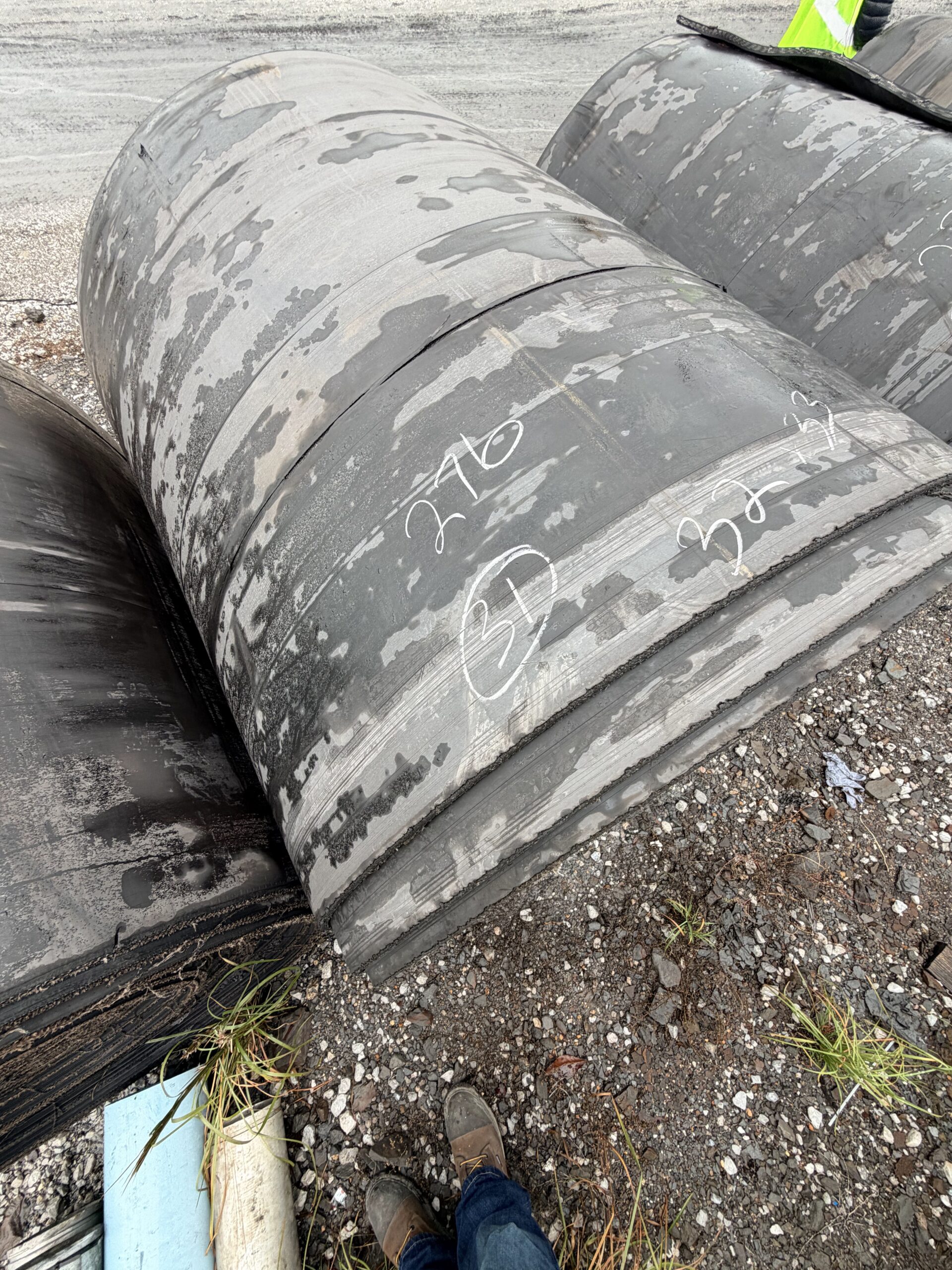

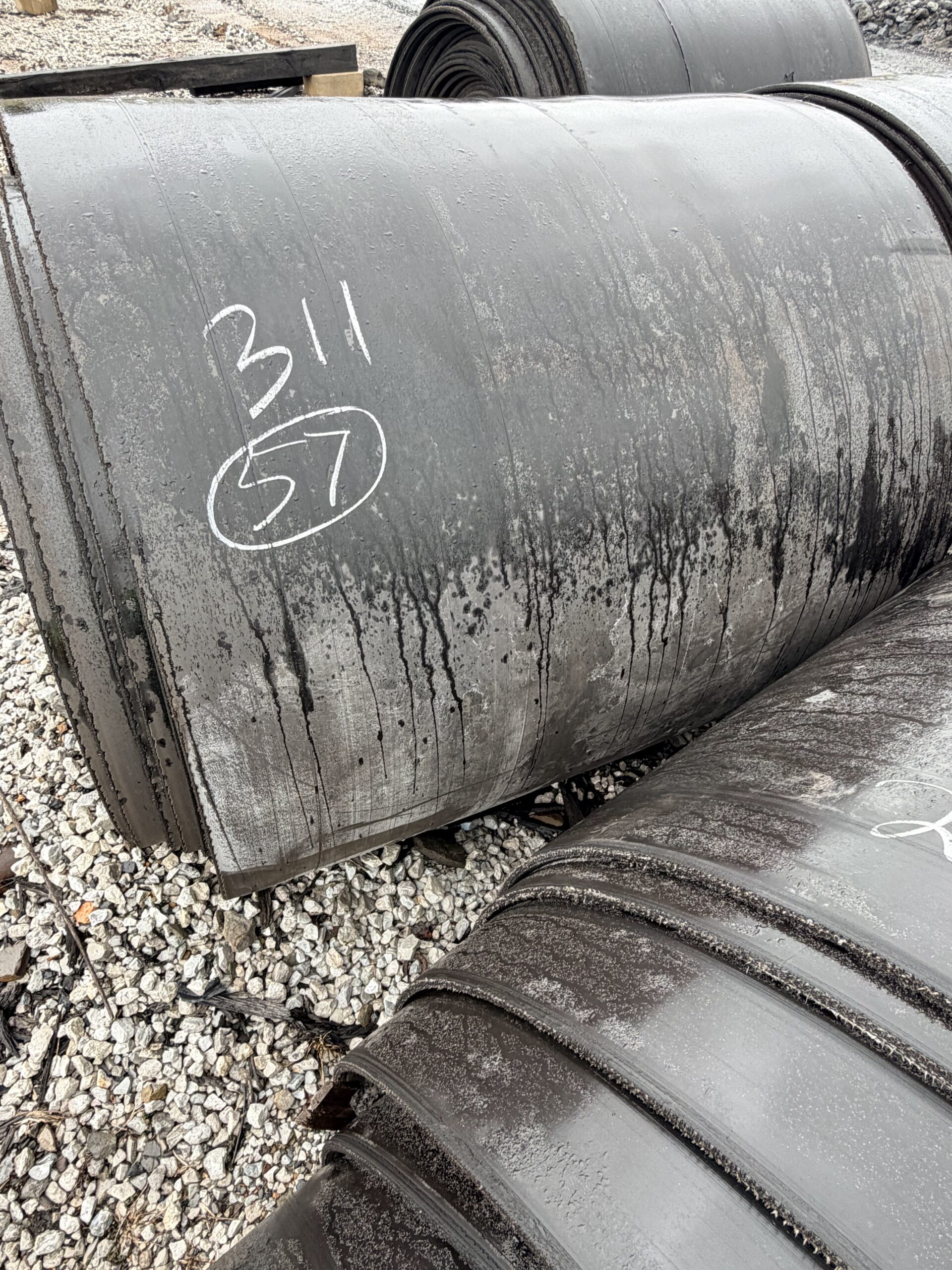

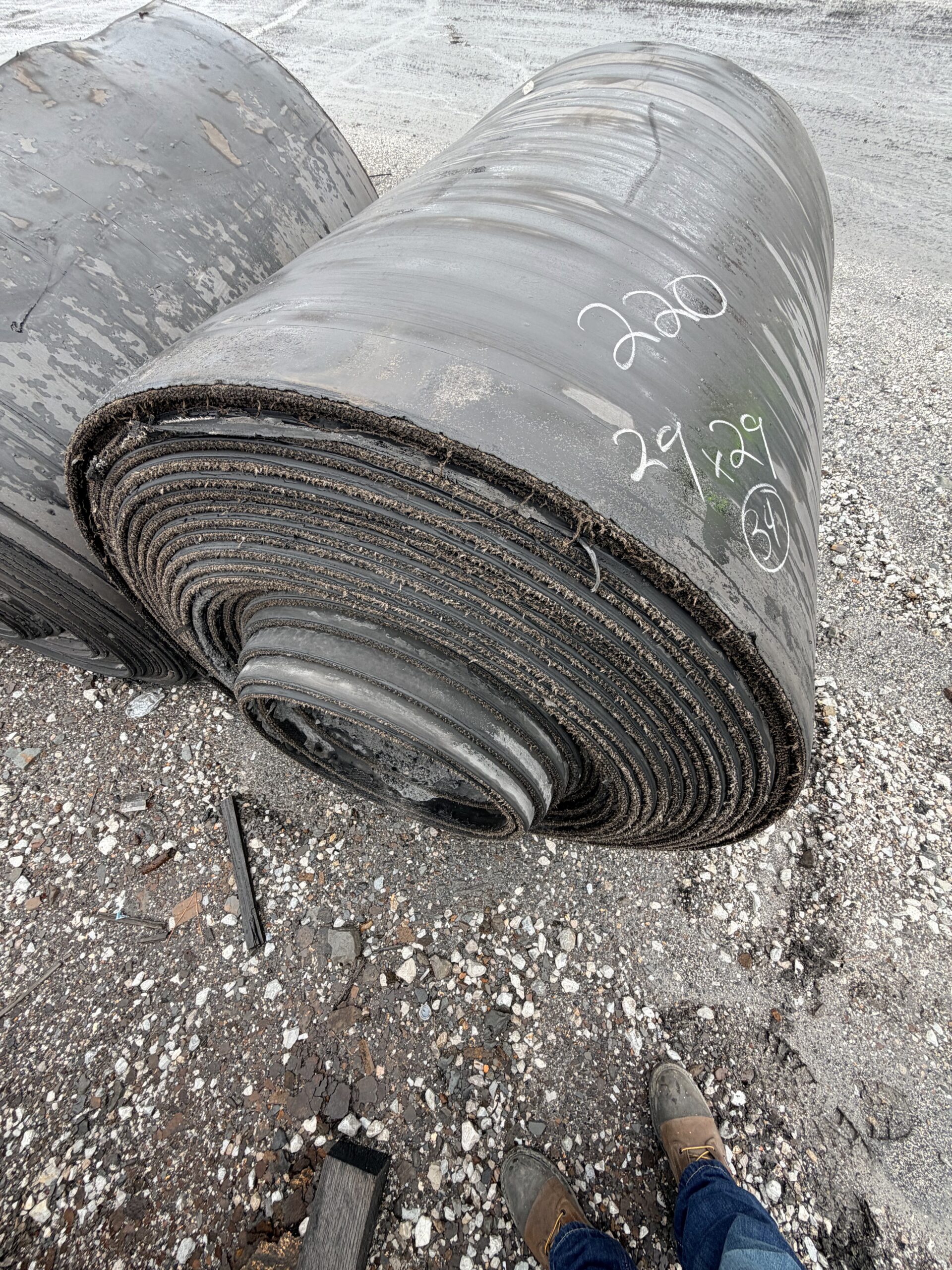

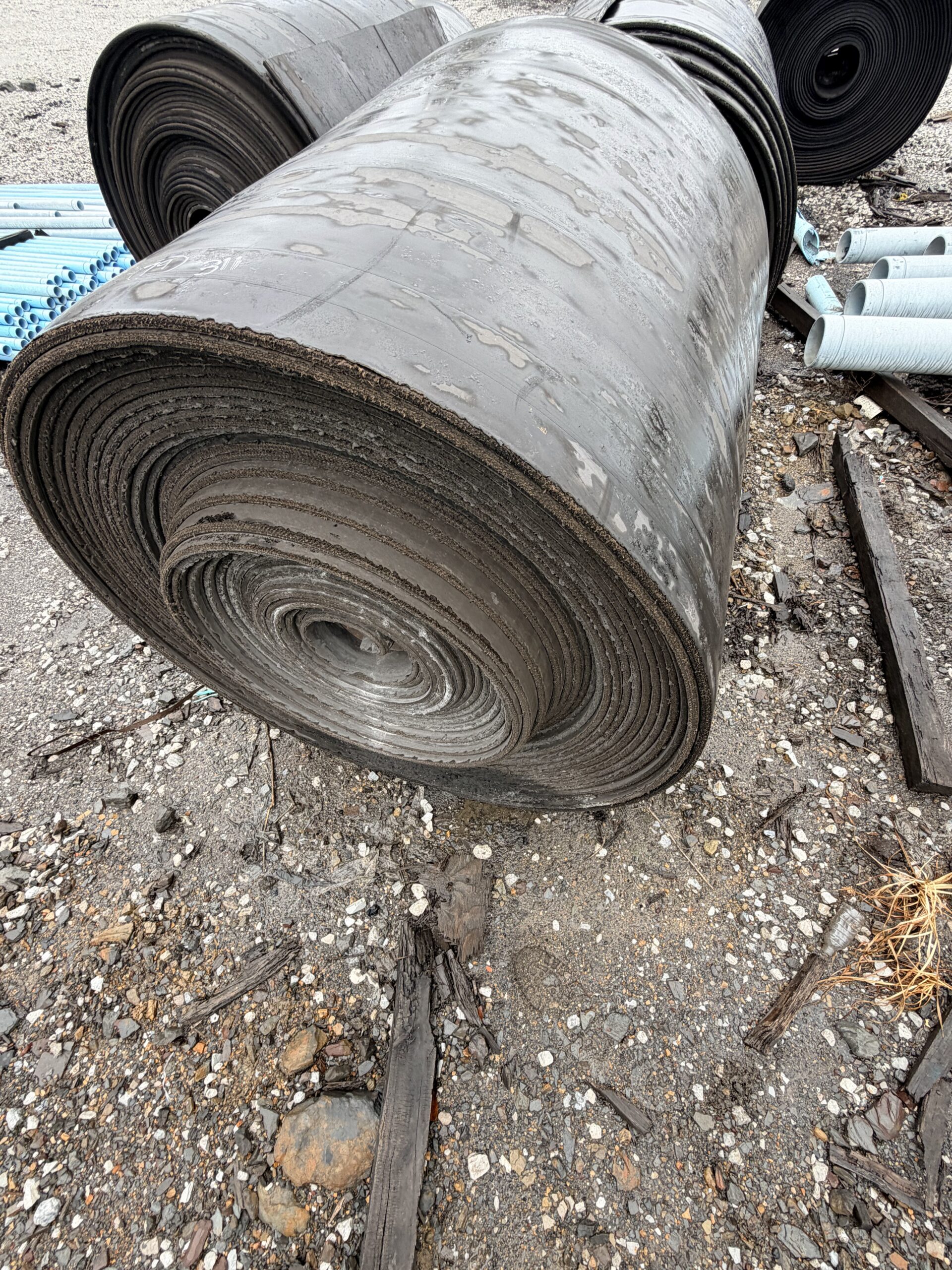

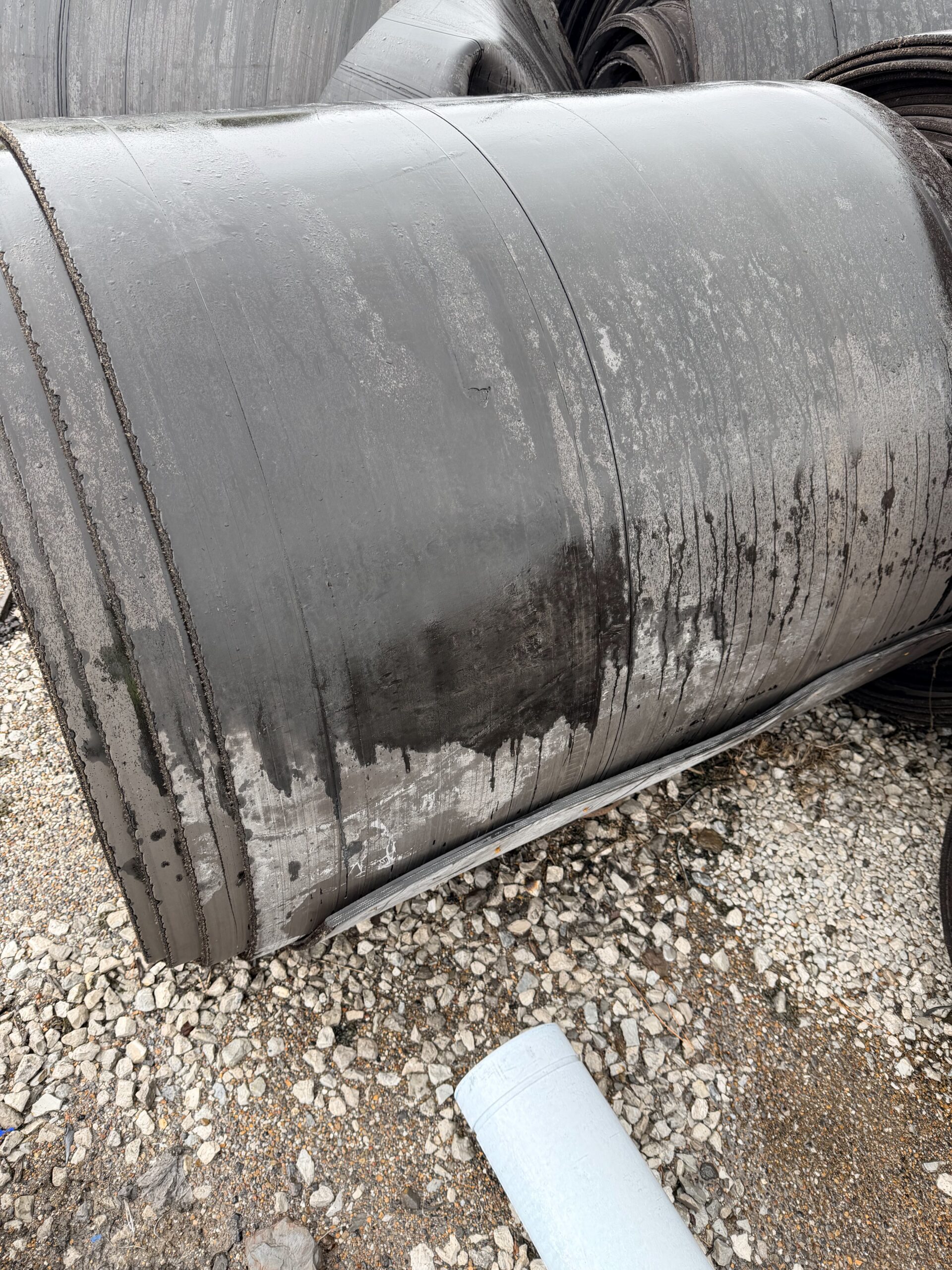

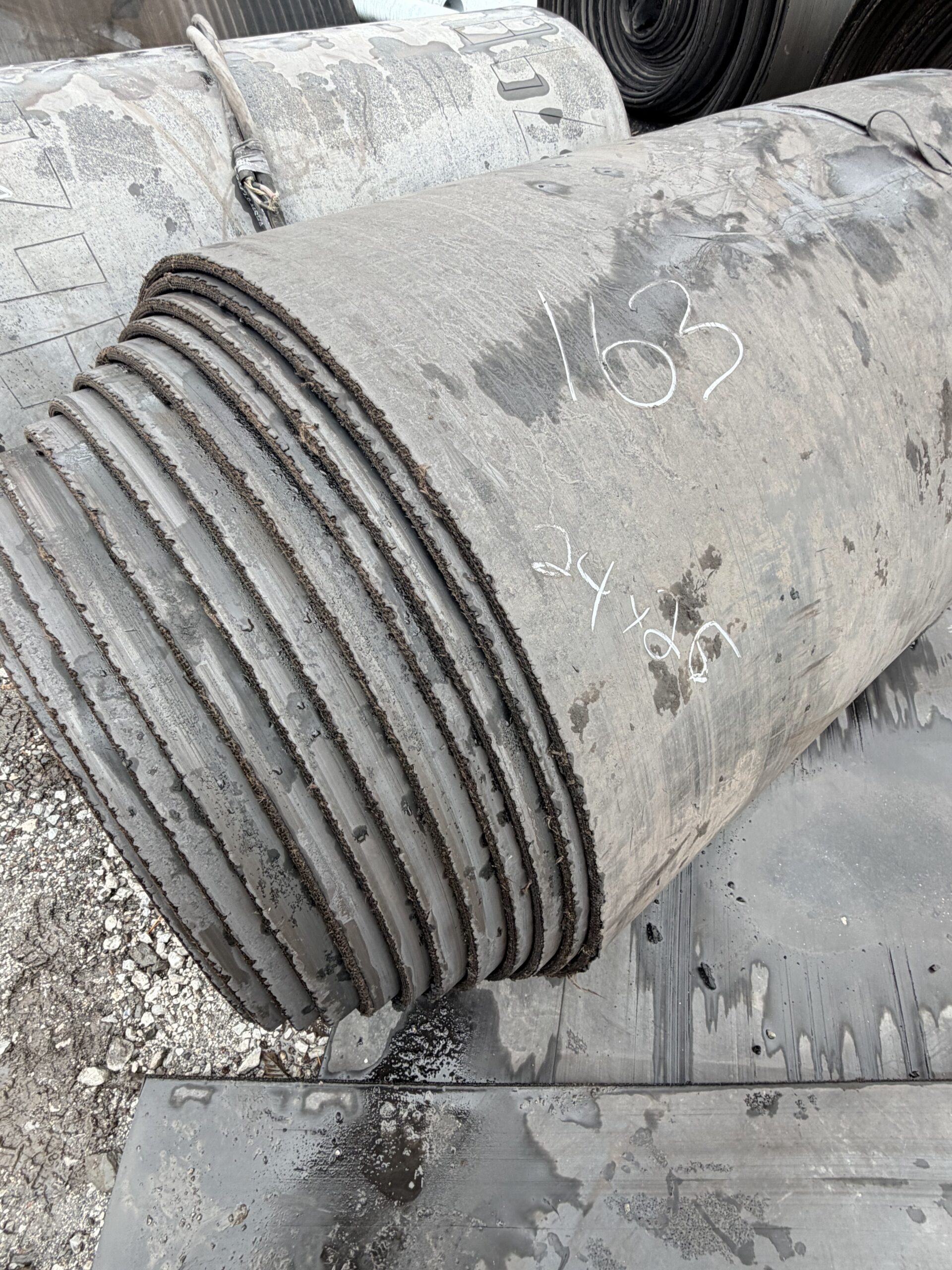

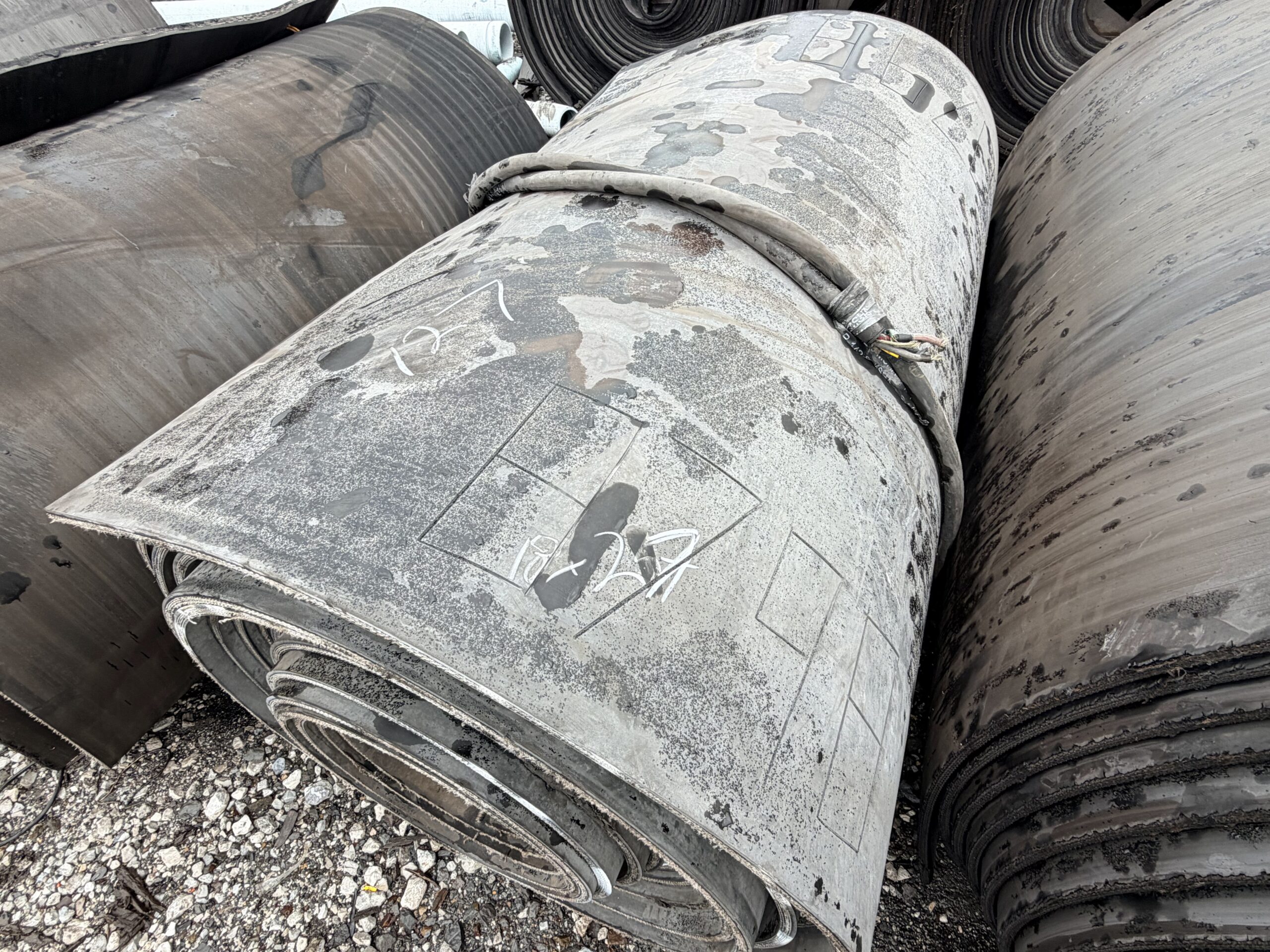

Mine Liquidators currently has 80 rolls available, with lengths ranging from approximately 50 ft to 333 ft.

Total Length Available:
Approximately 15,000+ feet of conveyor belt

Roll lengths include:

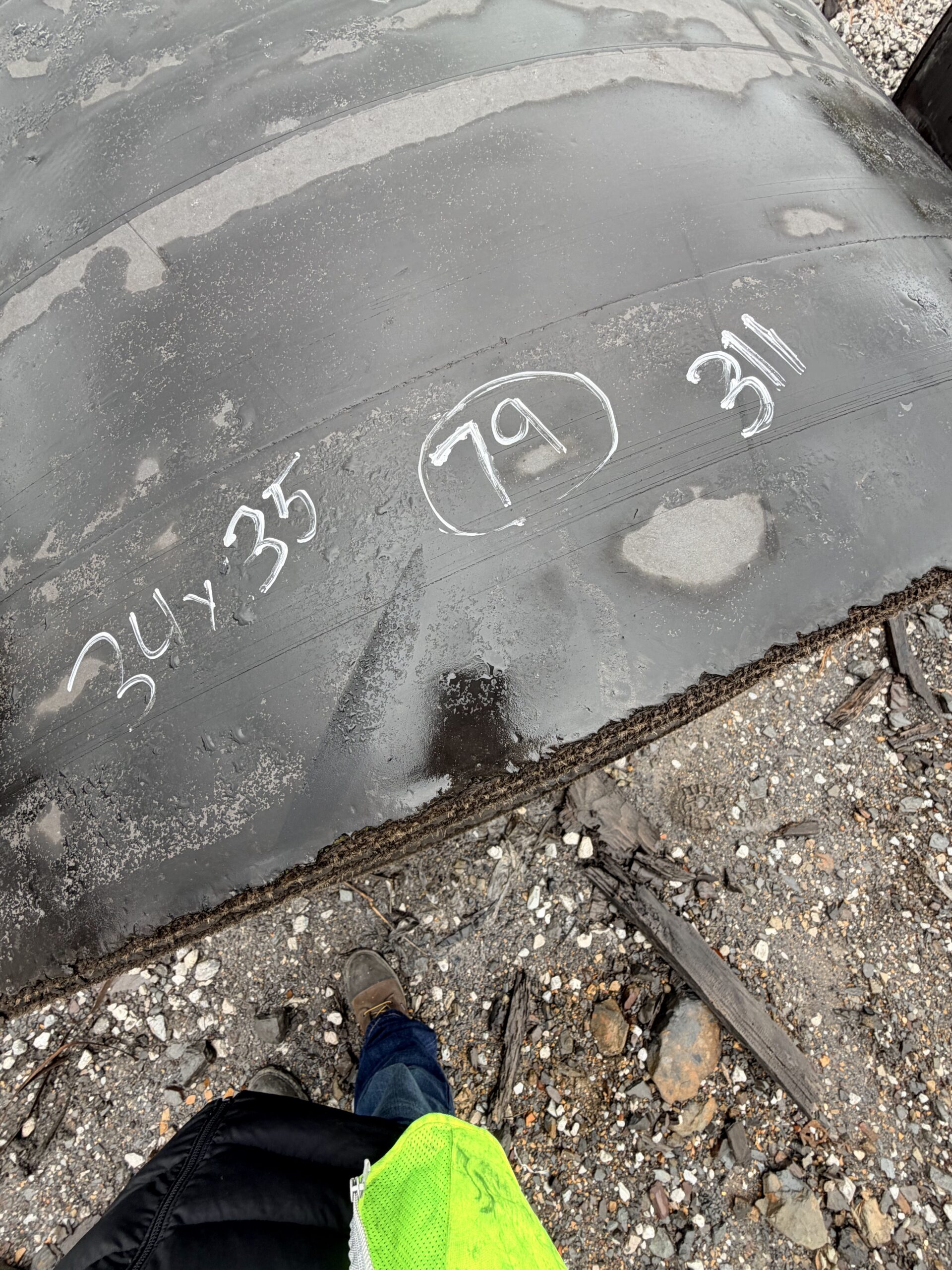

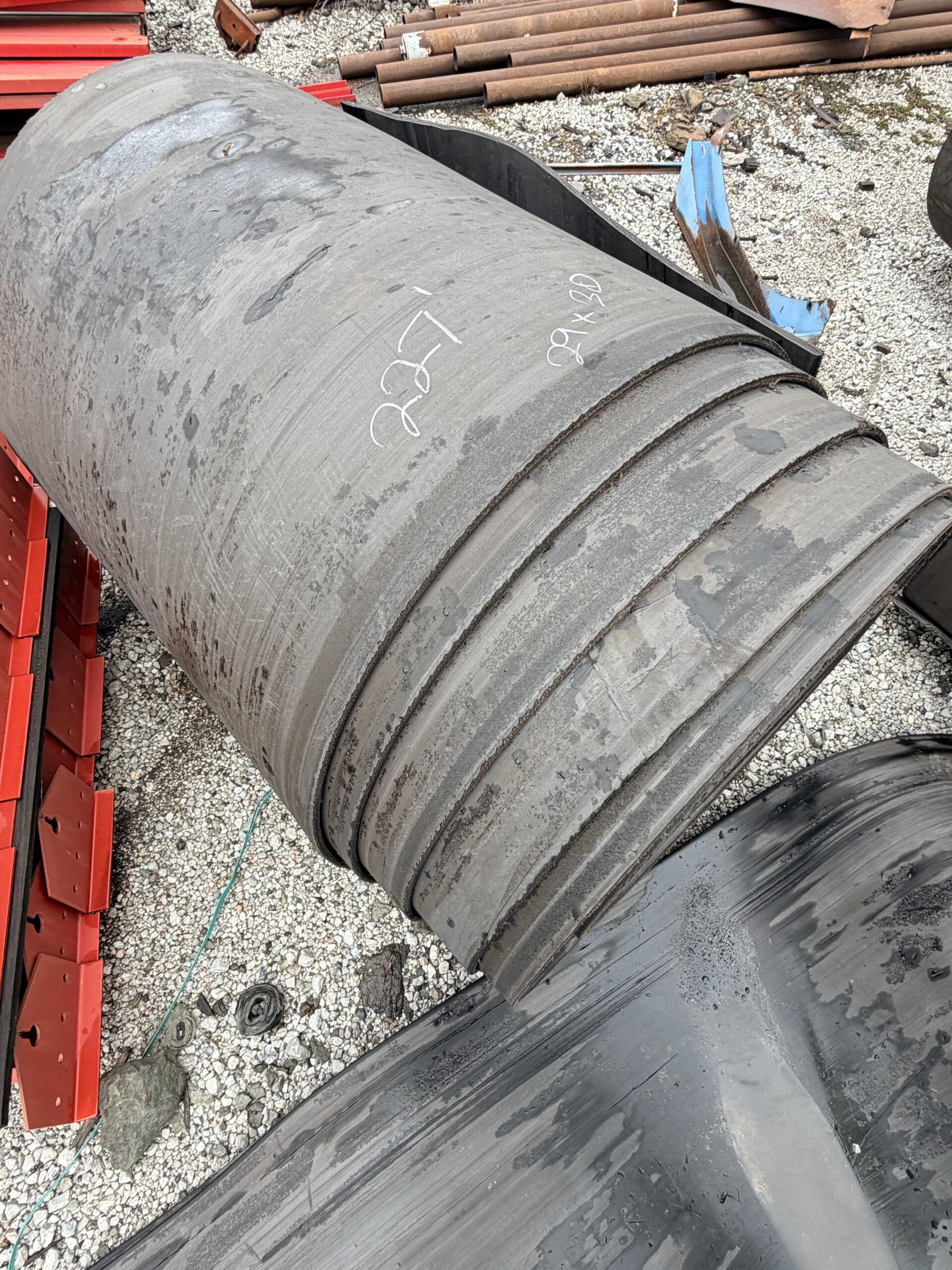

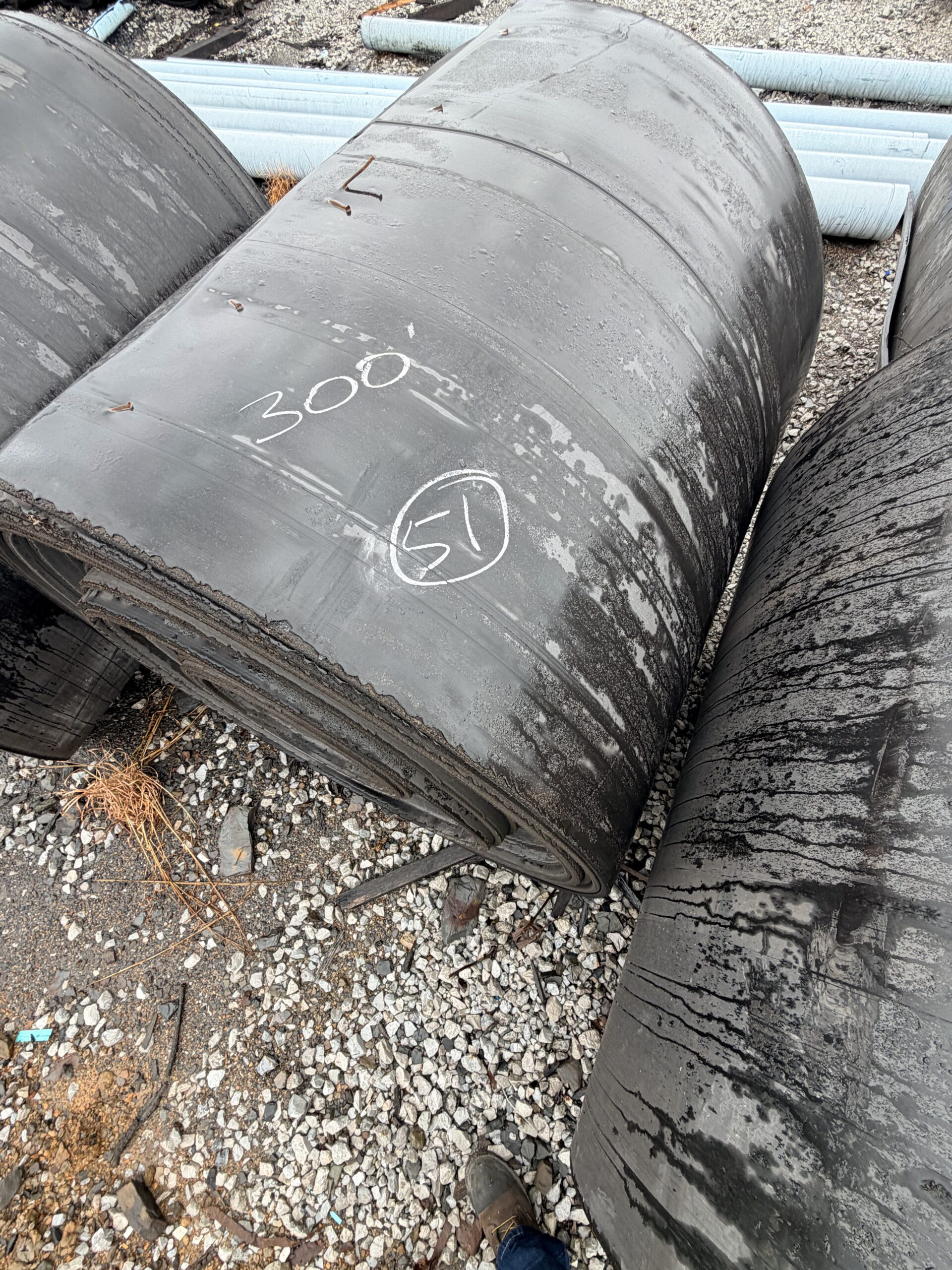

78’, 220’, 142’, 243’, 227’, 276’, 251’, 239’, 224’, 276’, 276’, 212’, 302’, 268’, 329’, 297’, 220’, 212’, 311’, 302’, 302’, 280’, 302’, 276’, 268’, 311’, 320’, 307’, 125’, 235’, 276’, 220’, 259’, 220’, 205’, 210’, 227’, 50’, 220’, 220’, 321’, 205’, 268’, 276’, 300’, 285’, 285’, 307’, 285’, 285’, 300’, 333’, 330’, 285’, 285’, 293’, 311’, 270’, 268’, 268’, 268’, 289’, 160’, 302’, 280’, 290’, 157’, 293’, 293’, 268’, 268’, 302’, 307’, 316’, 298’, 315’, 293’, 302’, 311’, 293’.

Key Advantages

✔ MSHA Part 14 underground approved
✔ High abrasion ARMA TOUGH compound
✔ Designed for demanding underground coal mining applications
✔ Excellent rip and tear resistance
✔ Large quantity available for immediate purchase
✔ Ideal for slope belts and heavy-duty conveying systems

Location & Availability

Inventory available now through Mine Liquidators.

Large quantities available for immediate shipment or pickup.
